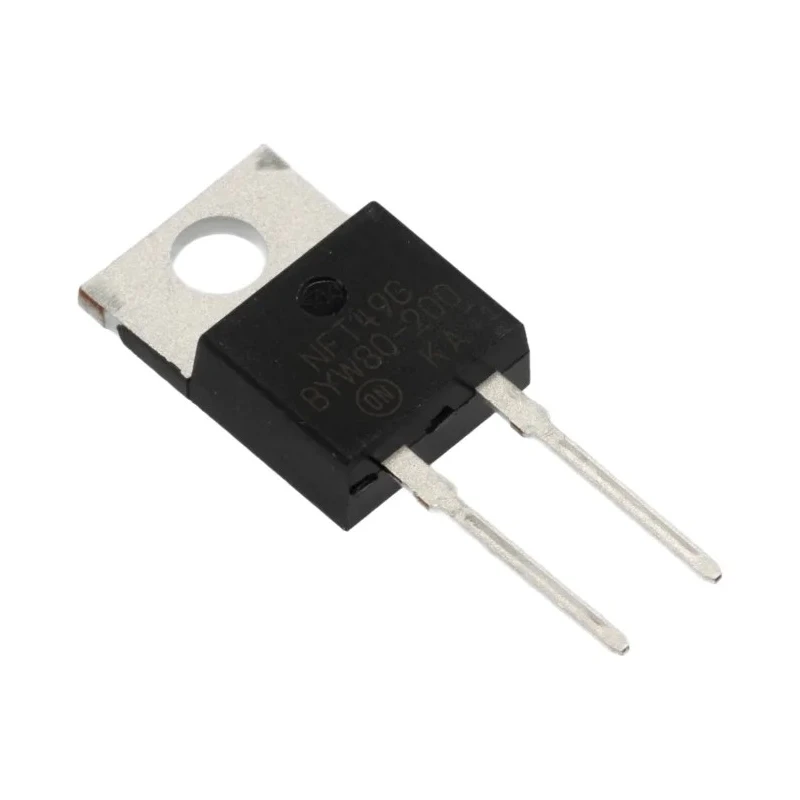

onsemi 200 V 8 A General Purpose Single Diode 2-Pin TO-220AC BYW80-200G

onsemi BYW80-200G is a high-quality general purpose rectifier diode designed for various electronic and industrial applications. It features a single diode configuration and comes housed in a TO-220AC package with a 2-pin layout suitable for through-hole mounting techniques. The device supports a maximum continuous forward current of 8 A and a peak reverse repetitive voltage of 200 V, making it ideal for power conversion, rectification, and protection circuits.

This diode offers a low forward voltage drop of 1.25 V improving overall efficiency and generates minimal heat under load conditions. It operates effectively across a broad temperature range from -65°C to 175°C allowing usage in harsh industrial and automotive environments. The fast recovery time of 35 ns reduces switching losses, enhancing performance in high-frequency circuits.

With a peak non-repetitive forward surge current of 100 A, this diode can withstand transient overloads, protecting sensitive electronics. The compact package dimensions (10.29 mm length, 4.82 mm width, and 9.27 mm height) ensure compatibility with standard power electronic modules and assemblies.

This product comes from Czech Republic and is classified as new, ensuring high reliability and consistent manufacturing standards. onsemi BYW80-200G is suitable for industrial, manufacturing, power supply, and consumer electronics use cases, particularly where robust rectification and switching diode performance is required.

The diode supports a peak reverse current of 10 microamperes. It delivers a maximum forward voltage of 1.25 volts under normal operating conditions. Designed for operation in a temperature range from -65 degrees Celsius to 175 degrees Celsius.

Provides a peak non-repetitive forward surge current capacity of 100 A. Features a fast peak reverse recovery time of 35 nanoseconds for efficient switching. Manufactured in a 2-pin TO-220AC package suitable for through-hole mounting.

Compact body dimensions: length 10.29 mm, width 4.82 mm, height 9.27 mm. Ideal for industrial electronics, power rectification, and protection circuits. Explore more semiconductor components and Schottky diodes on EnvMart to find parts meeting your exact design requirements.
