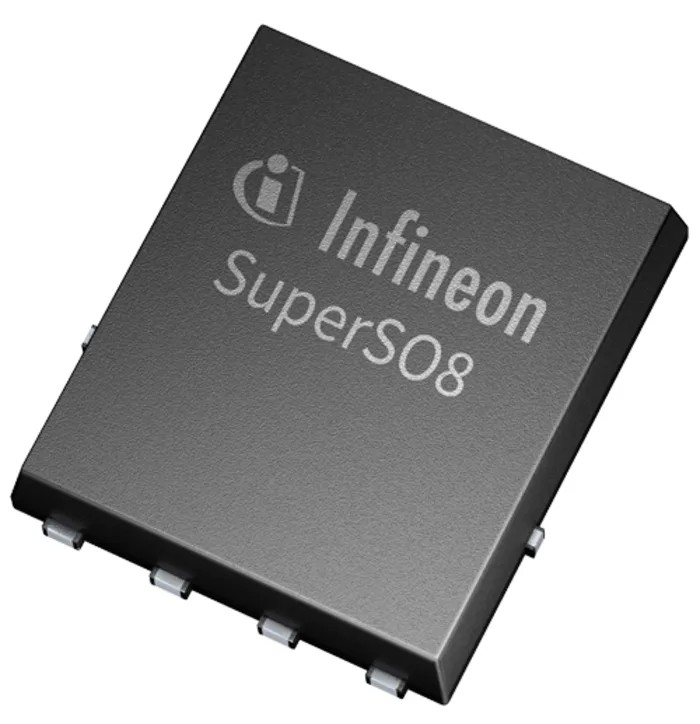

Infineon N-Channel MOSFET, 381 A Continuous Drain Current, 40 V Drain Source Voltage, 0.7mΩ Rds(on), 8-Pin BSC0504NSIATMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon N-Channel MOSFET, 381 A Continuous Drain Current, 40 V Drain Source Voltage, 0.7mΩ Rds(on), 8-Pin BSC0504NSIATMA1

Name: Infineon N-Channel MOSFET, 381 A Continuous Drain Current, 40 V Drain Source Voltage, 0.7mΩ Rds(on), 8-Pin BSC0504NSIATMA1
Brand: Infineon
SKU: 179070
Price: 2.01 USD
Availability: InStock



Category MOSFET Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Model	BSC0504NSIATMA1
Mount Type	Surface
Series	BSC
Maximum Operating Temperature	+150°C
Package Type	SuperSO8 5 x 6
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	8
Channel Type	N
Maximum Continuous Drain Current Id	381A
Maximum Drain Source Voltage Vds	40V
Maximum Drain Source Resistance Rds	0.7mΩ
Channel Mode	N
Maximum Power Dissipation Pd	81W
Typical Gate Charge Qg @ Vgs	80nC
Maximum Gate Source Voltage Vgs	20V
Forward Voltage Vf	1V

Key Features

Maximum continuous drain current of 381 A for high power handling.
Drain-source voltage rating of 40 V suitable for low-voltage switching.
Low on-resistance of 0.7 milliohms to minimize conduction losses.
Surface-mount 8-pin SuperSO8 package with 5 x 6 mm footprint.
Power dissipation capability up to 81 W for heavy-duty operation.
Typical gate charge of 80 nC ensuring predictable switching performance.
Gate-source voltage tolerance of ±20 V for robust drive margins.
Operating temperature range from -55°C to +150°C suitable for industrial environments.

Product Description

Infineon BSC0504NSIATMA1 is a surface-mount N-channel power MOSFET designed for efficient high-current switching in low-voltage systems. With an impressive maximum continuous drain current of 381 A and a drain-source voltage rating of 40 V, it supports demanding power applications across a wide temperature range from -55°C to +150°C.

This MOSFET comes in a compact 8-pin SuperSO8 package with a 5 x 6 mm footprint, optimized for surface mounting on PCBs. Featuring a low on-resistance of just 0.7 milliohms, it minimizes conduction losses and improves overall system efficiency.

The device exhibits a typical gate charge of 80 nC, enabling predictable and efficient switching transitions. It tolerates gate-source voltages up to ±20 V, ensuring robust drive margins for reliable operation in harsh conditions.

Power dissipation capability is rated at 81 W, allowing for heavy-duty operation in industrial, laboratory, telecommunications, and computing power supply applications. The MOSFET is RoHS compliant, affirming environmentally responsible manufacturing practices.

Typical applications include synchronous rectification in power supplies, low-voltage DC-DC converters, high-current motor drive stages, server power distribution modules, and compact surface-mount power assemblies. It is well-suited for use in industrial, laboratory, and commercial electronic systems requiring efficient, high-current switching.

Maximum continuous drain current of 381 A for high power handling. Drain-source voltage rating of 40 V for low-voltage switching. Low on-resistance of 0.7 milliohms to reduce conduction losses. Compact 8-pin SuperSO8 package for surface mount applications.

Power dissipation rating of 81 W for demanding operations. Typical gate charge of 80 nC for efficient switching control. Gate tolerance of ±20 V for robust drive. Operating temperature from -55°C to +150°C for wide environmental range.

RoHS compliant for environmental safety. Ideal for DC-DC converters, power supplies, motor drives, and server power modules. Discover this high-performance MOSFET and explore related electronic components at EnvMart for your industrial and commercial electronic design projects.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum continuous drain current of this MOSFET is 381 A, making it suitable for high power handling applications.

This model has a drain-source voltage rating of 40 V, which is suitable for low-voltage switching applications.

The on-resistance of this MOSFET is 0.7 milliohms, which helps minimize conduction losses.

It has a power dissipation capability of up to 81 W, allowing for heavy-duty operation in demanding applications.

The typical gate charge for this model is 80 nC, ensuring predictable switching performance.

This device operates within a temperature range of -55°C to +150°C, making it suitable for industrial environments.

It comes in a compact 8-pin SuperSO8 package with a footprint of 5 x 6 mm, optimized for surface mounting.

The maximum gate-source voltage tolerance for this model is ±20 V, providing robust drive margins for reliable operation.

This MOSFET is suitable for applications such as synchronous rectification in power supplies, low-voltage DC-DC converters, and high-current motor drive stages.

Yes, this MOSFET is RoHS compliant, affirming environmentally responsible manufacturing practices.

The channel type of this MOSFET is N-channel, which is commonly used for high-current switching applications.

The forward voltage of this MOSFET is 1 V, which is relevant for its switching characteristics.
