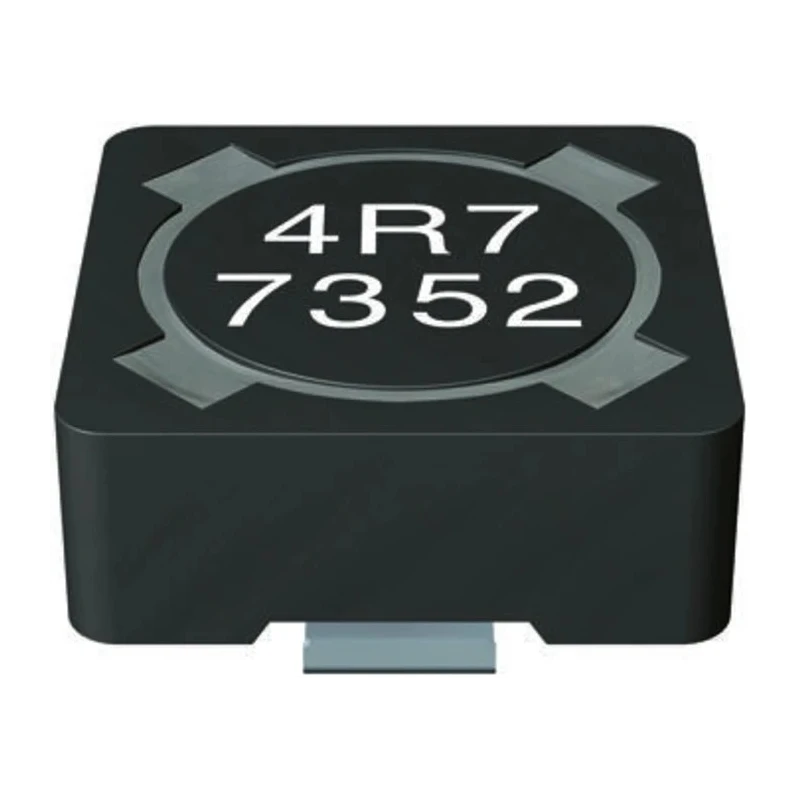

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7μH ±20% 2.3A Idc B82472G4472M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3.3mm |
| Length | 7.3mm |
| Model | B82472G4472M000 |
| Depth | 7.3mm |
| Series | B82472-G4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 2.3A |
| Maximum DC Resistance | 43mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Soldered |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Magnetically shielded ferrite core ensures minimal interference.
- Wirewound construction provides stable inductance values.
- Compact surface mount design with 7.3mm length and 3.3mm height.
- Meets automotive AEC-Q200 standard for reliability.
- Operating temperature range from -55°C to 125°C ensures durability.
- Maximum DC resistance of 43mΩ reduces energy losses.
- Soldered termination style for secure PCB mounting.
- RoHS compliant and lead-free tinned terminals.
Product Description
TDK B82472G4472M000 is a shielded wirewound Surface Mount Inductor featuring a ferrite core and enamel copper wire winding, designed for efficient filtering of supply voltages and DC-DC converter applications. This component is suitable for automotive electronics and other industrial uses requiring reliable inductors with stable electrical characteristics.

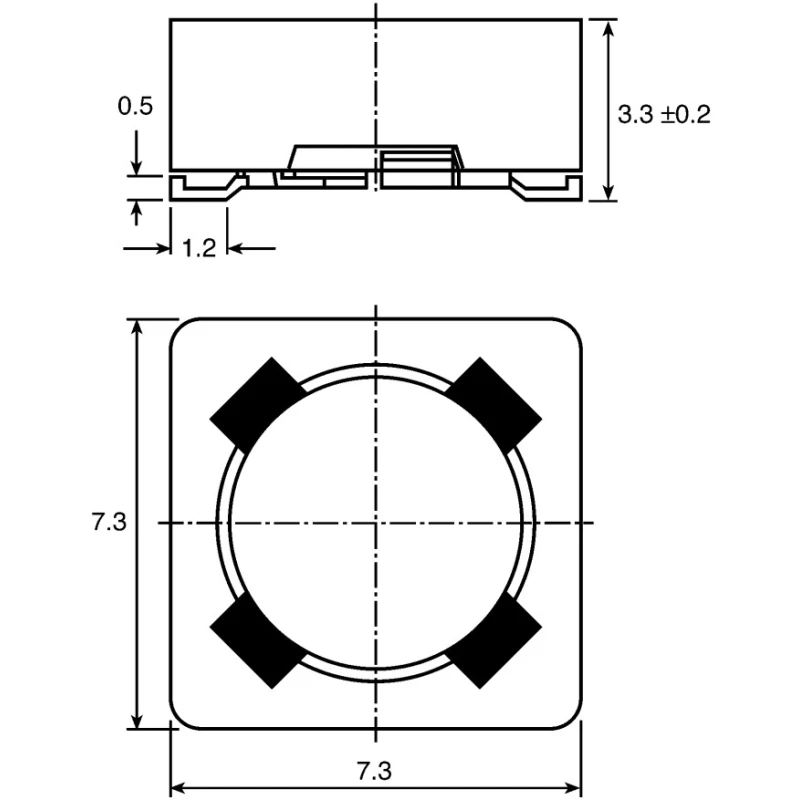

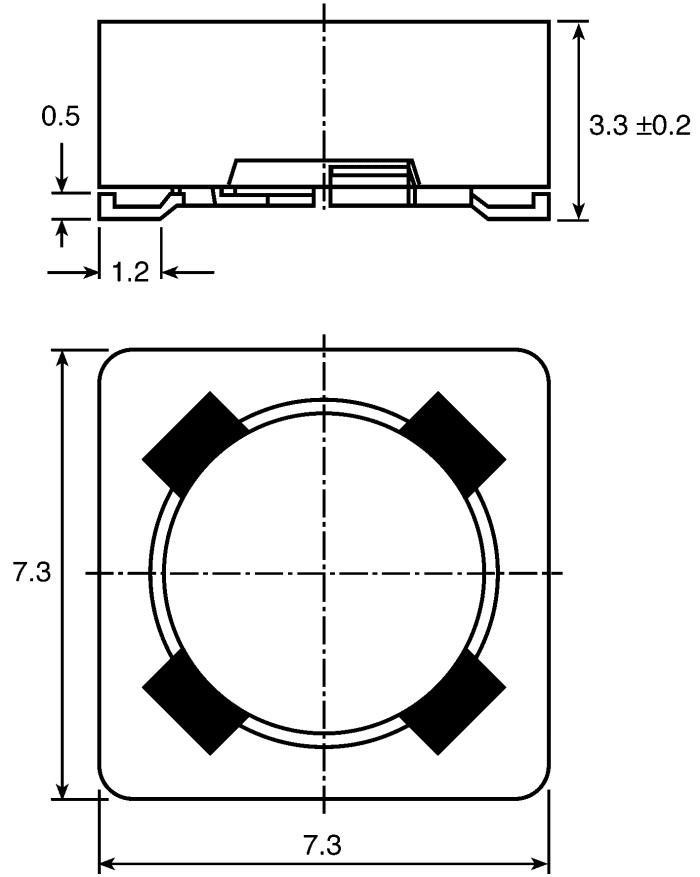

The inductor has an inductance of 4.7μH with ±20% tolerance and supports a maximum DC current of 2.3A. Its compact dimensions include a length and depth of 7.3mm and a height of 3.3mm, making it ideal for space-constrained surface mount technology applications.
The series B82472-G4 ensures magnetically shielded performance to minimize electromagnetic interference. It complies with automotive standard AEC-Q200 and RoHS regulations, featuring lead-free soldered terminals for environmental safety.
The maximum DC resistance is limited to 43mΩ, optimizing efficiency in power filtering circuits. Its operating temperature range spans from -55°C to 125°C, suitable for harsh industrial and automotive environments.
Magnetically shielded ferrite core reduces interference. Wirewound construction guarantees stable inductance. Compact SMT package with 7.3mm length and 3.3mm height. Compliant with AEC-Q200 automotive quality standards. Wide operating temperature range from -55°C to 125°C.
Maximum DC resistance of 43mΩ for efficiency. Soldered terminals for robust PCB connection. RoHS and lead-free compliant manufacturing.
This inductor is well suited to industrial, automotive, manufacturing, and electronics assembly applications where reliable magnetic shielding and performance stability are required. EnvMart offers this high-quality TDK component for engineers and technicians aiming for robust circuit designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 4.7μH with a tolerance of ±20%.
It supports a maximum DC current of 2.3A.
The inductor has a length and depth of 7.3mm and a height of 3.3mm.
The maximum DC resistance is 43mΩ, which helps reduce energy losses.
It operates within a temperature range of -55°C to 125°C.
It features a wirewound construction, which provides stable inductance values.
Yes, it complies with the AEC-Q200 automotive standard for reliability.
The core material is ferrite, which contributes to its magnetic shielding capabilities.
It uses a soldered termination style for secure PCB mounting.
Yes, it is RoHS compliant, featuring lead-free tinned terminals.
It is suitable for automotive electronics and other industrial applications requiring reliable inductors.
This model belongs to the B82472-G4 series.
