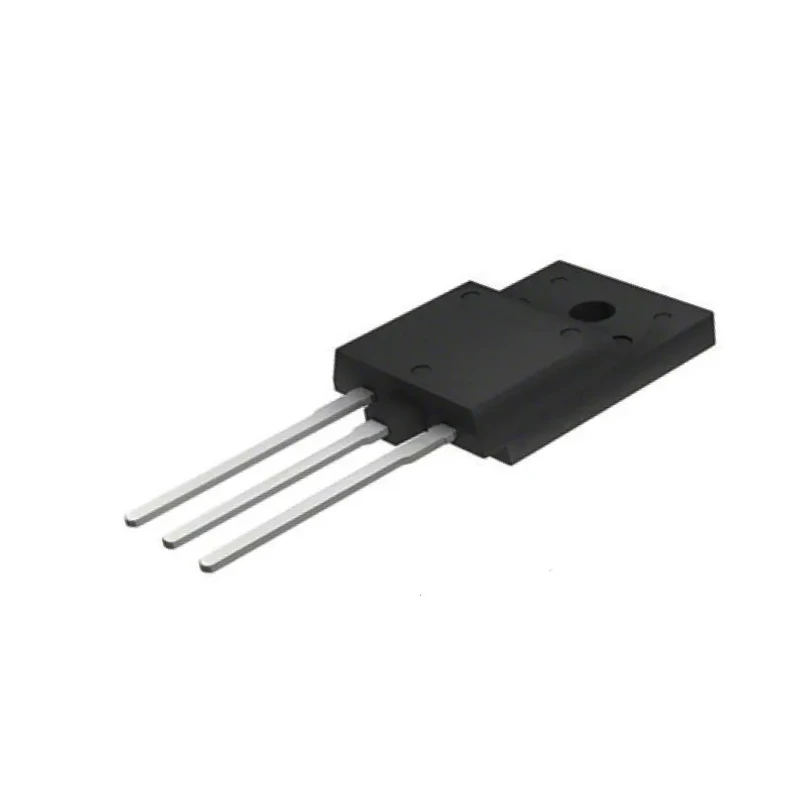

Vishay 600 V 30 A Rectifier & Schottky Diode General Purpose TO-3PF VS-AZH3106FP-M3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-AZH3106FP-M3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-3PF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Common Anode |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 1.4V |
Key Features
- Supports maximum continuous forward current of 30 A.
- Peak reverse repetitive voltage up to 600 V.
- Designed with hyperfast soft recovery time to minimize switching losses.
- Operates reliably in temperature range from -55°C to 175°C.
- Maximum forward voltage drop of 1.4 V ensures efficient rectification.
- Peak non-repetitive forward surge current capacity of 280 A.
- Fully compliant with RoHS and automotive standard AEC-Q101.
- Common anode diode configuration suitable for various power applications.
Product Description
Vishay VS-AZH3106FP-M3 Rectifier & Schottky Diode is a high-performance semiconductor device designed for general purpose rectification in power electronics. Packaged in a TO-3PF surface mount type, it offers a maximum continuous forward current rating of 30 A and a peak reverse repetitive voltage of 600 V.
This diode features a hyperfast soft recovery time, reducing switching losses and improving efficiency in switch mode power supplies, inverters, UPS systems, and motor drives. The maximum forward voltage drop is 1.4 V, contributing to low power dissipation and enhanced reliability.
Engineered to operate across a wide temperature range from -55°C up to 175°C, the device supports robust performance in harsh industrial environments. Its peak non-repetitive forward surge current rating of 280 A ensures safe handling of transient current spikes.
Designed with a common anode diode configuration and included in the FRED Pt series, it is suitable for the power factor correction (PFC) boost stage within AC/DC converters.
The device is fully RoHS compliant and meets automotive standard AEC-Q101, ensuring compatibility for automotive and industrial applications. The fully isolated TO-3PF package provides an insulation voltage of 2500 VRMS for enhanced safety and ease of integration.
Supports maximum continuous forward current of 30 A. Peak reverse repetitive voltage up to 600 V. Hyperfast soft recovery time minimizes switching losses. Wide operating temperature range from -55°C to 175°C. Maximum forward voltage drop of 1.4 V for efficient operation.
High peak forward surge current capability of 280 A. Meets RoHS and AEC-Q101 automotive standards. Surface mount TO-3PF package with full isolation (VINS = 2500 VRMS).
This diode is ideal for use in industrial, automotive, HVAC systems, uninterruptible power supplies, and manufacturing equipment requiring reliable and efficient rectification. For enhanced design and implementation, component datasheets and technical documents are available to support electrical and mechanical integration.
Explore the Vishay range and other semiconductor components for your power conversion and electronic circuit needs on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for this model is 30 A.
It operates reliably in a temperature range from -55°C to 175°C.
The maximum forward voltage drop is 1.4 V, which ensures efficient rectification.
The peak non-repetitive forward surge current capacity is 280 A.
It features a common anode diode configuration suitable for various power applications.
This diode is packaged in a TO-3PF surface mount type.
Yes, it is fully compliant with RoHS and meets the automotive standard AEC-Q101.
It belongs to the FRED Pt series of diodes.
This model is suitable for use in industrial, automotive, HVAC systems, uninterruptible power supplies, and manufacturing equipment.
The fully isolated TO-3PF package provides an insulation voltage of 2500 VRMS.
The country of origin for this diode is India.
