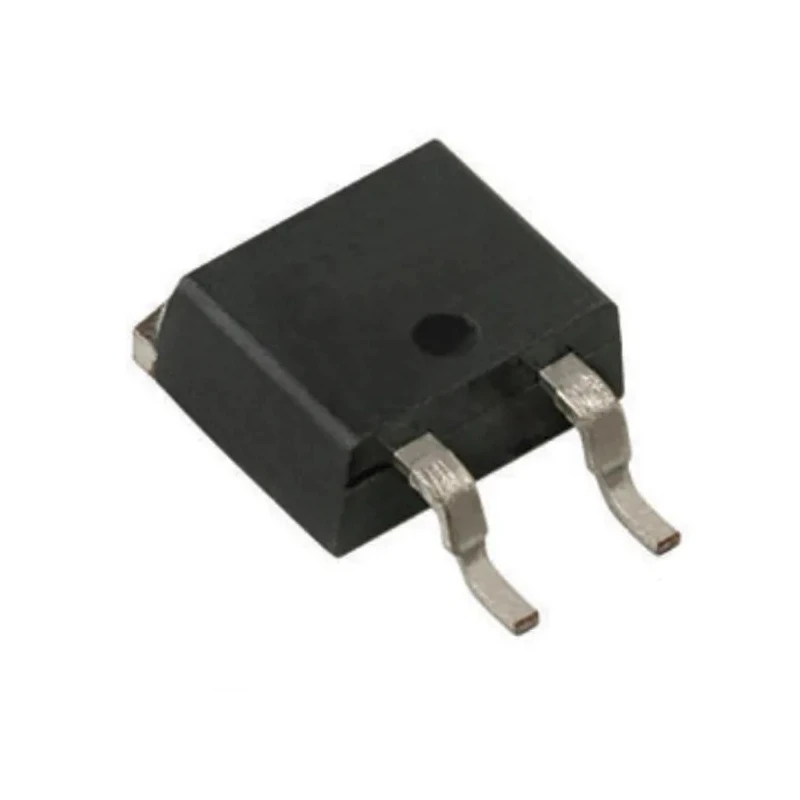

Vishay 1200 V 15 A Surface Mount General Purpose Rectifier & Schottky Diode TO-263 Package VS-E5TH1512S2LHM3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-E5TH1512S2LHM3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 125A |
| Maximum Forward Voltage Vf | 1.7V |
Key Features
- Features a low conduction and switching loss design for efficient power conversion.
- Optimized for high-speed operation with 175°C maximum junction temperature.
- Meets automotive standard AEC-Q101 and RoHS compliance for reliability and environmental safety.
- Ideal for EV and HEV battery charging stations, solar inverters, UPS systems, and booster stages.
- Polyimide passivation ensures durable performance under harsh conditions.
- Capable of handling peak surge currents up to 125 A.
- Single diode configuration in a compact TO-263 surface mount package.
- Best-in-class forward voltage drop of 1.7 V enhances efficiency.
Product Description
Vishay VS-E5TH1512S2LHM3 is a high-performance 1200 V, 15 A surface mount general purpose rectifier and Schottky Diode designed for demanding industrial and automotive applications. Packaged in the TO-263 form factor, this diode is well-suited for high-frequency converter designs, offering an excellent trade-off between forward voltage drop and switching losses.
The diode supports a maximum continuous forward current of 15 A and can withstand peak surge currents up to 125 A, ensuring reliability during transient load conditions. Its rugged construction with polyimide passivation and qualification to automotive standard AEC-Q101 ensures robust operation in harsh environments and long service life.
This device is optimized for use in power factor correction (PFC) circuits, output rectification stages in electric vehicle (EV) and hybrid electric vehicle (HEV) battery charging stations, booster stages in solar inverter systems, and uninterruptible power supplies (UPS). Its ability to operate at junction temperatures up to 175 °C means it can sustain high thermal stresses common in industrial environments.
Key technical advantages include its hyperfast switching capability, reduced conduction losses, and compatibility with MOSFETs and high-speed IGBTs. These features make the VS-E5TH1512S2LHM3 an efficient solution to improve power conversion efficiency while maintaining reliable performance.
Features a low conduction and switching loss design for efficient power conversion. Optimized for high-speed operation with 175°C maximum junction temperature. Meets automotive standard AEC-Q101 and RoHS compliance for reliability and environmental safety.
Ideal for EV and HEV battery charging stations, solar inverters, UPS systems, and booster stages. Polyimide passivation ensures durable performance under harsh conditions. Capable of handling peak surge currents up to 125 A.
Single diode configuration in a compact TO-263 surface mount package. Best-in-class forward voltage drop of 1.7 V enhances efficiency.
This Vishay rectifier diode is a reliable choice for industrial, automotive, renewable energy, and power supply applications where performance and durability are critical. To explore more products from Vishay or other semiconductor devices, browse the Semiconductors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 15 A.
This diode has a peak reverse repetitive voltage rating of 1200 V.
The maximum operating temperature for the VS-E5TH1512S2LHM3 is 175°C.
It is packaged in a TO-263 surface mount configuration.
The best-in-class forward voltage drop for this diode is 1.7 V.
This model can handle a peak non-repetitive forward surge current of up to 125 A.
Yes, it meets the automotive standard AEC-Q101.
The diode operates within a temperature range of -55°C to 175°C.
It is ideal for applications such as EV and HEV battery charging stations, solar inverters, and UPS systems.
It features polyimide passivation, which ensures durable performance under harsh conditions.
This model is classified as a general-purpose rectifier.
The hyperfast switching capability enhances efficiency by reducing switching losses in high-frequency applications.
