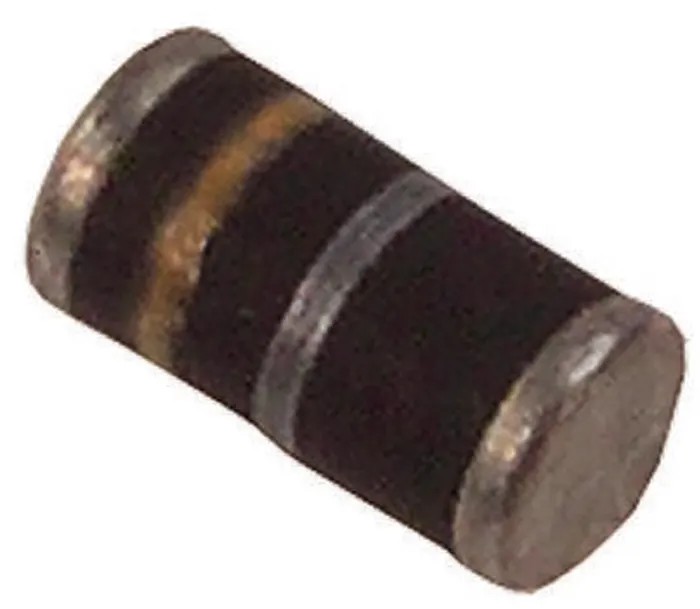

Vishay General Purpose Diode 400 V 1 A Surface Mount DO-213AB BYM10-400-E3/96
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.67mm |
| Brand | Vishay |
| Height | 2.67mm |
| Length | 5.2mm |
| Model | BYM10-400-E3/96 |
| Width | 2.67mm |
| Mount Type | Surface |
| Series | BYM10-xxx |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-213AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
Key Features
- Surface mount diode designed for standard recovery applications.
- Single diode configuration with 2 pins in DO-213AB package.
- Maximum forward voltage drop of 1.1 V ensures efficient conduction.
- Wide operating temperature range from -65°C to 175°C for reliable performance.
- Peak non-repetitive surge current rating of 30 A for transient handling.
- Very low peak reverse current of 10 μA reduces leakage losses.
- Meets industry standards for general purpose rectifiers without automotive certification.
- Suitable for use in power supply rectification, voltage clamping, and freewheeling applications.
Product Description
Vishay BYM10-400-E3/96 General Purpose Diode is a reliable semiconductor device designed for rectification and protection in electronic circuits. This diode supports a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 400 V, packaged in an industry-standard DO-213AB surface mount style.
The device features a single diode configuration with 2 pins, optimized for efficient conduction at a maximum forward voltage of 1.1 V. It operates effectively across a broad temperature range from -65°C to 175°C, making it suitable for harsh industrial environments.
With a peak non-repetitive forward surge current of 30 A, it can handle transient current spikes without damage. Its low peak reverse current of just 10 μA minimizes leakage, enhancing circuit efficiency.
The compact package dimensions of 5.2 mm length and 2.67 mm diameter allow integration in space-constrained assemblies. This diode is ideal for use in power supplies, voltage regulation circuits, freewheeling diodes in motors, and general rectification tasks across industrial, electronic components, and discrete semiconductor applications.
Surface mount general purpose diode for rectification applications. 1 A forward current rating with robust voltage handling. Wide operating temperature for industrial use. Standard recovery diode suitable for many circuit designs.
Compact DO-213AB package dimensions support dense PCB layouts. Low reverse leakage current enhances efficiency. High surge withstand capability protects against spikes. Long-lasting and reliable operation guaranteed by Vishay quality.
Compatible with automated PCB assembly processes due to reel packaging.
This Vishay diode BYM10-400-E3/96 answers the needs of engineers designing power regulation and protection circuits in electronics manufacturing and automotive applications where standard rectifiers are required. Explore more components from Vishay and enhance your industrial semiconductor solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 1 A.
This model has a peak reverse repetitive voltage of 400 V.
The maximum forward voltage drop is 1.1 V, ensuring efficient conduction.
It operates effectively within a temperature range from -65°C to 175°C.
The peak non-repetitive forward surge current rating is 30 A.
The peak reverse current is 10 μA, which helps reduce leakage losses.
This diode features a single diode configuration with 2 pins.
The dimensions of the DO-213AB package are 5.2 mm in length and 2.67 mm in diameter.
It is suitable for power supply rectification, voltage clamping, and freewheeling applications.
This model is designed for surface mounting.
This diode belongs to the BYM10-xxx series.
The country of origin for this diode is India.
