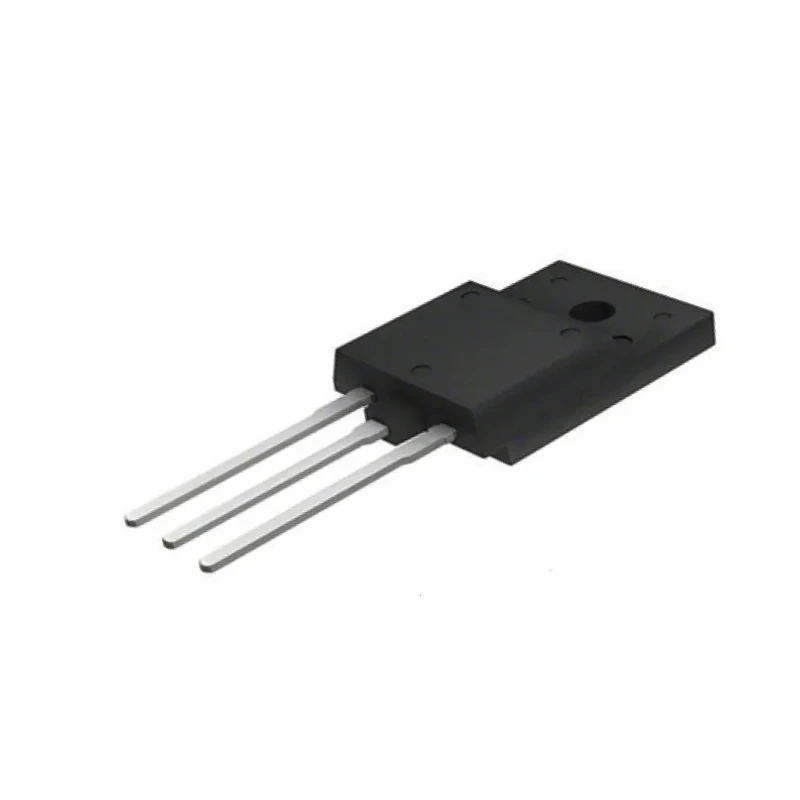

Vishay 600 V 30 A General Purpose Rectifier & Schottky Diode Surface Mount TO-3PF VS-AZH3106FP-M3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-AZH3106FP-M3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-3PF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Common Anode |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 1.4V |
Key Features
- Offers hyperfast soft recovery time reducing switching losses.
- Features low forward voltage drop of 1.4 V for efficient conduction.
- Operates at junction temperatures up to 175°C ensuring high reliability.
- Comes in fully isolated TO-3PF package with 2500 VRMS isolation voltage.
- Suitable for PFC boost stages, AC/DC switch mode power supplies, and inverters.
- Low leakage current minimizes power dissipation in high frequency applications.
- Meets RoHS and AEC-Q101 automotive standards.
- Designed with planar structure and platinum doped lifetime control for ruggedness.
Product Description
Vishay VS-AZH3106FP-M3 is a high performance General Purpose Rectifier and Schottky Diode designed for power and electronic applications requiring 600 V peak reverse voltage and 30 A maximum continuous forward current. Packaged in a surface mount TO-3PF case, it supports harsh industrial and automotive conditions with junction temperatures up to 175°C.
The device features hyperfast soft recovery characteristics, which contribute to minimal switching losses and reduced stress on switching elements and snubbers. Its low forward voltage drop of 1.4 V improves conduction efficiency, making it ideal for power factor correction (PFC) boost stages, AC/DC sections of switch mode power supplies, UPS systems, motor drives, and inverters used in air conditioning and high frequency welding applications.
The diode's planar structure and platinum doped lifetime control ensure outstanding ruggedness and reliability, while the fully isolated package supports an isolation voltage of 2500 VRMS, enhancing user safety and system integration. Low leakage current further reduces power dissipation during operation, optimizing performance in demanding environments.
Compliance with RoHS and automotive AEC-Q101 standards guarantees suitability for automotive and various industrial uses. This device is engineered for long service life and effective thermal management, delivering trusted performance across a wide temperature range from -55°C to 175°C.
Hyperfast soft recovery time reduces switching losses. Low forward voltage drop of 1.4 V for efficient conduction. High operating junction temperature up to 175°C for reliability. Fully isolated TO-3PF package with 2500 VRMS isolation.
Low leakage current minimizes power dissipation. Designed with advanced planar structure and lifetime control. Conforms to RoHS and AEC-Q101 automotive standards. Ideal for PFC boost, SMPS, inverters, UPS, and motor drive applications.
This Vishay Schottky diode is a versatile component in electronic and power conversion assemblies, suitable for use in industrial, automotive, and laboratory equipment. Explore the EnvMart collection for reliable semiconductor solutions including rectifier diodes, Schottky diodes, and other discrete components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 30 A.
The peak reverse repetitive voltage rating is 600 V.
The forward voltage drop is 1.4 V, which contributes to efficient conduction.
The operating temperature range is from -55°C to 175°C.
It comes in a fully isolated TO-3PF package.
It complies with RoHS and AEC-Q101 automotive standards.
The peak non-repetitive forward surge current is rated at 280 A.
This model is suitable for power factor correction (PFC) boost stages, AC/DC switch mode power supplies, inverters, and UPS systems.
The diode configuration is common anode.
It features hyperfast soft recovery characteristics and a planar structure with platinum doped lifetime control for enhanced ruggedness and reliability.
The TO-3PF package supports an isolation voltage of 2500 VRMS.
The country of origin for this model is India.
