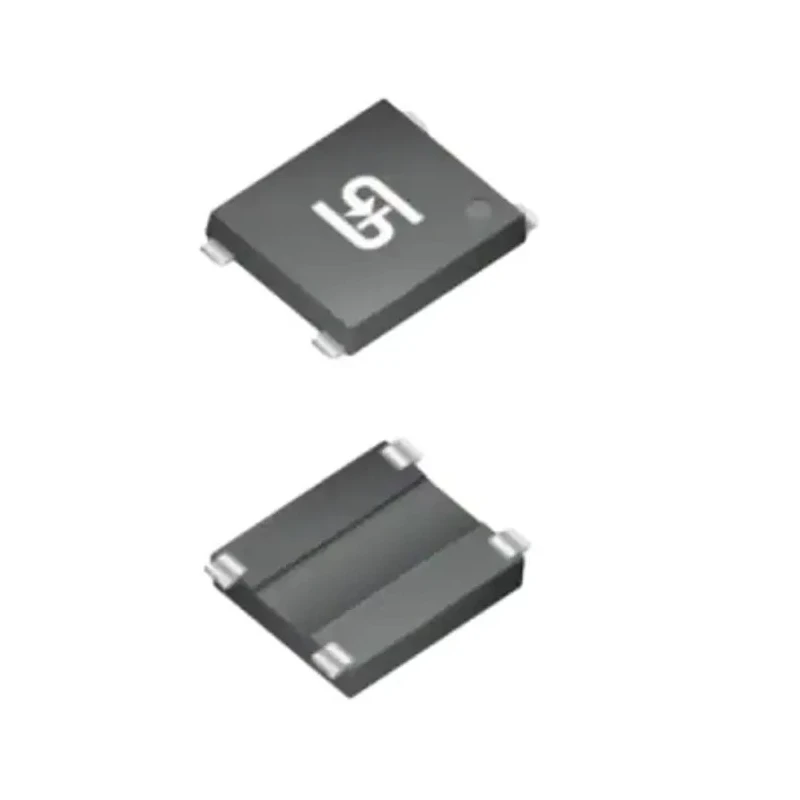

Taiwan Semiconductor Bridge Rectifier 800 V 90 A 4-Pin Quad YBS2206G

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor Bridge Rectifier 800 V 90 A 4-Pin Quad YBS2206G

Name: Taiwan Semiconductor Bridge Rectifier 800 V 90 A 4-Pin Quad YBS2206G
Brand: Taiwan Semiconductor
SKU: 178288
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	8.6mm
Length	6.7mm
Model	YBS2206G
Mount Type	Surface
Series	YBS2200
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	YBS
Minimum Operating Temperature	-55°C
Standards/Approvals	UL, RoHS, IEC 61249-2-21
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	90A
Forward Current If	2.2A
Peak Forward Voltage Vf	0.95V

Key Features

The device offers peak reverse repetitive voltage of 800 V.
Maximum operating temperature is 150°C, ensuring high temperature durability.
Forward current rating is 2.2 A with a peak non-repetitive forward surge current of 90 A.
Surface mount type with YBS package suitable for automated placement in manufacturing.
Features glass passivated chip junction for enhanced reliability.
Moisture sensitivity level 1 conforms to J-STD-020, enabling safe handling and storage.
Compliant with RoHS and halogen-free according to IEC 61249-2-21 environmental standards.
Typical peak forward voltage is 0.95 V, optimizing efficiency in power supply circuits.

Product Description

Taiwan Semiconductor YBS2206G Bridge Rectifier 800 V 90 A is a quad configuration semiconductor device featuring a 4-pin YBS package designed for surface mount applications. It supports peak reverse repetitive voltage of 800 V and a forward current rating of 2.2 A, making it suitable for reliable power rectification in electronic circuits.

This bridge rectifier is equipped with a glass passivated chip junction, which enhances the device's reliability in demanding electrical environments. With a maximum operating temperature of 150°C and minimum operating temperature of -55°C, it performs effectively across wide temperature ranges.

The peak non-repetitive forward surge current of 90 A allows the device to handle transient current spikes, important for applications in switching mode power supplies (SMPS), adapters, and lighting circuits. The device features moisture sensitivity level 1 in accordance with J-STD-020, facilitating automated handling and assembly.

The rectifier complies with RoHS regulations and is halogen-free as per IEC 61249-2-21, supporting environmentally conscious electronic manufacturing. The typical peak forward voltage of 0.95 V contributes to improved efficiency, while the compact size dimensions of length 6.7 mm and height 8.6 mm enable space-saving circuit design.

The device's surface mount package type YBS is optimized for automated placement processes. It offers a 4-pin pin count in a quad configuration. Designed without automotive standard certifications but offers robust power semiconductor characteristics.

The peak reverse current is essentially negligible at 0 μA, contributing to low leakage losses. The series designation is YBS2200, indicating part of the YBS series bridge rectifiers. This Bridge Rectifier is suited for industrial, electronic assembly, power supply, and lighting applications due to its efficient design and robust electrical specifications.

Explore the wider range of semiconductor components at EnvMart for comprehensive solutions.
