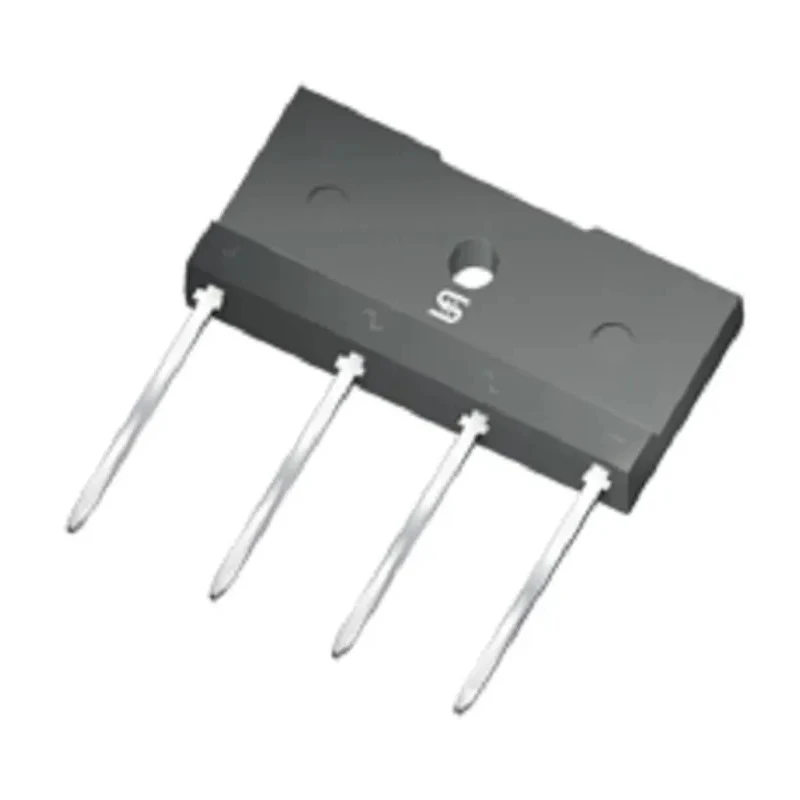

Taiwan Semiconductor Bridge Rectifier 800 V 10 A 4-Pin Quad TS-6PL Through Hole Mount T10JA06G-K

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor Bridge Rectifier 800 V 10 A 4-Pin Quad TS-6PL Through Hole Mount T10JA06G-K

Name: Taiwan Semiconductor Bridge Rectifier 800 V 10 A 4-Pin Quad TS-6PL Through Hole Mount T10JA06G-K
Brand: Taiwan Semiconductor
SKU: 178277
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	29.3mm
Length	30mm
Model	T10JA06G-K
Mount Type	Through Hole
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	TS-6PL
Minimum Operating Temperature	-55°C
Number of Phases	1
Standards/Approvals	IEC 61249-2-21, RoHS, UL
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	144A
Forward Current If	10A
Peak Forward Voltage Vf	1.1V

Key Features

The device features through hole mount type for ease of PCB integration.
It supports a maximum operating temperature of 150 degrees Celsius for demanding applications.
Peak non-repetitive forward surge current is 144 A, ensuring robust transient handling.
Ideal for switching mode power supplies, adapters, and lighting applications.
Constructed with a glass passivated chip junction for enhanced reliability.
Features a low peak forward voltage of 1.1 V for efficient conduction.
Complies with IEC 61249-2-21 standards and is RoHS and UL certified.
Halogen-free per IEC 61249-2-21 ensuring environmental safety.

Product Description

Taiwan Semiconductor T10JA06G-K Bridge Rectifier is a high-performance electronic component designed for industrial power applications requiring reliable AC to DC conversion. Rated at a peak reverse repetitive voltage of 800 V and a forward current of 10 A, this 4-pin quad configuration device packaged in a TS-6PL through hole mount is suitable for robust and compact electronic assemblies.

This bridge rectifier supports a wide operating temperature range from -55 degrees Celsius to 150 degrees Celsius, making it ideal for harsh environments and demanding industrial, commercial, and manufacturing applications such as switching mode power supplies (SMPS), adapters, and lighting systems.

The device incorporates a glass passivated chip junction, enhancing durability and performance stability. Featuring a peak non-repetitive forward surge current of 144 A and a low peak forward voltage drop of 1.1 V, it ensures efficiency and high transient handling capability.

Manufactured to meet IEC 61249-2-21 standards, the rectifier is both RoHS compliant and UL recognized, with halogen-free construction aligning with modern environmental and safety regulations. It comes supplied in tubes, facilitating automation and improving production efficacy by allowing direct insertion into machinery.

The package type is TS-6PL with a through hole mount configuration. Pin count totals 4 with a quad configuration ideal for discrete semiconductor applications. Length measures 30 mm and height 29.3 mm for precise PCB footprint planning.

Peak reverse current of 0 microamperes minimizes leakage and power loss. The product is non-automotive standard certified but built for general industrial use.

This bridge rectifier is a staple component in electronics manufacturing, laboratory instrument builds, HVAC controls, and industrial power conversion fields. It balances optimized electrical characteristics with reliable packaging to ensure performance and longevity in operational setups.

Explore the comprehensive range of semiconductor components and Bridge Rectifiers at EnvMart for enhanced industrial and laboratory power control solutions.
