Taiwan Semiconductor Bridge Rectifier 400 V 110 A 4-Pin Quad YBS3004G

Free Delivery in India | Lowest Global Shipping Charges

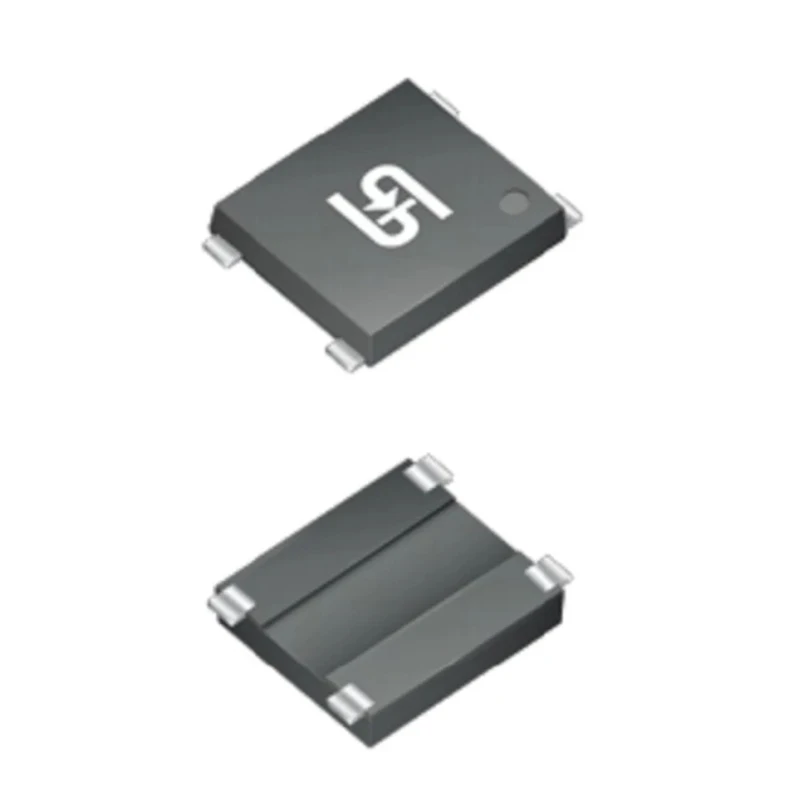

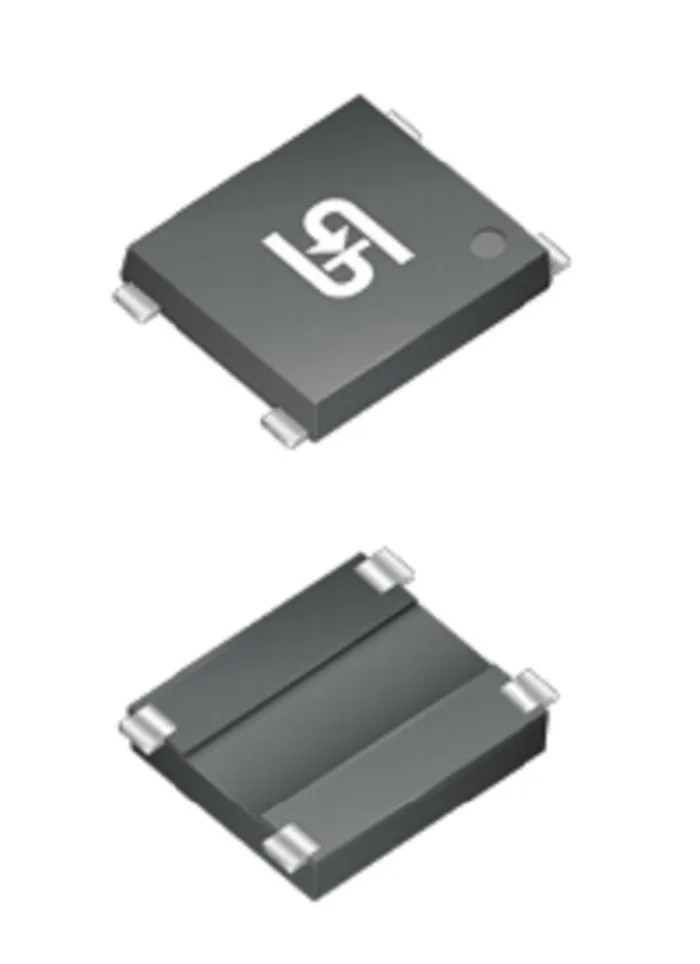

Taiwan Semiconductor Bridge Rectifier 400 V 110 A 4-Pin Quad YBS3004G

Name: Taiwan Semiconductor Bridge Rectifier 400 V 110 A 4-Pin Quad YBS3004G
Brand: Taiwan Semiconductor
SKU: 178261
Price: 0.46 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	8.6mm
Length	6.7mm
Model	YBS3004G
Mount Type	Surface
Series	YBS3000
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	YBS
Minimum Operating Temperature	-55°C
Standards/Approvals	UL, RoHS, IEC 61249-2-21
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	400V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	110A
Forward Current If	3A
Peak Forward Voltage Vf	1V

Key Features

The device features a 4-pin quad configuration suitable for compact circuit designs.
It supports a maximum forward current of 3 A ensuring steady performance.
Operates effectively in temperature ranges from -55°C to 150°C for versatile applications.
Constructed with a glass passivated chip junction for enhanced durability.
Complies with RoHS standards and is halogen-free per IEC 61249-2-21 for environmentally safe usage.
Ideal for switching mode power supplies, adapters, and lighting applications.
Features a peak forward voltage of 1 V and negligible peak reverse current for energy efficiency.
The package type YBS supports surface mounting to enable automated assembly.

Product Description

Taiwan Semiconductor YBS3004G Bridge Rectifier offers robust performance with 400 V peak reverse repetitive voltage and 110 A peak surge current. This 4-pin quad package surface-mount device is designed for applications including switching mode power supplies, adapters, and lighting systems in industrial and commercial electronics.

Featuring a glass passivated chip junction, it delivers reliable, low-cost construction using molded plastic techniques. The device has a high surge current capability, supporting a maximum forward current of 3 A. It is suitable for operation in harsh environments with a temperature range from -55°C to 150°C.

Compliance with UL and RoHS standards ensures that this rectifier meets stringent safety and environmental regulations. It is halogen-free as per IEC 61249-2-21 and has moisture sensitivity level 1 according to J-STD-020, ideal for automated manufacturing processes.

The compact dimensions (length 6.7 mm and height 8.6 mm) and YBS package type enable efficient PCB layout and mounting. Its electrical characteristics include a peak forward voltage of 1 V and a near-zero peak reverse current, providing energy-efficient rectification in power circuits.

The device features a 4-pin quad configuration suitable for compact circuit designs. It supports a maximum forward current of 3 A ensuring steady performance. Operates effectively in temperature ranges from -55°C to 150°C for versatile applications.

Constructed with a glass passivated chip junction for enhanced durability. Complies with RoHS standards and is halogen-free per IEC 61249-2-21 for environmentally safe usage. Ideal for switching mode power supplies, adapters, and lighting applications.

Features a peak forward voltage of 1 V and negligible peak reverse current for energy efficiency. The package type YBS supports surface mounting to enable automated assembly.

This bridge rectifier is suited for a wide range of industrial electronics, power supply manufacturing, and lighting equipment assembly. It complies with international standards, making it a reliable choice for engineers and designers.
