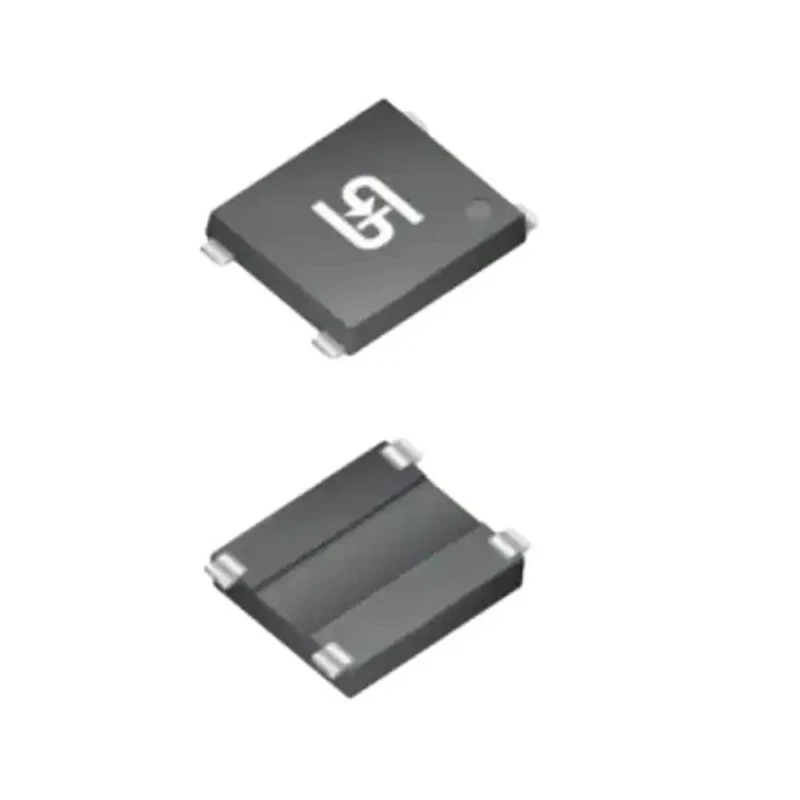

Taiwan Semiconductor Bridge Rectifier, 800 V Peak Reverse Voltage, 90 A Surge Current, 4-Pin Quad YBS2206G

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor Bridge Rectifier, 800 V Peak Reverse Voltage, 90 A Surge Current, 4-Pin Quad YBS2206G

Name: Taiwan Semiconductor Bridge Rectifier, 800 V Peak Reverse Voltage, 90 A Surge Current, 4-Pin Quad YBS2206G
Brand: Taiwan Semiconductor
SKU: 178256
Price: 0.23 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	8.6mm
Length	6.7mm
Model	YBS2206G
Mount Type	Surface
Series	YBS2200
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	YBS
Minimum Operating Temperature	-55°C
Standards/Approvals	UL, RoHS, IEC 61249-2-21
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	90A
Forward Current If	2.2A
Peak Forward Voltage Vf	0.95V

Key Features

Supports peak reverse repetitive voltage of 800 V.
Features 90 A peak non-repetitive forward surge current capability.
Operates reliably at temperatures ranging from -55°C to 150°C.
Compact surface mount package with YBS configuration.
Includes glass passivated chip junction for durability.
Ideal for switching mode power supplies, adapters, and lighting applications.
Low forward voltage drop of 0.95 V ensures efficient operation.
Halogen-free and RoHS compliant, meeting IEC 61249-2-21 standards.

Product Description

Taiwan Semiconductor YBS2206G Bridge Rectifier is a surface mount, 4-pin quad bridge rectifier designed for efficient and reliable power conversion with a peak reverse voltage rating of 800 V and a peak surge current of 90 A. Its robust construction using glass passivated chip junction technology ensures long-lasting performance in demanding industrial and electronic applications.

This component operates effectively over a wide temperature range from -55°C minimum to a maximum of 150°C, making it suitable for harsh environments. The compact YBS package provides ease of automated placement on PCBs and optimized space saving.

Applications include switching mode power supplies (SMPS), adapters, and lighting systems, where high surge current capability and reliable low forward voltage are essential.

The bridge rectifier is RoHS compliant and halogen-free per IEC 61249-2-21, supporting environmentally conscious manufacturing practices.

Peak Reverse Repetitive Voltage: 800 V. Peak Non-Repetitive Forward Surge Current: 90 A. Operating Temperature: -55°C to 150°C. Package Type: YBS surface mount. Configuration: 4-pin quad. Forward Voltage Drop: 0.95 V. Glass passivated chip junction.

RoHS and halogen-free compliant.

This Bridge Rectifier fits seamlessly in commercial manufacturing, industrial electronic assemblies, and prototype development requiring dependable rectification solutions. Available for immediate order through EnvMart’s electronics components category.
