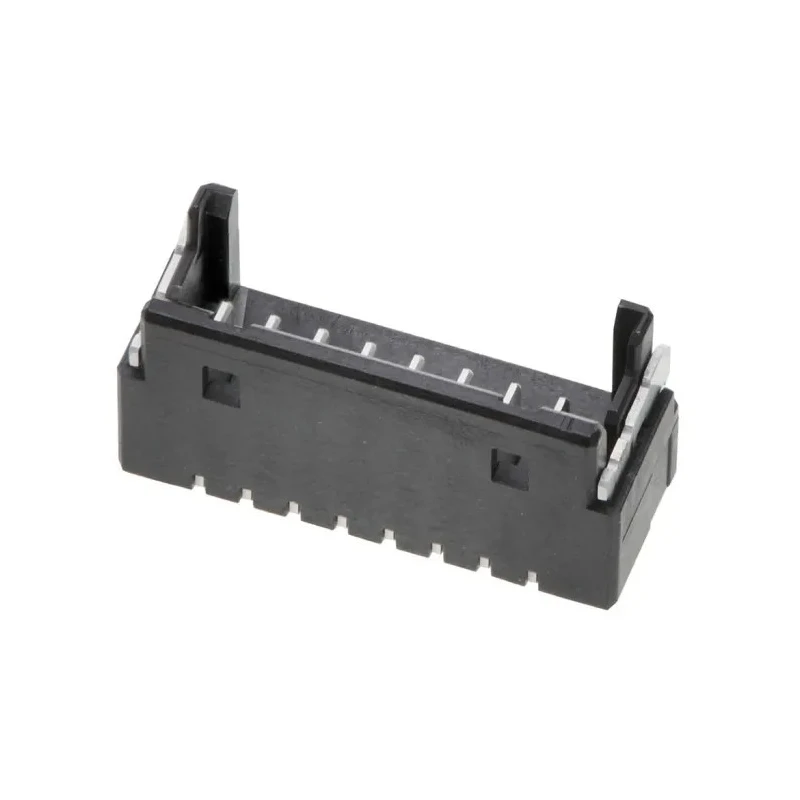

Molex OneBlade Series Vertical Surface PCB Header 8 Contacts 1 mm Pitch 2 Row Shrouded 214094-0080
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Molex |
| Orientation | Vertical |
| Current | 2.5A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | OneBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Standards/Approvals | RoHS, UL |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 2mm |
| Row Pitch | 3mm |
Key Features
- This PCB header features a vertical wire-to-board connector system designed for surface mounting.
- It offers 8 contacts with a pitch spacing of 1 mm ensuring compact and precise connections.
- The header is shrouded and has 2 rows for enhanced protection and stability.
- Made with thermoplastic housing and copper contacts plated with tin for durability.
- Capable of operating between -20°C and 105°C for diverse environmental conditions.
- Supports a maximum current rating of 2.5A suitable for various electronic applications.
- Designed to withstand up to 30 mating cycles, balancing longevity and reliability.
- Meets RoHS and UL standards ensuring compliance and quality assurance.
Product Description
Molex 214094-0080 OneBlade Series Vertical Surface PCB Header is a high-quality connector designed for electronic assembly requiring reliable wire-to-board connections. It features 8 male contacts arranged in 2 shrouded rows with a precise 1 mm pitch for compact installation and optimal electrical performance.
The housing is made of durable thermoplastic material, protecting the copper contacts plated with tin to maintain conductivity and resist corrosion. This surface-mounted header is suitable for use in industrial electronics, laboratory equipment, and manufacturing applications.
Temperature tolerance ranges from -20°C to 105°C, enabling operation in varied environments. Its 2.5A current rating allows it to support modest power levels across PCB assemblies. The connector’s design includes a 3 mm row pitch and a 2 mm mating pin length that contribute to secure mechanical and electrical connections.
This PCB header complies with RoHS and UL standards, ensuring environmentally safe materials and certified safety. It is manufactured in the Republic of Korea, reflecting high production quality.
Typical applications include power connectors, data communication interfaces, and compact electronic assemblies where reliable vertical connection is required. Its shrouded design adds protection against accidental damage and shorts.
This PCB Header features a vertical wire-to-board connector system designed for surface mounting. It offers 8 contacts with a pitch spacing of 1 mm ensuring compact and precise connections. The header is shrouded and has 2 rows for enhanced protection and stability.
Made with thermoplastic housing and copper contacts plated with tin for durability. Capable of operating between -20°C and 105°C for diverse environmental conditions. Supports a maximum current rating of 2.5A suitable for various electronic applications.
Designed to withstand up to 30 mating cycles, balancing longevity and reliability. Meets RoHS and UL standards ensuring compliance and quality assurance. Explore more PCB connectors and electronic components from Molex at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current rating of 2.5A, making it suitable for various electronic applications.
The contacts in this model are spaced at a pitch of 1 mm, allowing for compact and precise connections.
It is capable of operating between -20°C and 105°C, accommodating diverse environmental conditions.
This model features 8 male contacts arranged in 2 rows, designed for reliable wire-to-board connections.
The housing is made from thermoplastic material, providing protection for the internal components.
Yes, it meets RoHS and UL standards, ensuring compliance with environmental and safety regulations.
This model uses solder termination, which is standard for PCB headers.
The mating pin length is 2 mm, contributing to secure connections when mated.
This connector has a vertical orientation, designed for surface mounting applications.
It is designed to withstand up to 30 mating cycles, balancing longevity and reliability in use.
This model is manufactured in Korea, reflecting high production quality.
Typical applications include power connectors, data communication interfaces, and compact electronic assemblies.
