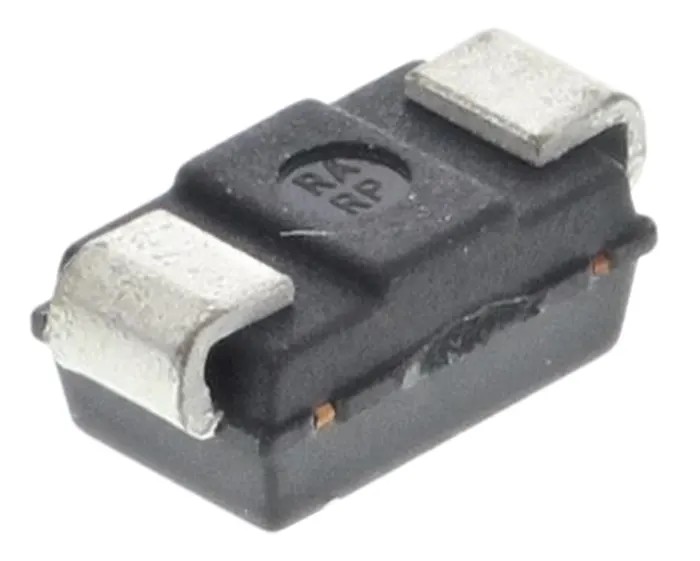

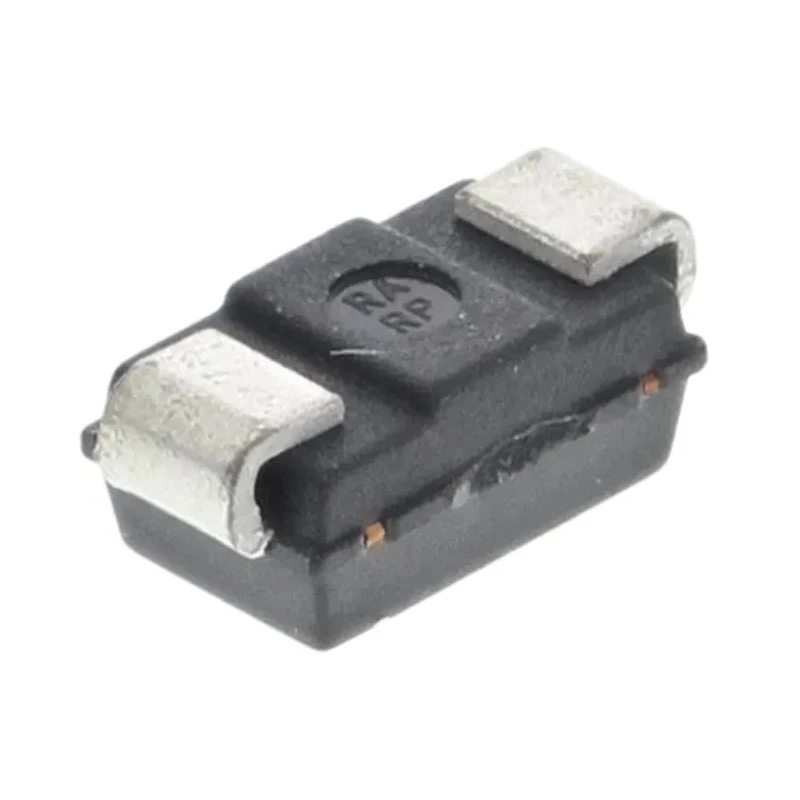

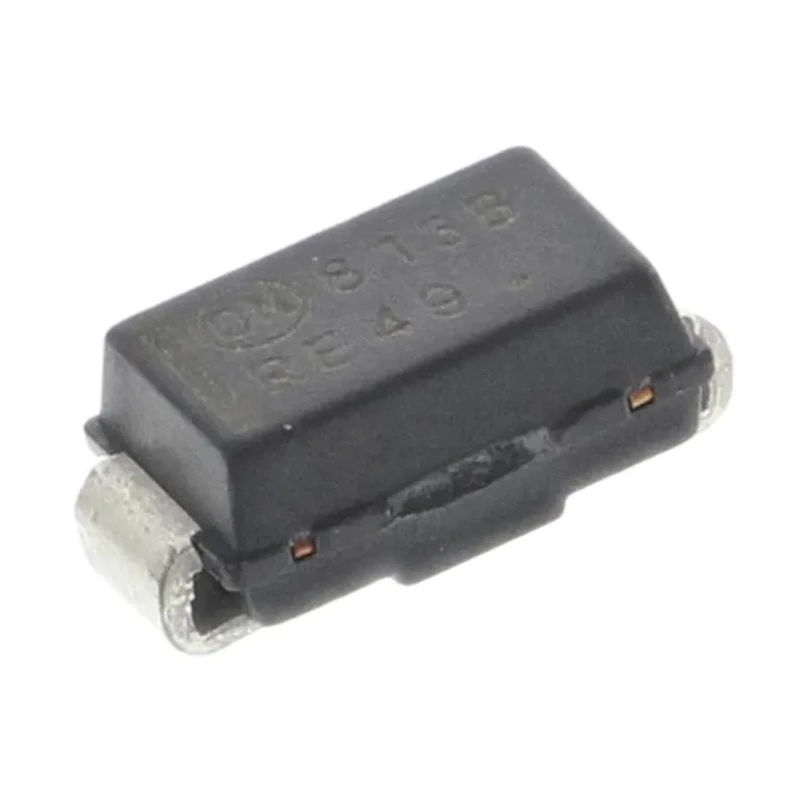

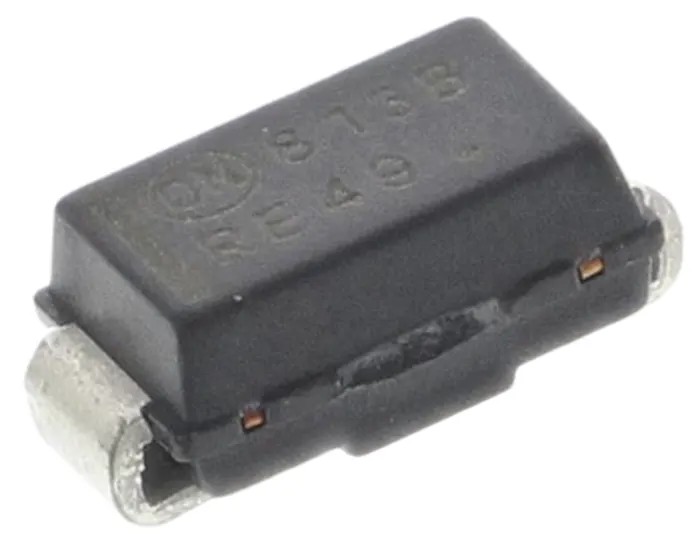

onsemi 3.3 V Zener Diode Single 1.5 W 5% Surface Mount 2-Pin DO-214AC 1SMA5913BT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.2mm |
| Length | 5.59mm |
| Model | 1SMA5913BT3G |
| Mount Type | Surface |
| Series | 1SMA59xxBT3G |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1.5W |
| Diode Configuration | Single |
| Test Current It | 113.6mA |
| Maximum Reverse Leakage Current | 50μA |
| Nominal Zener Voltage Vz | 3.3V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 10Ω |
Key Features
- Utilizes a 2-pin DO-214AC package for surface mounting applications.
- Features a maximum power dissipation of 1.5 watts ensuring stable operation.
- Nominal Zener voltage is fixed at 3.3 volts with a tolerance of ±5%.
- Test current rated at 113.6 milliamps for reliable voltage regulation.
- Maximum Zener impedance is 10 ohms, limiting voltage variation under load.
- Operates within a wide temperature range from -65°C to 150°C.
- Manufactured to RoHS standards and qualified to AEC-Q101 automotive requirements.
- Typical length of 5.59 mm and height of 2.2 mm for compact PCB footprint.
Product Description
onsemi 1SMA5913BT3G Zener Diode is a high-reliability semiconductor device designed for voltage regulation applications requiring 3.3 V nominal zener voltage with a 1.5 W maximum power dissipation. This single-element diode comes in a compact 2-pin DO-214AC surface mount package, ideal for dense electronics and automated assembly techniques.
The diode features a maximum reverse leakage current of 50 microamps and a maximum zener impedance of 10 ohms, providing consistent voltage regulation even under varying load currents. It has a test current of 113.6 mA, ensuring stable operation within electronic circuits.
Constructed to comply with RoHS directives and automotive-grade AEC-Q101 standards, it offers excellent suitability for both commercial and automotive electronic applications. The device is rated to operate over a wide temperature range of -65°C to 150°C, assuring durability in harsh environments.
The physical dimensions of the diode are optimized for modern PCBs, with a length of 5.59 mm and a height of 2.2 mm, allowing for space-efficient designs in power regulation circuits.
Compact 2-pin DO-214AC package suitable for surface mounting. Nominal Zener voltage of 3.3 V with ±5% tolerance. Maximum power dissipation of 1.5 W for safe operational limits. Low leakage current and impedance for stable voltage regulation.
Wide operating temperature range from -65°C to 150°C. Certified RoHS compliant and meets AEC-Q101 automotive standards. Ideal for use in power and semiconductor discrete circuits, including industrial, automotive, and laboratory environments.
This voltage regulator diode is widely used in applications requiring precise voltage control such as voltage clamping, reference voltage generation, and protection circuits. It is suitable for industrial electronics manufacturing, laboratory instrumentation, and automotive electronics.
Browse more on semiconductor components like Zener Diodes, Discrete Semiconductors, and other voltage regulators on EnvMart for your electronics development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is fixed at 3.3 volts with a tolerance of ±5%.
It has a maximum power dissipation of 1.5 watts, ensuring stable operation within specified limits.
The diode has a length of 5.59 mm and a height of 2.2 mm, making it suitable for compact PCB designs.
The maximum operating temperature for this diode is 150°C, allowing it to function in high-temperature environments.
This model comes in a 2-pin DO-214AC surface mount package, which is ideal for automated assembly.
The test current for this diode is rated at 113.6 milliamps, ensuring reliable voltage regulation during operation.
The maximum reverse leakage current for this diode is 50 microamps, which helps maintain stable performance.
It is qualified to AEC-Q101 automotive standards, making it suitable for automotive applications.
The minimum operating temperature for this model is -65°C, enabling its use in extreme cold conditions.
The maximum Zener impedance is 10 ohms, which limits voltage variation under load conditions.
This Zener diode is suitable for applications requiring precise voltage control, such as voltage clamping and reference voltage generation.
Yes, this diode is manufactured to comply with RoHS standards, ensuring it meets environmental regulations.
