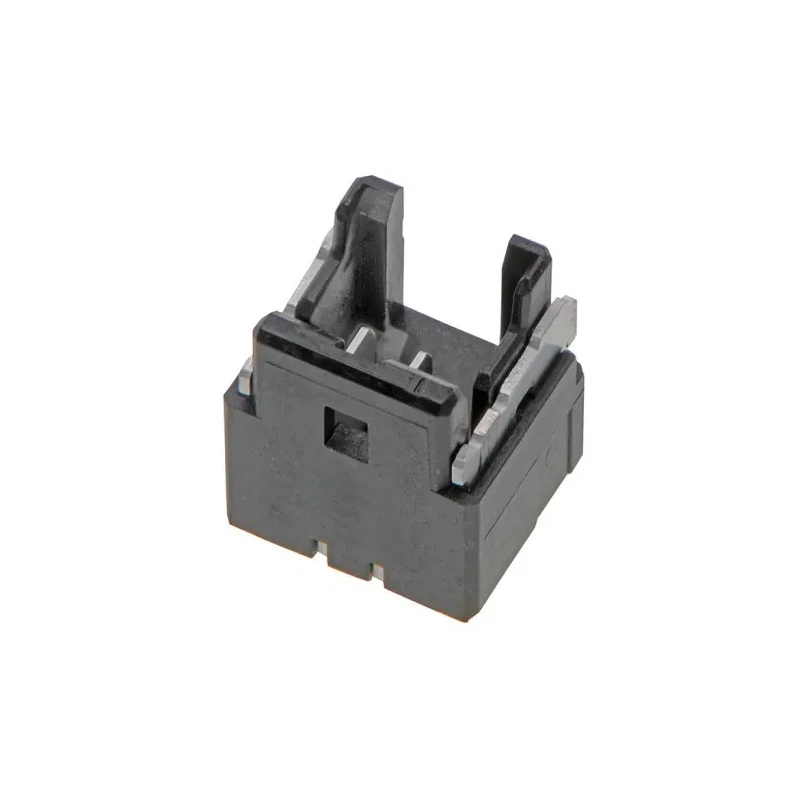

Molex OneBlade Series Vertical Surface PCB Header, 2 Contact(s), 1 mm Pitch, 2 Row, Shrouded 214094-0020
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Molex |
| Orientation | Vertical |
| Current | 2.5A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | OneBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Standards/Approvals | CHINA RoHS, EU ELV, EU RoHS |
| Contact Plating | Matt Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 2mm |
Key Features
- The header supports a 2.5A current rating suitable for low-power PCB applications.
- Housing is made of durable polyamide material for reliable insulation and mechanical strength.
- Designed for vertical wire-to-board connection using surface mounting for compact PCB layouts.
- Contact material is brass with matt tin plating for corrosion resistance and excellent conductivity.
- Operates across a broad temperature range from -40°C to +105°C for diverse environmental conditions.
- Features solder termination and male contact gender for standard PCB assembly processes.
- Durability ensures up to 30 mating cycles, supporting repeated connection and disconnection.
- Compact 1 mm pitch and 2 mm mating pin length facilitate high-density PCB designs.
Product Description
Molex 214094-0020 is a OneBlade Series vertical surface PCB header designed for efficient wire-to-board connections. This shrouded connector features 2 contacts spaced at a 1 mm pitch arranged in 2 rows, optimizing board real estate and ensuring secure connections.
Constructed with a polyamide housing, the header provides exceptional insulation and mechanical resilience. Brass contacts with matt tin plating deliver reliable electrical performance and enhanced corrosion resistance in demanding industrial environments.
Intended for surface mount applications, the header ensures low-profile mounting suitable for compact electronic assemblies. The male contact gender and solder termination type align with standard PCB manufacturing processes.
This component operates reliably within a temperature range from -40°C to 105°C, making it ideal for various industrial, electronic, and manufacturing applications. It is rated for 2.5 amperes of current, supporting typical low-power circuit needs.
The robust design supports a maximum of 30 mating cycles, allowing for durable and reusable connections. Mating pin length of 2 mm complements the tight 1 mm pitch to facilitate precise placement and secure contact engagement on PCBs.
The connector is compliant with CHINA RoHS, EU ELV, and EU RoHS standards, assuring restricted hazardous substances compliance. Ideal for use in electronic industry sectors such as consumer electronics, industrial automation, and instrumentation.
This PCB header originates from the Republic of Korea, reflecting high manufacturing quality. Explore other PCB Header solutions and related components in the Electronics & Electricals category on EnvMart for comprehensive project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2.5A, suitable for low-power PCB applications.
The contacts are spaced at a pitch of 1 mm, allowing for compact PCB layouts.
The housing is made of polyamide, while the contacts are constructed from brass with matt tin plating for corrosion resistance.
It operates reliably within a temperature range from -40°C to 105°C, accommodating diverse environmental conditions.
The design supports up to 30 mating cycles, allowing for repeated connection and disconnection.
It features a solder termination type, which aligns with standard PCB assembly processes.
This model has 2 contacts arranged in 2 rows, optimizing board real estate for secure connections.
Yes, it complies with CHINA RoHS, EU ELV, and EU RoHS standards, ensuring restricted hazardous substances compliance.
The mating pin length is 2 mm, which complements the tight 1 mm pitch for precise placement on PCBs.
It is designed for wire-to-board connections, suitable for surface mounting in compact electronic assemblies.
This product originates from Korea, reflecting high manufacturing quality.
The contacts are male, which is standard for this type of PCB header.
