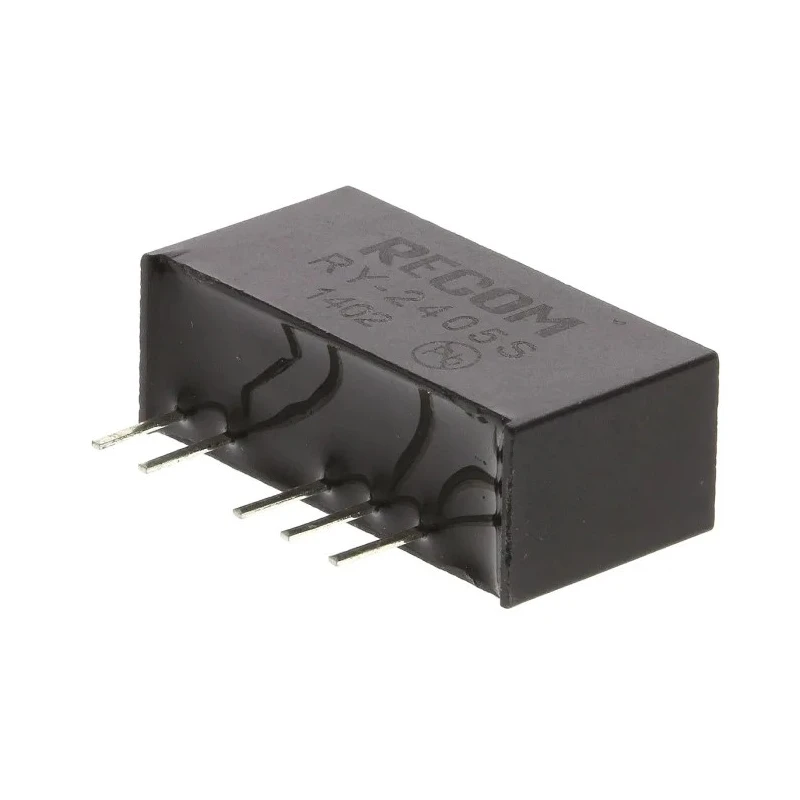

Recom DC/DC Converter 5V DC Output 200 mA 24V DC Input Through Hole Mount SIP Package 1W Power RY-2405S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RY DC/DC Converter, 5V dc/ 200 mA, 24V dc In |
| Brand | Recom |
| Efficiency | 60% |
| Length | 19.65mm |
| Model | RY-2405S |
| Depth | 10.2mm |
| Gross Weight | 2.8g |
| Width | 7.05mm |
| Mount Type | Through Hole |
| Series | RY |
| Maximum Operating Temperature | 70°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 135000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 24V dc |
| Standards/Approvals | CSA, IEC, UL |
| Minimum Input Voltage | 22.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 1kV dc |
Key Features
- Operates with input voltages ranging from 22.8V to 24V DC for wide compatibility.
- Delivers a maximum output power of 1 watt with an efficiency of approximately 60%.
- Features a ripple and noise level of 100mV peak-to-peak ensuring stable voltage supply.
- Supports a wide operating temperature range from -40°C to +70°C for harsh environments.
- Offers electrical isolation of 1kV DC between input and output for safety.
- Designed for high reliability with a Mean Time Between Failures (MTBF) of 135,000 hours.
- Compact dimensions of 19.65 mm length, 7.05 mm width, and 10.2 mm depth save PCB space.
- Seven-pin SIP package enables easy through-hole mounting on printed circuit boards.
Product Description
Recom RY-2405S DC/DC Converter is engineered to convert a voltage input range from 22.8 V to 24 V DC into a stable 5V DC output with 200 mA current capacity. It is housed in a compact, SIP through-hole package measuring 19.65 mm by 7.05 mm by 10.2 mm, optimizing PCB footprint for electronics assembly.
The unit operates efficiently at around 60%, minimizing power loss in low-power applications. It features a ripple and noise output of 100 mV peak-to-peak, maintaining precise voltage regulation supported by its built-in linear regulator with ±1% accuracy.
With a robust MTBF rating of 135,000 hours, this DC/DC converter guarantees enduring reliability in industrial, medical technology, computing equipment, and domestic appliance applications. Electrical safety is enhanced by an isolation voltage of 1kV DC between input and output circuits.
Operating temperature ranges from -40°C to +70°C, enabling use in demanding environments and varied climates. The device complies with CSA, IEC, and UL standards, ensuring quality and safety approvals for industrial and commercial use.
The thorough-hole mount style simplifies installation on printed circuit boards, providing secure mechanical and electrical connections suitable for high-volume production. Operates at 5V DC output with 200 mA maximum current.
Accepts input voltages from 22.8V to 24V DC. Power rating of 1 watt with efficient energy conversion. Compact SIP package with seven pins for ease of mounting. Wide temperature tolerance from -40°C to +70°C. 1kV DC electrical isolation for enhanced safety.
Certified to CSA, IEC, and UL standards.
This component is suitable for integration into medical devices, computing hardware, and domestic appliances where reliable, low-power voltage regulation is critical. Its compact size and efficient performance make it ideal for demanding industrial and commercial electronics assemblies.
Explore additional Recom DC/DC Converters and related power supply components in the EnvMart Electronics & Electricals category for comprehensive solutions tailored to specialized industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with input voltages ranging from 22.8V to 24V DC.
The maximum output power of the RY-2405S is 1 watt.
It delivers an output current capacity of 200 mA.
The compact dimensions are 19.65 mm in length, 7.05 mm in width, and 10.2 mm in depth.
This DC/DC converter operates with an efficiency of approximately 60%.
It features a ripple and noise level of 100 mV peak-to-peak.
The operating temperature range is from -40°C to +70°C.
This model is designed for through-hole mounting in a SIP package.
It offers an electrical isolation of 1kV DC between input and output.
The RY-2405S complies with CSA, IEC, and UL standards.
It has a Mean Time Between Failures (MTBF) rating of 135,000 hours.
This DC/DC converter provides one output.
