Eaton 80A British Standard Fuse A3 500V AC High Rupture Capacity Offset Tag OSD80

Free Delivery in India | Lowest Global Shipping Charges

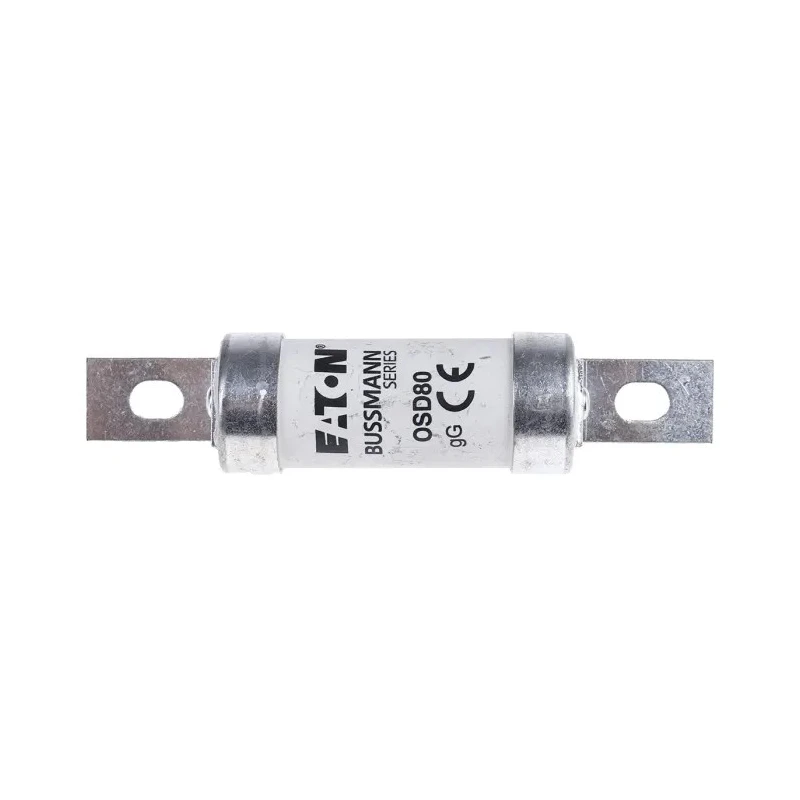

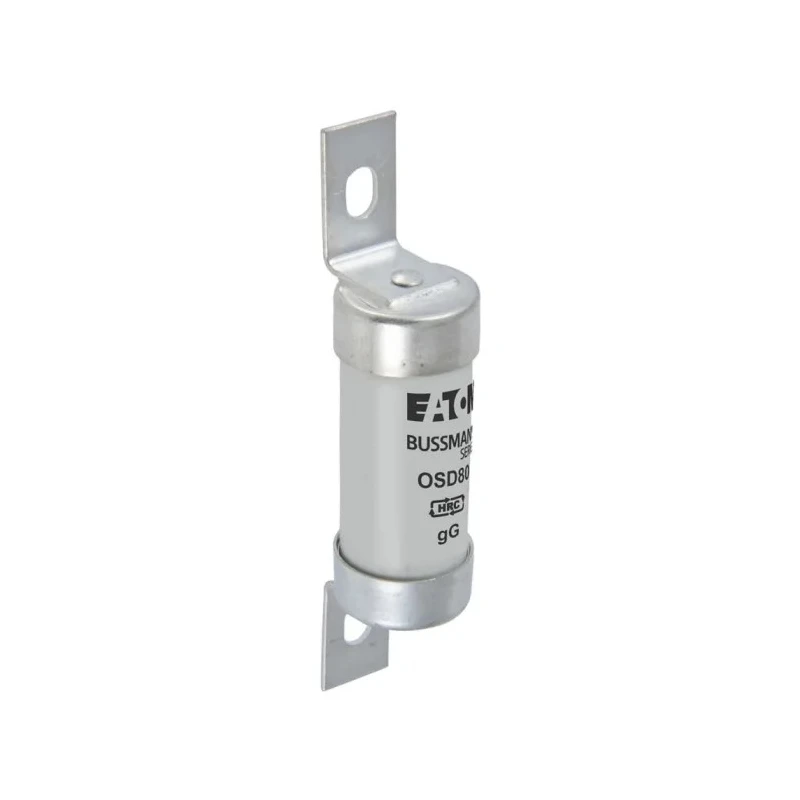

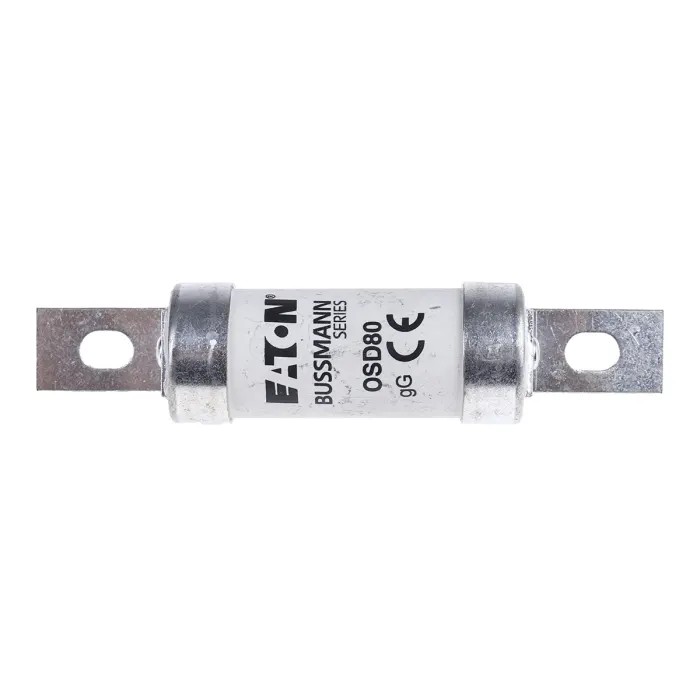

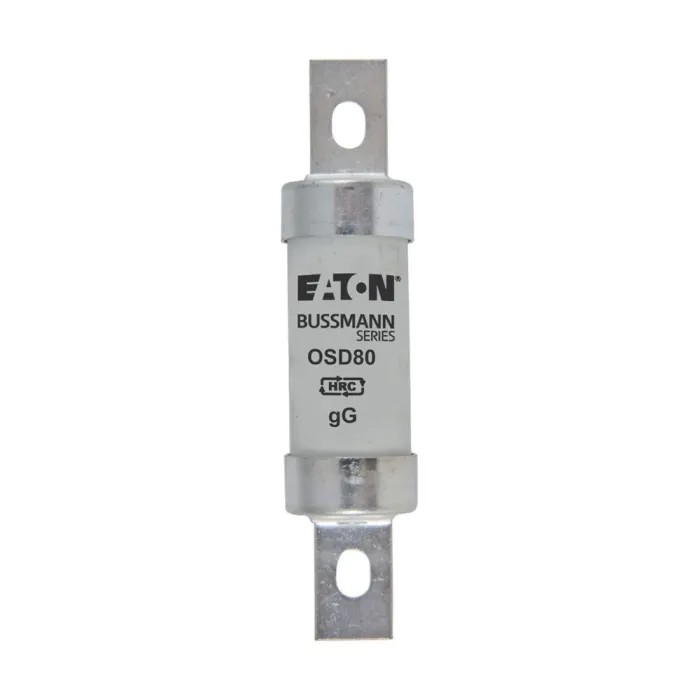

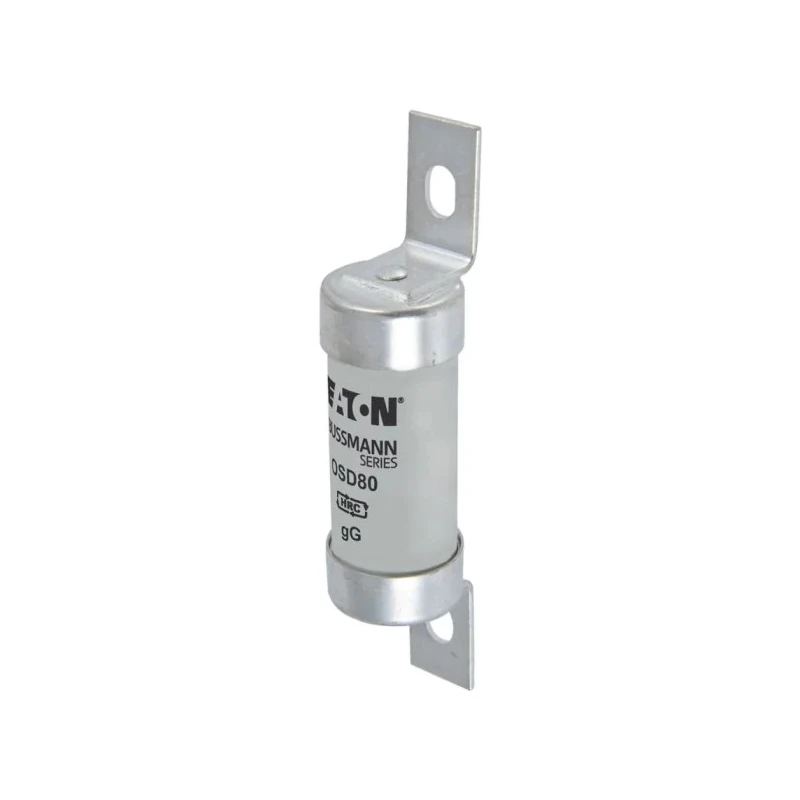

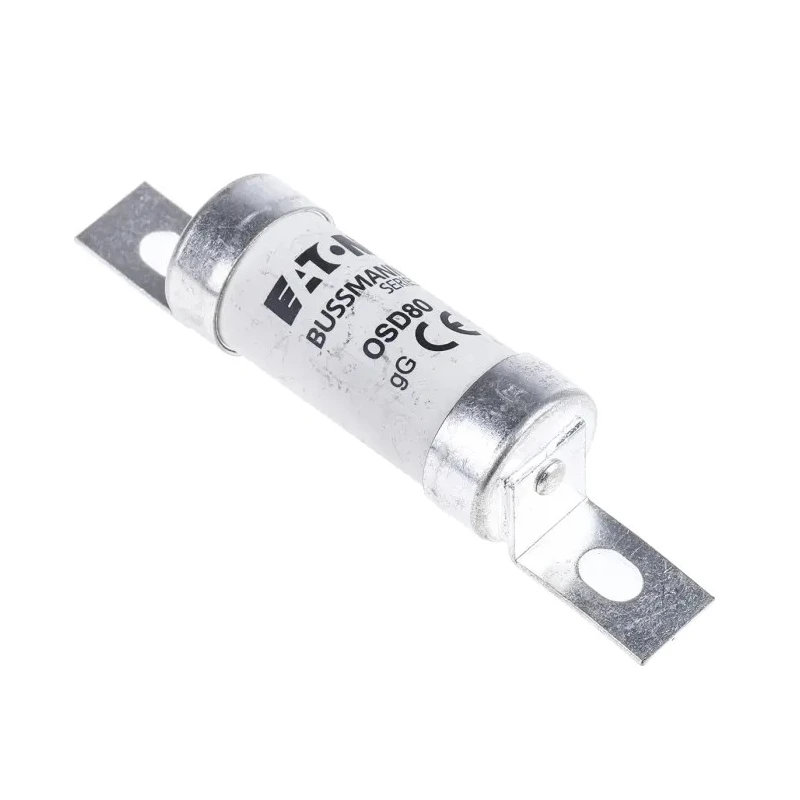

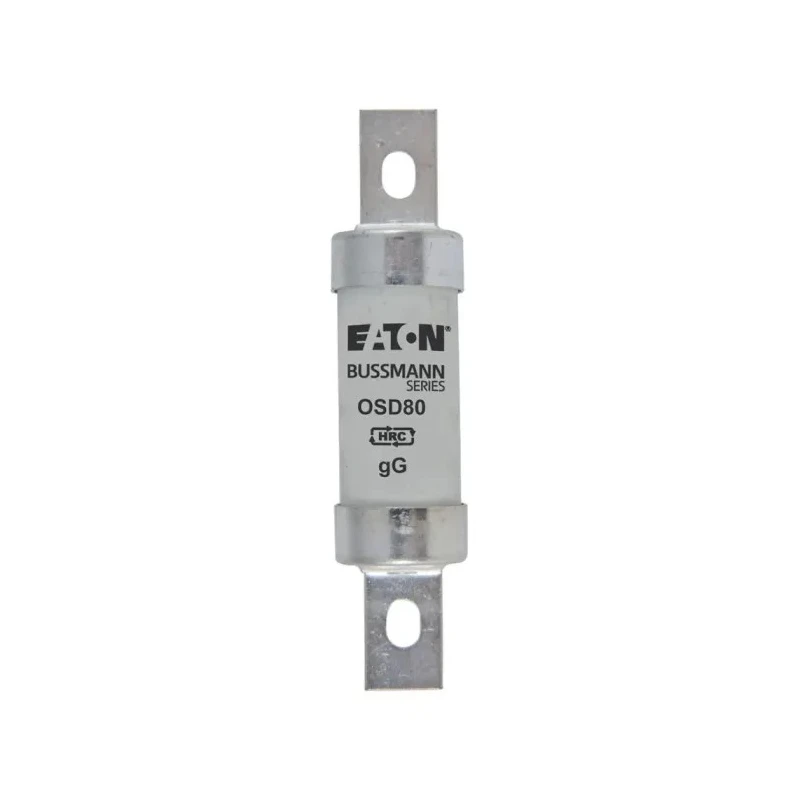

Eaton 80A British Standard Fuse A3 500V AC High Rupture Capacity Offset Tag OSD80

Name: Eaton 80A British Standard Fuse A3 500V AC High Rupture Capacity Offset Tag OSD80
Brand: Eaton
SKU: 137030
Price: 13.96 USD
Availability: InStock



Category Fuse Brand Eaton Condition New

Specifications

Country of Origin	India
Voltage	500V ac
Diameter	21mm
Brand	Eaton
Height	54.5mm
Length	95mm
Model	OSD80
Width	21mm
Current Rating	80A
Series	OSD
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	521-2668Brand: RS PRO
Fuse Size	A3
Fixing Centres	73.5 mm
Tag Width	12.7mm
Tag Orientation	Offset

Key Features

Rated current of 80 amperes with A3 fuse size.
Designed for 500V AC voltage rating for low voltage use.
Offset tag orientation facilitates easy mounting with M5 bolt holes.
Low power loss of 7.2 Watts helps minimize energy consumption.
Constructed with high rupture capacity ensuring safety under fault conditions.
Complies with RoHS standards assuring environmental compliance.
Suitable for use in general-purpose and low voltage industrial electrical systems.
Compatible with Eaton fuse holders such as CM100F and CM100FW DIN rail mount types.

Product Description

Eaton OSD80 British Standard Fuse is a 80A rated fuse with a 500V AC voltage rating, featuring an offset tag design with M5 mounting holes. This high rupture capacity fuse is made for general-purpose protection in industrial, electrical, and automation applications. It provides an effective safeguard by melting its internal filament during overloads or short circuits, breaking the circuit to prevent damage.

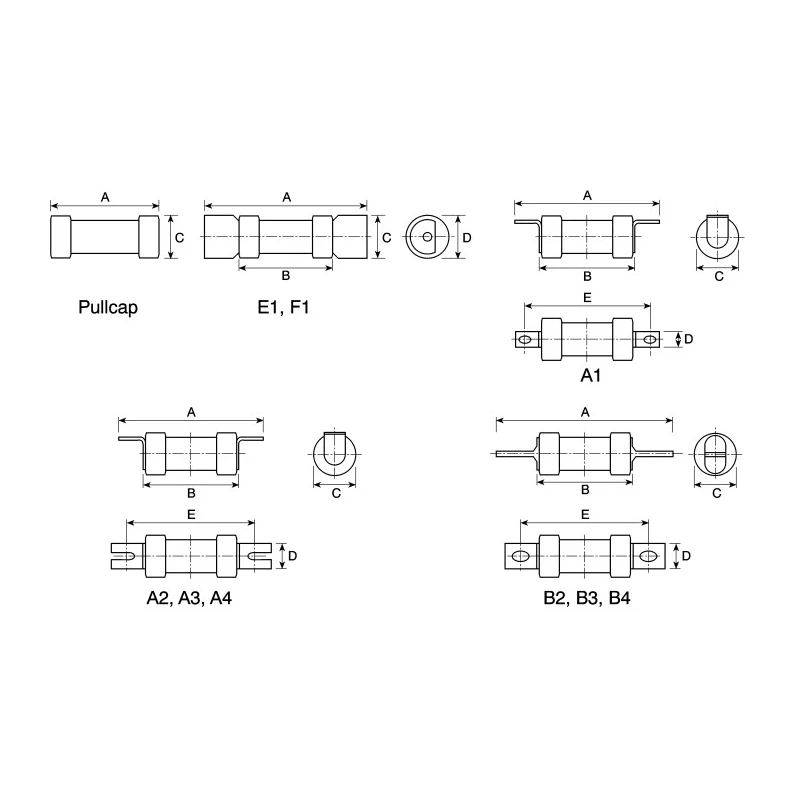

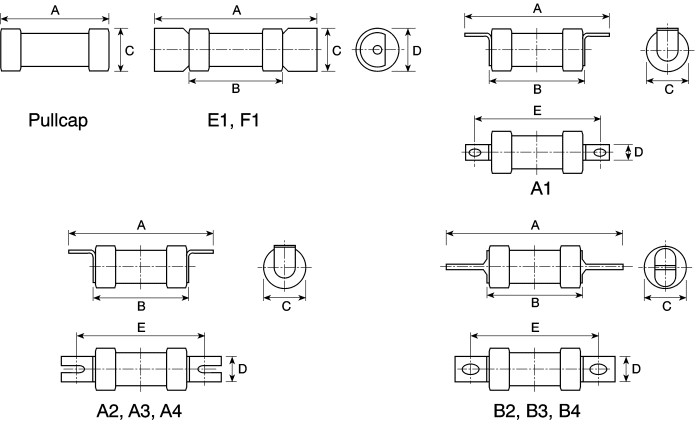

The fuse measures 95mm in overall length with fixing centres at 73.5 mm, tag width of 12.7mm, and dimensions including diameter and width of 21mm, and a height of 54.5mm. It features a gG utilization category suitable for low voltage industrial circuits and ensures compliance with RoHS environmental directives.

The offset bolted tags at both ends allow for secure mounting in holders and enclosures, and its low power loss design (7.2W) assists in minimizing energy wastage in electrical systems. Eaton's OSD series fuses, including this model, are compatible with various Eaton fuse holders like CM100F and CM100FW, which are DIN rail mountable solutions ideal for control panels and distribution boards in industrial environments.

This fuse is ideal for industrial machinery, manufacturing facilities, electrical distribution, and automation systems requiring safe and reliable overcurrent protection. Eaton is a world-renowned brand ensuring quality and durability in electrical components.

Rated current of 80 amperes with A3 fuse size. Designed for 500V AC voltage rating for low voltage use. Offset tag orientation facilitates easy mounting with M5 bolt holes. Length of 95mm with fixing centres at 73.5 mm for precise installation.

Low power loss of 7.2 Watts helps minimize energy consumption. Constructed with high rupture capacity ensuring safety under fault conditions. Complies with RoHS standards assuring environmental compliance. Suitable for use in general-purpose and low voltage industrial electrical systems.

Compatible with Eaton fuse holders such as CM100F and CM100FW DIN rail mount types. Explore Eaton products and other quality Fuses on EnvMart for reliable electrical safety and industrial applications.
