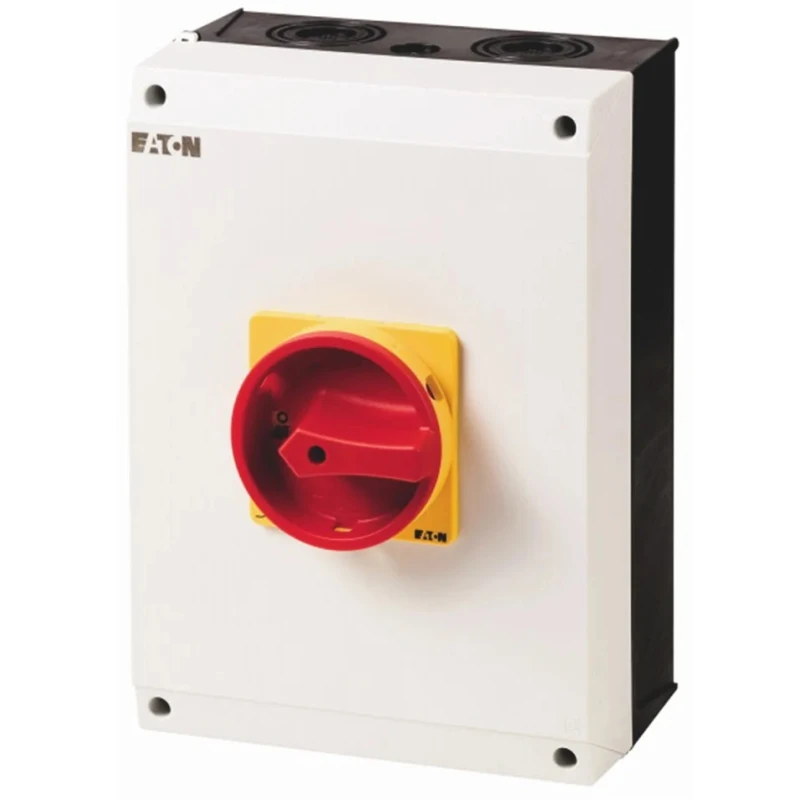

Eaton 1-Pole Screw Isolator Switch IP65 100A 30kW T51 Series MPN

The Eaton 207275 T5-1-8200/I5/SVB 1-Pole Screw Isolator Switch is a robust electrical switch disconnector designed to safely isolate circuits during use or maintenance with an IP65-rated thermoplastic enclosure providing excellent dust and water resistance.

This isolator switch supports a switching current rating of 100A and switching power capacity of 30kW, suitable for single-phase electrical systems operating up to 400V AC and 60V DC.

The rotary handle with a lockable yellow locking ring allows secure isolation with up to three padlocks, enhancing safety during emergency stop or maintenance procedures. It includes an earth commoning block and auxiliary contacts to facilitate versatile electrical connections and signaling.

Built to comply with multiple international standards including UL, IEC, EN, CSA, and ATEX, this series T51 isolator switch affords reliable and certified performance in industrial, commercial, and manufacturing environments.

It operates efficiently within a temperature range from -25°C to 50°C and its dimensions (280mm length x 200mm width x 125mm depth) support easy surface mounting with screw type terminals.

Features a screw mount type for secure installation. Includes built-in earth commoning block for grounding. Red rotary handle with lockable yellow ring for safety lockout. Padlock compatibility up to three padlocks. Auxiliary contacts available for control and signaling.

Robust thermoplastic enclosure rated IP65 for dust and water protection. Suitable for emergency stop, main switch, and manual override applications. This Eaton isolator switch is ideal for industrial, construction, manufacturing, and electrical automation applications requiring safe circuit isolation with certified protection.

Explore more high-quality electrical switches and Isolator Switches at EnvMart to find solutions tailored to your industrial needs.
