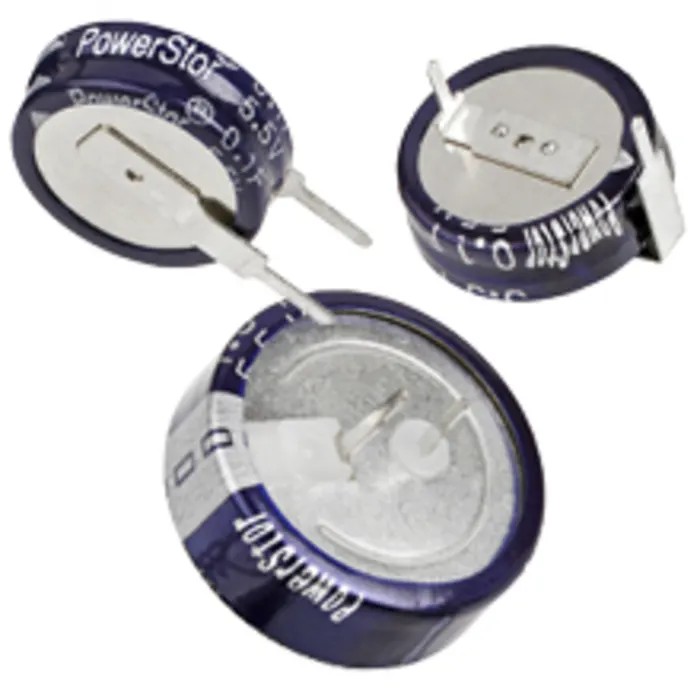

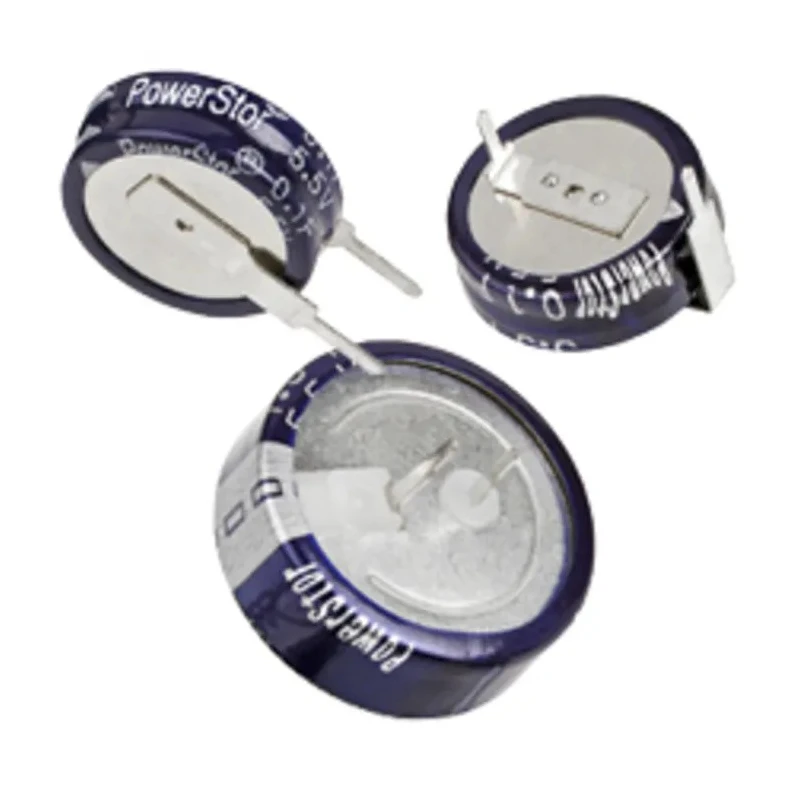

Eaton 1 F Supercapacitor 5.5V DC Through Hole Radial Terminal -20 to 80% Tolerance KR-5R5H105-R

Free Delivery in India | Lowest Global Shipping Charges

Eaton 1 F Supercapacitor 5.5V DC Through Hole Radial Terminal -20 to 80% Tolerance KR-5R5H105-R

Name: Eaton 1 F Supercapacitor 5.5V DC Through Hole Radial Terminal -20 to 80% Tolerance KR-5R5H105-R
Brand: Eaton
SKU: 154755
Price: 7.66 USD
Availability: InStock



Category Supercapacitors Brand Eaton Condition New

Specifications

Country of Origin	China
Voltage	5.5V dc
Diameter	19mm
Brand	Eaton
Height	6.7mm
Model	KR-5R5H105-R
Mount Type	Through Hole
Series	KR
Maximum Operating Temperature	70°C
Tolerance	-20 to 80 %
Lifetime	1000 h
Capacitance	1F
Minimum Operating Temperature	-25°C
Polarity	Polar
Terminal type	Radial
Standards/Approvals	EN 60664-1, RoHS
Pin Count	2
Lead Pitch	20mm
Lead Diameter	0.2mm
Equivalent Series Resistance ESR	30Ω
Capacitor Family	Supercapacitor

Key Features

This supercapacitor features a capacitance of 1 Farad and a nominal voltage of 5.5V DC.
The device uses a through-hole mount type with radial terminal pins and a 0.2 mm lead diameter.
It has an equivalent series resistance (ESR) of 30 ohms ensuring efficient energy delivery.
Operating temperature ranges from -25°C minimum to 70°C maximum, with a lifetime of 1000 hours.
The tolerance range is from -20% to +80%, suitable for varied application requirements.
The capacitor is RoHS compliant and meets EN 60664-1 standards.

Product Description

Eaton KR-5R5H105-R is a high-performance 1 Farad supercapacitor designed for reliable energy storage and rapid charge/discharge cycles in electronic devices.

The supercapacitor operates at a nominal voltage of 5.5V DC, employing electrochemical double layer capacitor (EDLC) technology to deliver high specific capacitance with minimal leakage current and extended lifecycle.

Featuring a through-hole radial terminal mount, this device has a lead diameter of 0.2 mm and a lead pitch of 20 mm, facilitating easy PCB integration.

With a diameter of 19 mm and a height of 6.7 mm, the capacitor fits compact designs, while tolerating temperatures between -25°C and 70°C, suitable for harsh industrial, automotive, and consumer electronics environments.

Its ESR of 30 ohms ensures efficient energy discharge performance, and a tolerance range of -20% to +80% accommodates fluctuations in capacitance. Applications include computers and peripherals, network switches, routers, utility meters, HVAC controls, appliances, office equipment, and real-time clock backup systems.

High specific capacitance for energy storage. Low leakage current extending device life. Long cycle life suitable for continuous operation. Compliant with EN 60664-1 and RoHS environmental standards. Robust construction using advanced materials.

Originating from China, this product reflects Eaton's commitment to quality and advanced capacitor technologies. Explore the wide Eaton range at EnvMart for reliable and efficient supercapacitor solutions tailored to diverse industrial and electronic applications.
