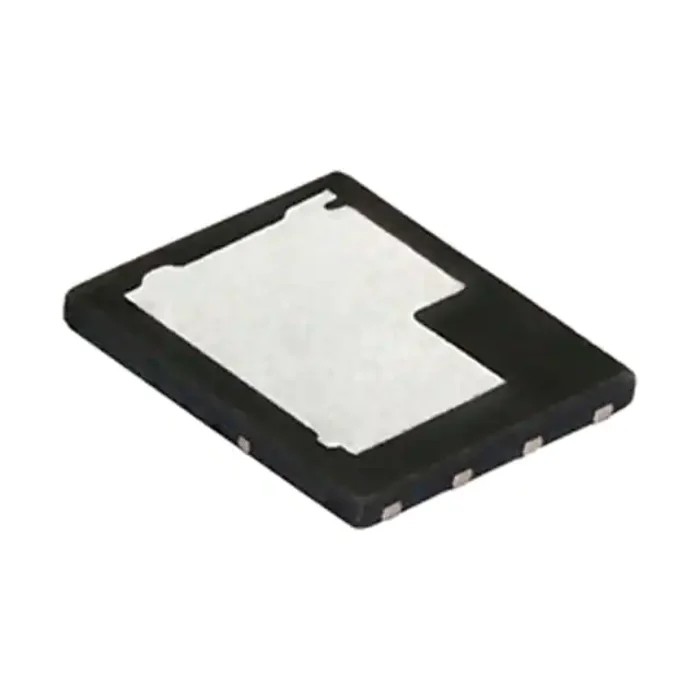

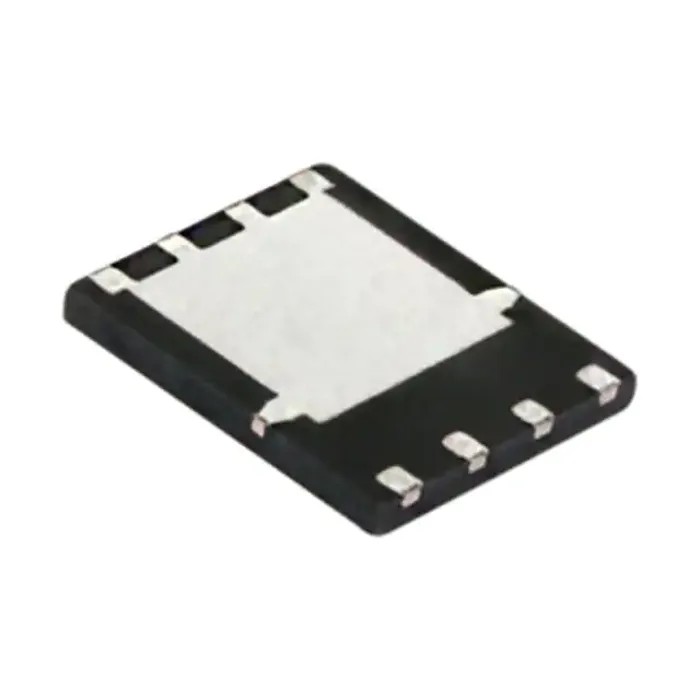

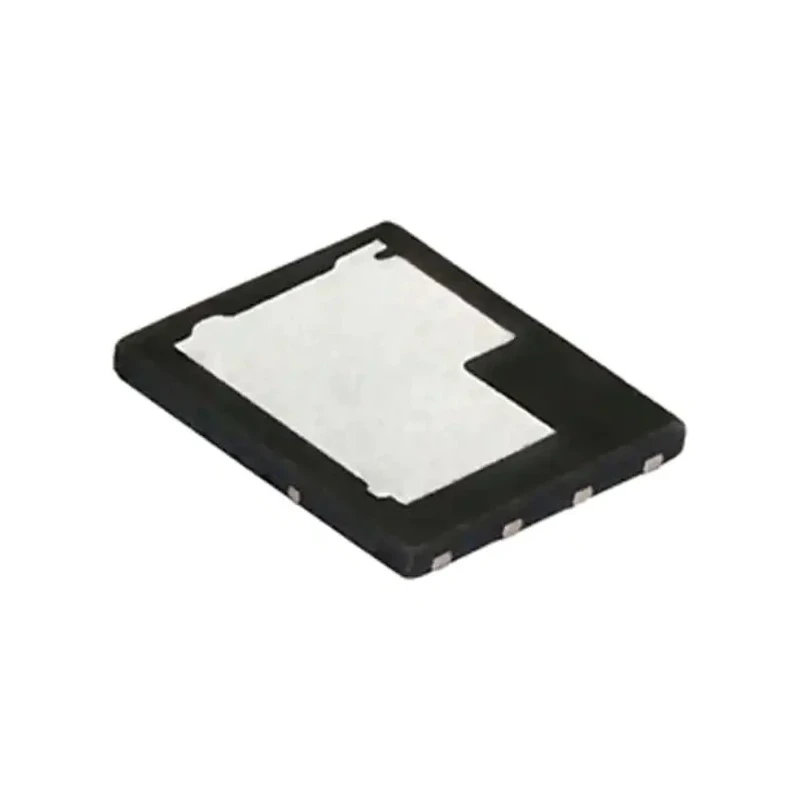

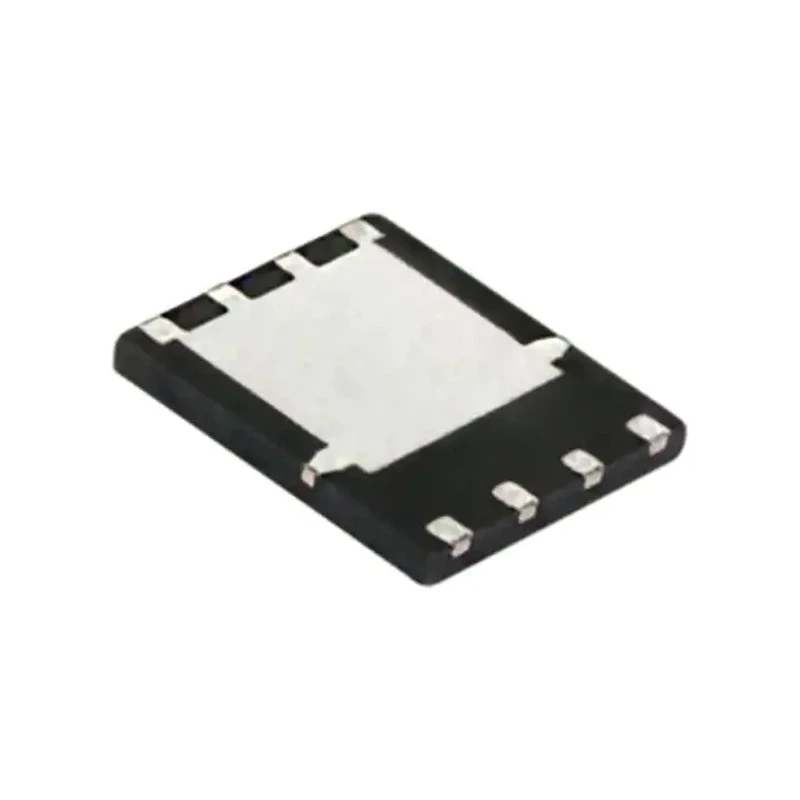

Vishay N-Channel MOSFET, 415 A, 100 V Depletion Mode, 8-Pin PowerPAK SO-8DC Surface Mount SiDR220EP-T1-RE3

Free Delivery in India | Lowest Global Shipping Charges

Vishay N-Channel MOSFET, 415 A, 100 V Depletion Mode, 8-Pin PowerPAK SO-8DC Surface Mount SiDR220EP-T1-RE3

Name: Vishay N-Channel MOSFET, 415 A, 100 V Depletion Mode, 8-Pin PowerPAK SO-8DC Surface Mount SiDR220EP-T1-RE3
Brand: Vishay
SKU: 176958



Category MOSFETs Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Length	6.15mm
Model	SiDR220EP-T1-RE3
Width	5.15mm
Mount Type	Surface
Maximum Operating Temperature	125°C
Package Type	PowerPAK SO-8DC
Minimum Operating Temperature	-55°C
Pin Count	8
Automotive Standard	AEC-Q101
Channel Type	N
Maximum Continuous Drain Current Id	415A
Maximum Drain Source Voltage Vds	100V
Maximum Drain Source Resistance Rds	0.00082Ω
Channel Mode	Depletion
Maximum Power Dissipation Pd	120W
Typical Gate Charge Qg @ Vgs	46.1nC
Maximum Gate Source Voltage Vgs	20V
Forward Voltage Vf	1.2V

Key Features

Features an 8-pin PowerPAK SO-8DC surface mount package for compact high-power applications.
Maximum drain-source resistance (Rds) of 0.00082 ohms ensures efficient conduction.
Operates within a temperature range of -55°C to 125°C for robust industrial performance.
Typical gate charge of 46.1 nC at Vgs ensures fast switching capabilities.
Forward voltage of 1.2 V and maximum power dissipation of 120 W enable efficient thermal management.
Designed to meet AEC-Q101 automotive standards for high reliability.
Suitable for synchronous buck converters, load switching, and high power density applications.

Product Description

Vishay SiDR220EP-T1-RE3 is a Gen IV TrenchFET® N-Channel MOSFET designed for high-power applications requiring reliable and efficient switching. Operating at a drain current of up to 415 A and a drain-source voltage of 100 V, this depletion mode MOSFET is packaged in an 8-pin PowerPAK SO-8DC surface mount format, facilitating compact device integration.

This MOSFET features low on-resistance at 0.00082 ohms and a forward voltage drop of 1.2 V, which minimizes power loss during conduction. A typical gate charge of 46.1 nC supports rapid switching essential for modern power electronics. It is rated for continuous operation from -55°C to 125°C, making it suitable for demanding industrial, automotive, and power management environments.

The device complies with the automotive standard AEC-Q101, underscoring its reliability and quality. Its maximum power dissipation of 120 W coupled with a top-side cooling feature allows advanced thermal dissipation strategies. This MOSFET is ideal for use in synchronous buck converters, load switching circuits, and other high-power density applications that demand performance and durability.

8-pin surface mount PowerPAK SO-8DC package for space-efficient layout. Supports maximum continuous drain current of 415 A for heavy load handling. Low drain-source resistance reduces conduction losses and improves efficiency.

Wide operating temperature range ensures stable performance in harsh environments. AEC-Q101 automotive standard compliant for high reliability in automotive applications. Typical gate charge of 46.1 nC enables fast and precise control.

Maximum power dissipation of 120 W supports high power switching.

Suitable for industrial uses such as manufacturing power supplies, automotive electronics, and high-performance DC/DC converter circuits. Environmentally robust, this MOSFET supports enhanced cooling methods and is UIS tested for electrical stress tolerance.
