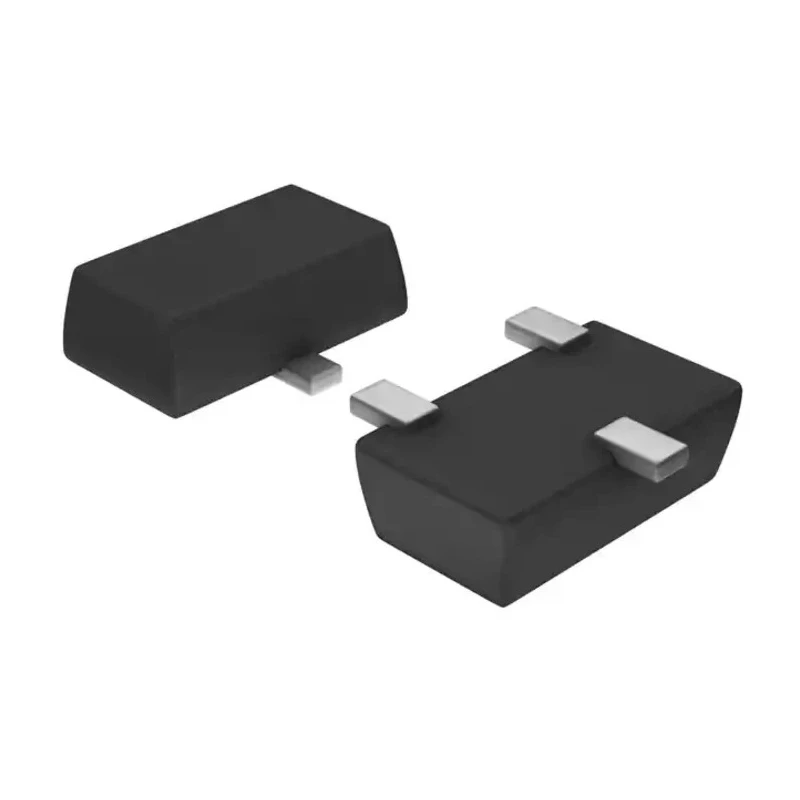

Toshiba Type P-Channel MOSFET 3.5 A 60 V 3-Pin SOT-23 Surface Mount SSM3J351R,LF(T

Toshiba SSM3J351R,LF(T is a P-Channel MOSFET semiconductor designed for efficient power management and switching applications. This device offers a maximum continuous drain current of 3.5 A and a maximum drain-source voltage of 60 V, making it suitable for medium-power electronics.

Housed in a compact 3-Pin SOT-23 surface mount package, the MOSFET features a low maximum drain-source resistance (Rds) of 129 mΩ, which reduces conduction losses and heat generation. The device supports a maximum power dissipation of 2 Watts and typical gate charge of 15.1 nC at Vgs, enabling fast switch transitions for improved circuit performance.

Its wide operating temperature range from -55°C to 150°C ensures stable operation under harsh environmental conditions typical in industrial and automotive settings. The MOSFET complies with the automotive standard AEC-Q101, underscoring its reliability and quality assurance for automotive and transport electronics.

The physical dimensions of 2.9 mm width, 2.4 mm length, and 0.8 mm height allow for space-efficient PCB design. Typical uses include power regulation, DC-DC conversion, and load switching in consumer electronics, manufacturing equipment, automotive controllers, and embedded system designs.

This MOSFET supports surface mounting, facilitating automated PCB assembly. Its forward voltage of 0.85 V ensures efficient operation and low voltage drop in switching circuits. Maximum gate-source voltage rating of -20 V provides robustness against voltage spikes.

Overall, the Toshiba SSM3J351R,LF(T MOSFET combines high performance, compact size, and automotive-grade reliability for demanding industrial and automotive applications. Explore more discrete semiconductor solutions and MOSFET devices in EnvMart's Electronics & Electricals category for your industrial and automotive designs.
