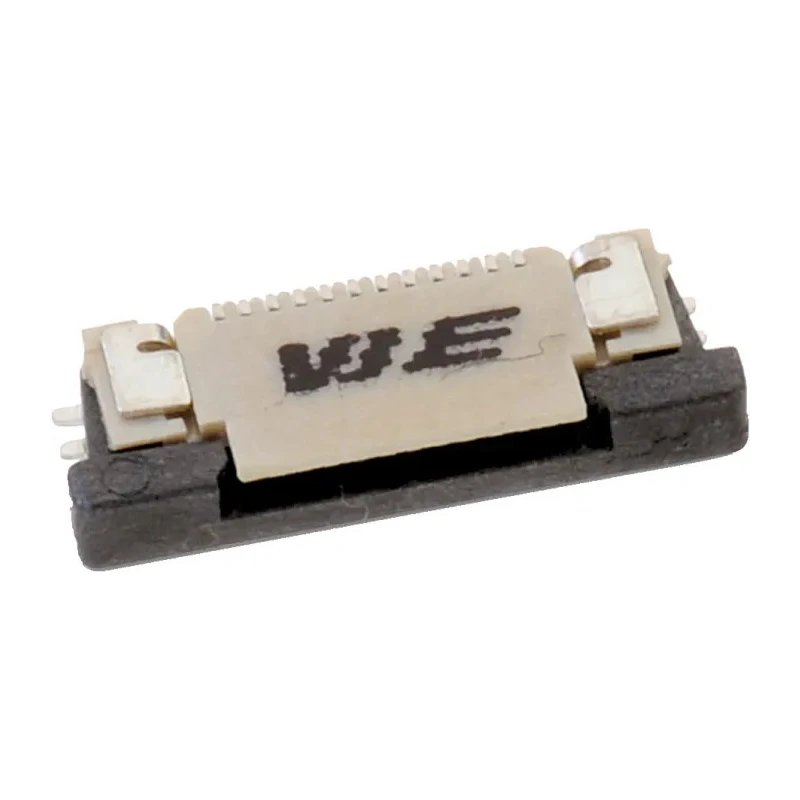

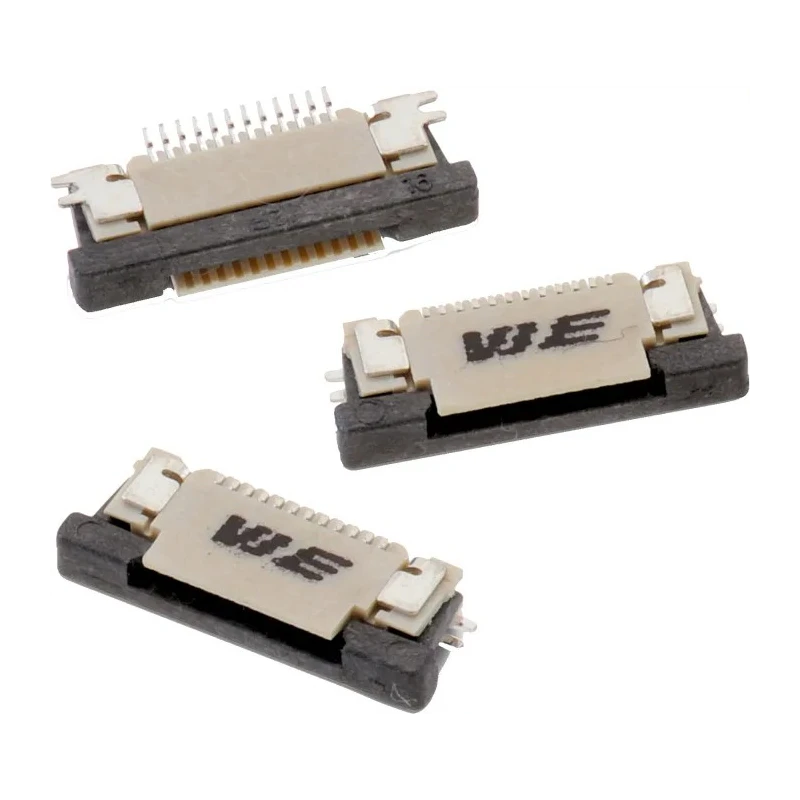

Wurth Elektronik WR-FPC 0.5 mm Pitch 36 Way Horizontal Female FPC Connector, ZIF Top Contact 68713614022

Wurth Elektronik 68713614022 is a 36 way horizontal female FPC connector with a 0.5 mm pitch, designed for surface mounting on printed circuit boards. The connector utilizes a Zero Insertion Force (ZIF) top contact termination, which facilitates easy and secure connection management in sensitive electronic assemblies.

Manufactured with phosphor bronze contacts, this connector ensures durability and excellent electrical performance. The contacts are plated with tin over nickel to provide enhanced conductivity and resistance against corrosion. The housing is made of Liquid Crystal Polymer (LCP), a high-performance material that offers excellent mechanical stability and electrical insulation.

The connector is optimized for use in compact electronic components and devices, where space-saving and reliable connections are essential. The top contact position and horizontal orientation facilitate integration in dense PCB layouts. A locking mechanism is provided to secure the connected cables firmly during operation, preventing accidental disconnections.

This component supports a voltage rating of up to 50 volts and operates reliably in temperature ranges from -25°C to 85°C, suitable for various industrial and consumer electronic applications. Brass solder tabs complement the design, ensuring stable and efficient solder joints during assembly.

The Wurth Elektronik WR-FPC 68713614022 connector is ideal for use in electronics manufacturing, automotive electronics, telecommunications, and general industrial equipment where FPC connections are required. Its robust design and reliable materials contribute to long-term operational stability and performance.

Surface mount design suitable for printed circuit boards. Constructed with phosphor bronze contacts for durability. Features a locking mechanism to ensure secure connection. Operates at voltage up to 50V with high insertion force ZIF technology.

Housing made from rigid Liquid Crystal Polymer for stability and insulation. Top contact position oriented horizontally for compact assembly. Contact plating of tin over nickel to improve conductivity and corrosion resistance.

Supports operating temperature range from -25°C to 85°C. Includes brass solder tabs for reliable solder connections.
