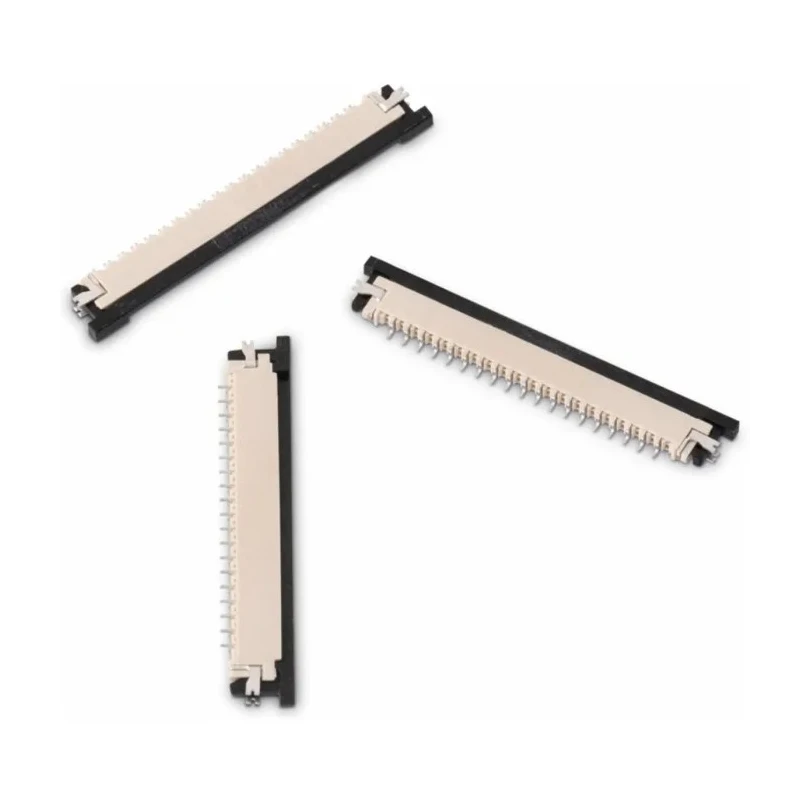

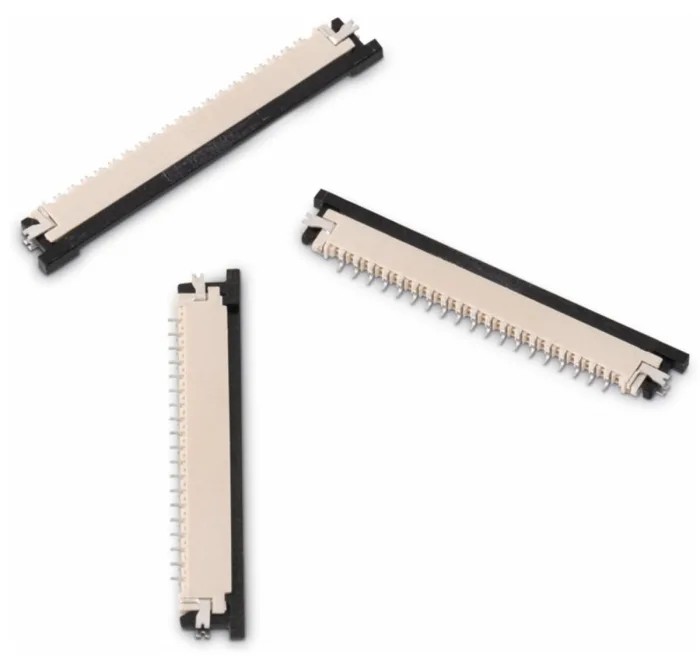

Wurth Elektronik WR-FPC 1 mm Pitch 10 Way Horizontal Female FPC Connector Surface Mount 686110183522
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 800mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a low profile, space-saving design ideal for high density PCB applications.
- Includes a rotating flip lock actuator to enable zero insertion force (ZIF) for easy and secure FPC cable insertion.
- Constructed with phosphor bronze contacts plated with tin over nickel to ensure reliable electrical conductivity.
- Housing is made from durable liquid crystal polymer providing robust mechanical strength.
- Handles a current rating of 800 mA and voltage rating of 50 V AC for dependable performance.
- Operating temperature range from -25°C to 85°C suits diverse environments.
- Brass solder tabs enhance secure mounting to PCB and prevent connector displacement.
- Bottom contact position with single row design for compactness and versatility.
Product Description
Wurth Elektronik model 686110183522 is a 10 contact Female Flat Printed Circuit (FPC) Connector with a 1 mm pitch, featuring horizontal orientation and surface mount termination. This connector belongs to the WR-FPC series known for its low profile of 1.2 mm height, ideal for miniaturized high density PCB assemblies.
The connector incorporates a user-friendly zero insertion force (ZIF) flip lock actuator that rotates fully to open for easy flexible flat cable insertion and then locks firmly ensuring a secure electrical and mechanical connection. The contacts are made from phosphor bronze with tin over nickel plating, providing excellent conductivity alongside durability.
The connector housing is constructed from liquid crystal polymer, which provides good thermal and mechanical stability for demanding industrial, laboratory, and commercial electronics applications. The current handling capability is 800 mA with a voltage rating of 50 V AC, suitable for low voltage electronic devices.
Operating temperature extends from -25°C to 85°C, allowing deployment in varied environmental conditions. The single row connector is horizontally oriented with bottom contacts and includes brass solder tabs on each side to mechanically secure the connector to the printed circuit board.
This Wurth Elektronik WR-FPC Connector is widely used in sectors such as consumer electronics, industrial machinery, medical devices, and other high density electronic assemblies involving displays and touch interfaces.
Low profile design enables compact, high density PCB layouts. Flip lock actuator provides zero insertion force for cable stability. Phosphor bronze contacts plated with tin over nickel for reliability. Durable liquid crystal polymer housing.
Suitable for currents up to 800mA and voltages up to 50 V AC. Operating temperatures from -25°C to 85°C. Brass solder tabs enhance mechanical retention on PCB. Single row, horizontal bottom contact configuration. Used in consumer electronics, industrial, and medical applications.
Explore more connectors and electronic components from Wurth Elektronik and find suitable parts for your electronic design and production needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 800 mA and a voltage rating of 50 V AC, making it suitable for low voltage electronic devices.
The connector features a horizontal orientation and is designed for surface mounting on PCBs.
The housing is made from liquid crystal polymer, while the contacts are constructed from phosphor bronze and plated with tin over nickel for reliable conductivity.
It operates within a temperature range of -25°C to 85°C, allowing for use in diverse environments.
This model features 10 contacts, designed for efficient connectivity in electronic assemblies.
The pitch size of this connector is 1 mm, which is suitable for high density PCB applications.
It incorporates a zero insertion force (ZIF) flip lock actuator, which allows for easy and secure insertion of flexible flat cables.
This connector has a single row design with bottom contacts, enhancing compactness and versatility in PCB layouts.
It is widely used in consumer electronics, industrial machinery, medical devices, and other high density electronic assemblies involving displays and touch interfaces.
Brass solder tabs on each side of the connector enhance mechanical retention and prevent displacement on the PCB.
This model is part of the WR-FPC series, known for its low profile and compact design suitable for high density applications.
The connector is manufactured in India, ensuring quality production standards.
