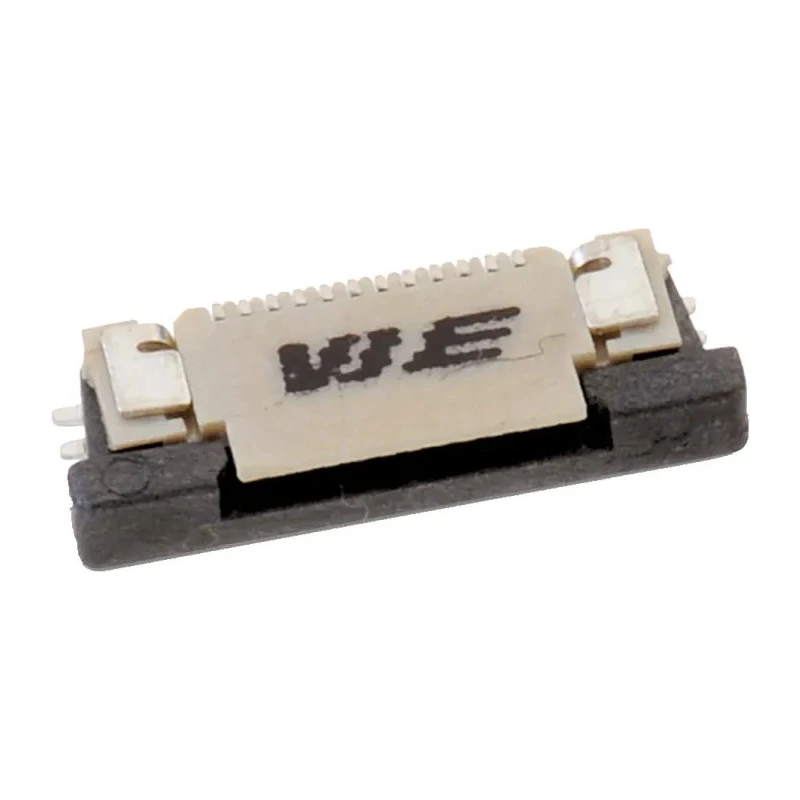

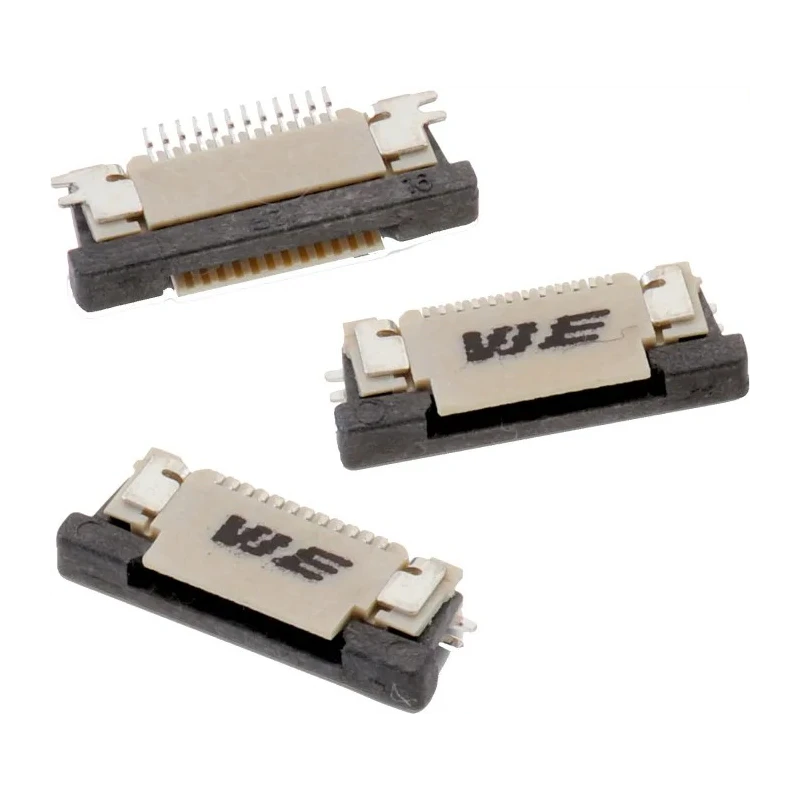

Wurth Elektronik WR-FPC 0.5 mm Pitch 35 Way Horizontal Female FPC Connector ZIF Top Contact 68713514022
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF Top Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 35 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
| Solder Tabs | Brass |
| Insulator Material | LCP |
Key Features
- This FPC connector has 35 contacts suitable for fine-pitch applications.
- It uses phosphor bronze contact material for reliable electrical performance.
- The connector has a surface mount type and horizontal orientation.
- Features a Zero Insertion Force (ZIF) top contact termination with locking mechanism for secure connection.
- Housing is made of durable liquid crystal polymer (LCP) material.
- Contact plating consists of tin over nickel ensuring corrosion resistance.
- Suitable for PCB interconnections in electronic assemblies.
- Manufactured in China with new product condition.
Product Description
Wurth Elektronik 68713514022 is a high-precision 35 Way Horizontal Female FPC Connector with a 0.5 mm pitch, designed for surface mount technology applications. This connector features a Zero Insertion Force (ZIF) top contact termination, which significantly reduces insertion force during assembly, thereby minimizing wear and potential damage to delicate FPC cables.
The contacts are made from phosphor bronze, providing excellent conductivity and mechanical strength, while the contact plating of tin over nickel increases corrosion resistance in diverse operating environments. The housing material is liquid crystal polymer (LCP), known for its excellent mechanical and thermal stability, supporting continuous operation in temperatures ranging from -25°C to 85°C.
Designed with a horizontal orientation and locking mechanism, it ensures secure and stable connections in compact electronic assemblies. This connector supports a maximum voltage of 50 V and is ideal for applications requiring reliable signal integrity and mechanical durability.
Typical use cases include interconnecting flexible printed circuits to PCBs in telecommunications, industrial control equipment, consumer electronics, and other electronic devices requiring compact and reliable connection solutions.
This FPC Connector has 35 contacts suitable for fine-pitch applications. It uses phosphor bronze contact material for reliable electrical performance. The connector has a surface mount type and horizontal orientation. Features a Zero Insertion Force (ZIF) top contact termination with locking mechanism for secure connection.
Voltage rated up to 50 V with an operating temperature range from -25°C to 85°C. Housing is made of durable liquid crystal polymer (LCP) material. Contact plating consists of tin over nickel ensuring corrosion resistance.
Suitable for PCB interconnections in electronic assemblies. Manufactured in China with new product condition. Explore the full range of Wurth Elektronik connectors and components available at EnvMart to meet your specialized electronics manufacturing and prototyping needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this FPC connector is 0.5 mm, making it suitable for fine-pitch applications.
This model features 35 contacts, designed for reliable electrical performance in electronic assemblies.
The maximum voltage rating for this connector is 50 V.
The housing is made of liquid crystal polymer (LCP), while the contacts are made from phosphor bronze with a tin over nickel plating for corrosion resistance.
This connector operates within a temperature range of -25°C to 85°C.
It features a Zero Insertion Force (ZIF) top contact termination, which reduces insertion force during assembly.
The orientation of this connector is horizontal, which helps in compact electronic assemblies.
This connector supports surface mounting, suitable for various electronic applications.
The contacts in this connector are female, allowing for secure connections with compatible components.
This connector is manufactured in China.
It is suitable for interconnecting flexible printed circuits to PCBs in telecommunications, industrial control equipment, and consumer electronics.
The contact position in this connector is at the top, facilitating easy access and connection.
