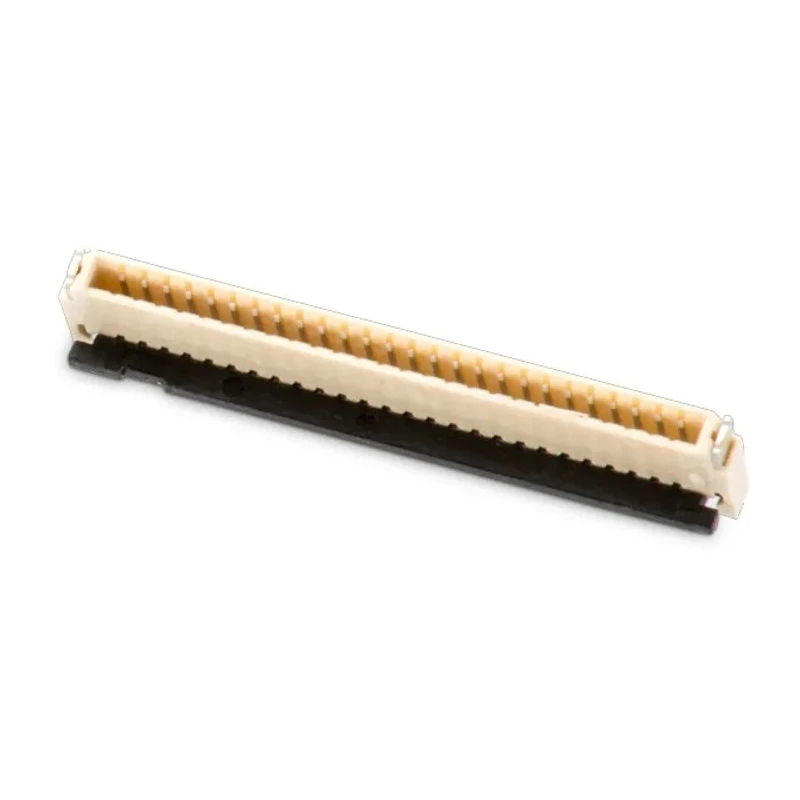

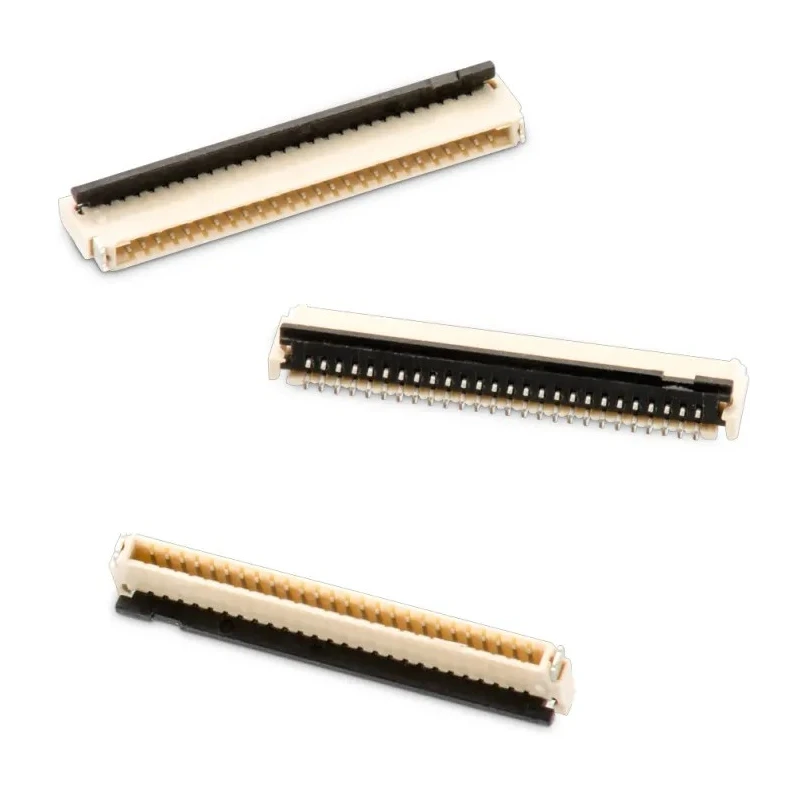

Wurth Elektronik WR-FPC 0.5 mm Pitch 40 Way Horizontal Female FPC Connector ZIF 687140182122

Wurth Elektronik 687140182122 is a high-precision FPC Connector designed for electronic components requiring reliable and secure connections with a 0.5 mm pitch and 40 contacts. It incorporates phosphor bronze dual contacts and a Zero Insertion Force (ZIF) termination type for easy and damage-free insertion and removal. The connector is horizontally oriented and features locking mechanisms to ensure stable connections in various electronic assemblies.

The housing of this FPC connector uses Liquid Crystal Polymer (LCP), providing excellent mechanical strength and thermal stability. The contact plating consists of tin over nickel, enhancing conductivity and corrosion resistance. The solder tabs are fabricated from brass to facilitate sturdy attachment to circuit boards via surface mount technology.

This FPC connector supports a current rating of 500mA and withstands voltages up to 50V, making it suitable for low power electronic applications such as PCB connectors and wire housing assemblies. The device is capable of reliable operation across extreme temperatures from -55°C up to 85°C, suitable for industrial, electronic manufacturing, and testing environments.

Applications include use in commercial electronics, communications equipment, and embedded systems that require compact and resilient connector technology. The dual contact position and horizontal layout help optimize space in densely packed PCB designs. The locking mechanism secures the connector firmly, preventing disconnections due to vibration or handling.

Constructed with phosphor bronze contacts plated with tin over nickel. Liquid Crystal Polymer housing provides mechanical and thermal durability. Surface mount device with brass solder tabs for strong PCB attachment. Zero Insertion Force (ZIF) termination enables easy mating and unmating.

Supports nominal current 500mA and voltage 50V for low power circuits. Operating temperature range from -55°C to 85°C suits industrial applications. Horizontal orientation and locking mechanism ensure secure fit and space efficiency.

Ensure high-quality electronic connectivity with the Wurth Elektronik WR-FPC 0.5 mm Pitch 40 Way Horizontal Female FPC Connector, model 687140182122. Explore more in the FPC Connector category on EnvMart for additional options and component solutions.
