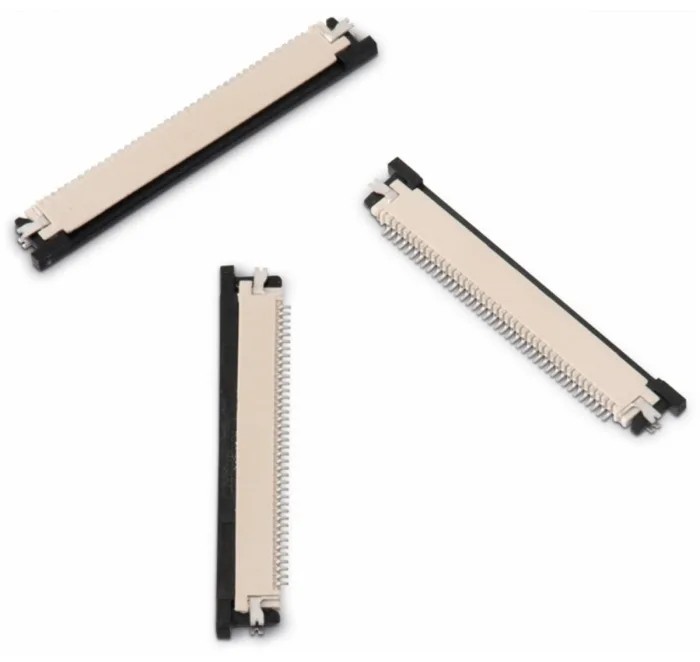

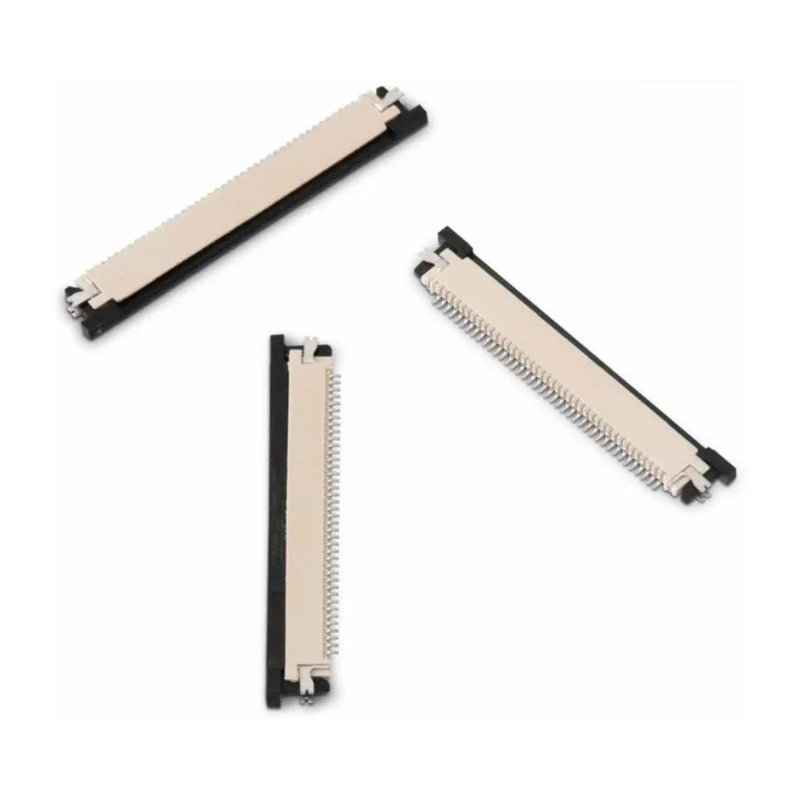

Wurth Elektronik WR-FPC 0.5 mm Pitch 6 Way Horizontal Female FPC Connector Surface Mount 687106183622
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 400mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- Low profile design ideal for high density applications.
- Flip lock actuator provides easy FPC insertion and high retention force.
- Solder tabs secure connector firmly to PCB.
- Top contact position with horizontal orientation.
- Supports a rated current of 400mA and voltage up to 50V ac.
- Wide operating temperature range from -25°C to 85°C.
- Contact material is phosphor bronze plated with tin over nickel.
- Housing made from durable liquid crystal polymer.
Product Description
Wurth Elektronik 687106183622 is a 6 way horizontal female FPC Connector with a 0.5 mm pitch designed for surface mount technology. Featuring a low profile height of 1.2 mm and a zero insertion force (ZIF) flip lock actuator, this connector allows easy insertion of flexible printed circuits (FPC) while providing reliable electrical and mechanical retention. The actuator rotates fully to open for FPC insertion and locks back to secure the FPC firmly in place.
The connector includes brass solder tabs on either side for secure mounting on printed circuit boards. Made of phosphor bronze contacts plated with tin over nickel and housed in liquid crystal polymer, the connector ensures durability and reliable performance over a wide temperature range from -25°C to +85°C. It supports currents up to 400mA and voltages of 50V ac, meeting the demands of high-density miniaturized applications.
Ideal for consumer electronics such as tablets, mobile phones, and personal computers, as well as business, industrial, and medical equipment, this WR-FPC series connector offers flexibility with its horizontal orientation and top contact position. Its locking mechanism enhances connection security in compact spaces.
Wurth Elektronik's WR-FPC series connectors are engineered for efficient PCB design while maintaining strong electrical contact and mechanical stability. This specific model, part number 687106183622, is well-suited for applications requiring reliable flexible circuit connections in compact formats.
Low profile design ideal for high density applications. Flip lock actuator for easy FPC insertion and high retention force. Solder tabs for secure retention on PCB. Top contact position with horizontal orientation. Supports 400mA current and 50V ac voltage.
Operating temperature range -25°C to 85°C. Phosphor bronze contacts plated with tin over nickel. Housing made of liquid crystal polymer for durability. Single row, 6 contact positions with locking mechanism. Suitable for consumer, industrial, medical and business electronics.
Explore a wide range of Wurth Elektronik connectors and other electronic components at EnvMart to match your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a rated current of 400mA and a voltage of up to 50V ac.
The contact material is phosphor bronze plated with tin over nickel, and the housing is made from liquid crystal polymer.
The operating temperature range is from -25°C to 85°C.
The flip lock actuator allows for zero insertion force (ZIF) insertion, fully rotating to open for easy FPC insertion and locking back to secure the FPC firmly in place.
The pitch size is 0.5 mm.
This model has 6 contact positions.
It uses surface mount technology for installation.
The contacts are positioned in a horizontal orientation with a top contact position.
Yes, it features a low profile design that is ideal for high-density applications.
It is suitable for consumer electronics like tablets and mobile phones, as well as business, industrial, and medical equipment.
It features a zero insertion force (ZIF) mechanism for easy and secure FPC connections.
The country of origin for this connector is India.
