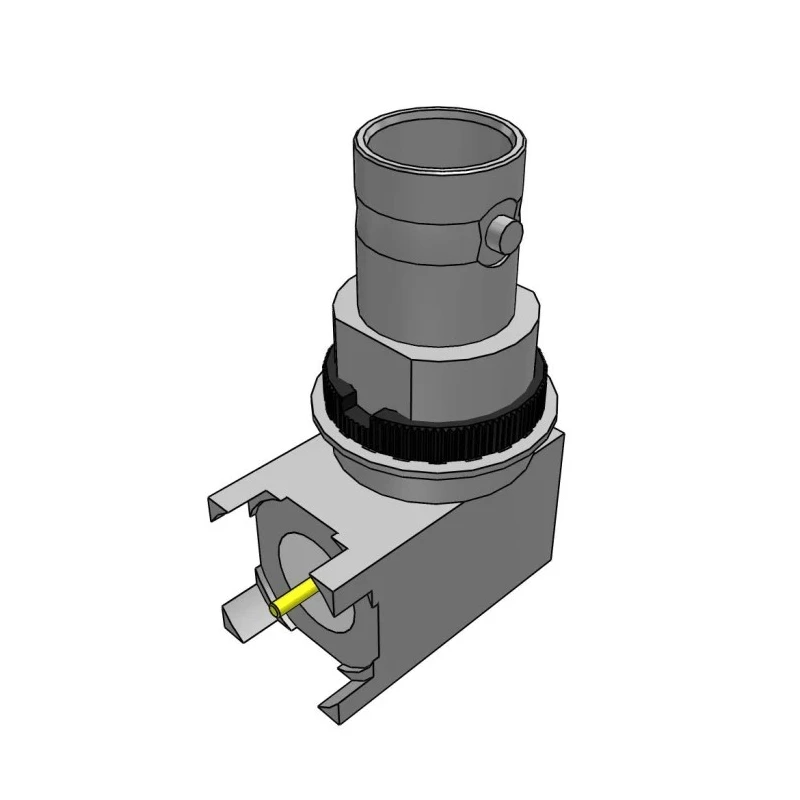

Samtec Coaxial Connector PCB Male BNC, 75 Ω, Right Angle Body, Through Hole Mount, 12 GHz Operating Frequency BNC7T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Right Angle |
| Model | BNC7T |
| Mount Type | PCB |
| Operating Frequency | 12GHz |
| Contact Material | Copper Alloy Phosphor Bronze |
| Series | BNC7T |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Gold |
Key Features
- Supports operating frequency up to 12 GHz.
- Features 75 ohm impedance to ensure signal integrity.
- Constructed with copper alloy phosphor bronze contacts for durability.
- Heavy gold plating on body for corrosion resistance and conductivity.
- Right angle orientation allows for compact PCB layouts.
- Designed for through hole mounting with bulkhead compatibility.
- Operates reliably between -65°C and 125°C temperature range.
Product Description
Samtec BNC7T Series Coaxial Connector PCB Male BNC is engineered for reliable high-frequency signal transmission with an operating frequency of up to 12 GHz. This connector features a 75 ohm impedance, suitable for precision RF applications in electronics and electrical assemblies.
Its right angle body configuration allows for efficient PCB layout and space-saving, while the through-hole mounting provides sturdy mechanical and electrical connection. The bulkhead design enhances mounting stability in panel applications.
Manufactured with copper alloy phosphor bronze contact material, combined with heavy gold plating on the body and nickel plating layers, this connector ensures excellent conductivity, corrosion resistance, and long service life under demanding industrial environments.
The connector supports a wide temperature range from -65°C to 125°C, making it suitable for various industrial, telecommunications, laboratory, and manufacturing use cases where robust performance is critical.
The normal polarity and male gender contacts comply with standard BNC connector configurations, facilitating easy integration with existing coaxial systems. Supports operating frequency up to 12 GHz. Features 75 ohm impedance to ensure signal integrity.
Constructed with copper alloy phosphor bronze contacts for durability. Heavy gold plating on body for corrosion resistance and conductivity. Right angle orientation allows for compact PCB layouts. Designed for through hole mounting with bulkhead compatibility.
Operates reliably between -65°C and 125°C temperature range.
Samtec BNC7T connectors are widely used in electronic components, power connectors, and RF coaxial connectors sectors, ideal for PCB mounting in telecommunications, aerospace, and laboratory equipment.
Browse EnvMart electronics component selections for compatible Coaxial Connectors and adapters to enhance your circuit designs with quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency of up to 12 GHz, making it suitable for high-frequency signal transmission.
It features a 75 ohm impedance, which is essential for maintaining signal integrity in RF applications.
The contacts are made from copper alloy phosphor bronze, and the body is heavily gold plated for enhanced conductivity and corrosion resistance.
This unit operates reliably within a temperature range of -65°C to 125°C, suitable for various industrial applications.
It is designed for through-hole mounting, providing a secure mechanical and electrical connection on PCBs.
This connector has a right angle orientation, allowing for compact PCB layouts and efficient use of space.
Yes, it has normal polarity and male gender contacts, complying with standard BNC connector configurations for easy integration.
It is widely used in telecommunications, aerospace, laboratory equipment, and other industrial applications requiring reliable RF connections.
Specific dimensions are not provided in the available data; however, it is designed for through-hole PCB mounting.
It is a coaxial connector type BNC, specifically designed for RF applications.
The body of this connector is heavily gold plated, which enhances its corrosion resistance and conductivity.
The country of origin for this connector is India.
