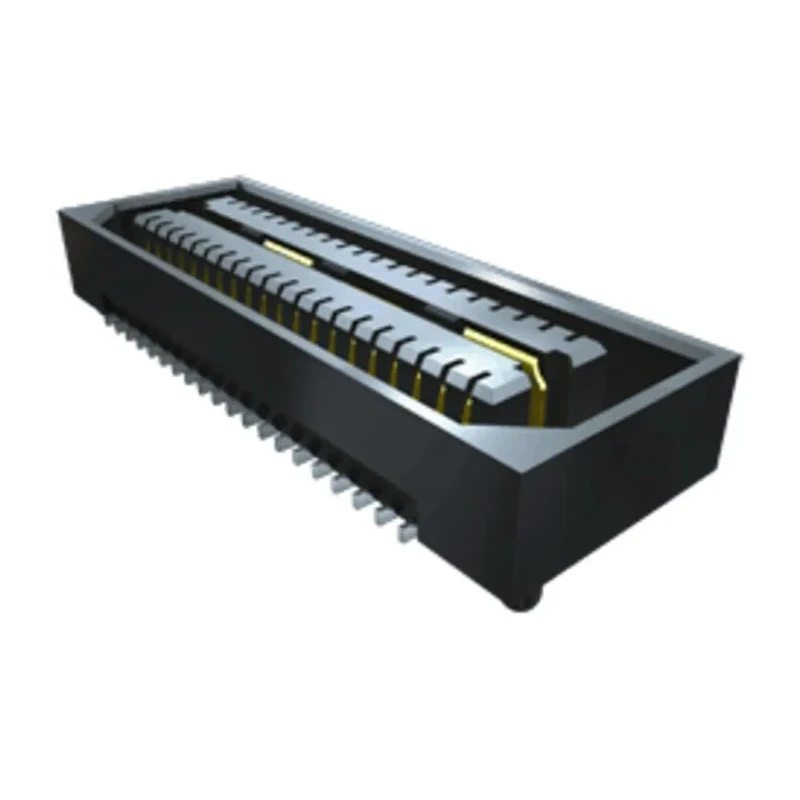

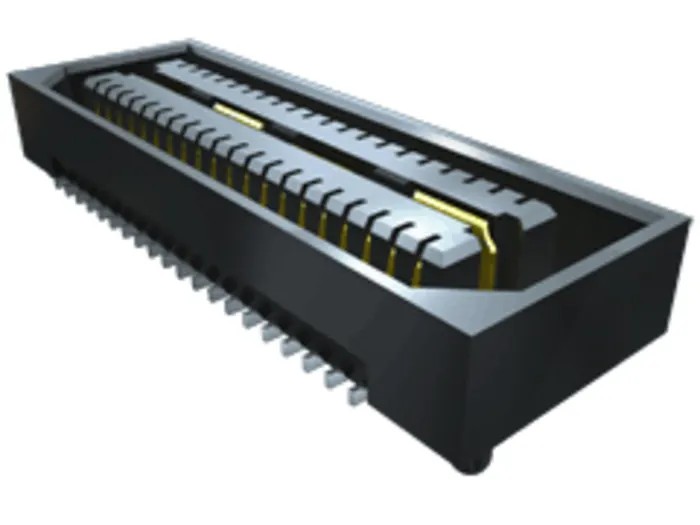

Samtec QSE Series Straight Surface PCB Socket 40-Contact 2 Row 0.8mm Pitch Solder QSE-020-01-F-D-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec QSE Series Straight Surface PCB Socket 40-Contact 2 Row 0.8mm Pitch Solder QSE-020-01-F-D-A

Name: Samtec QSE Series Straight Surface PCB Socket 40-Contact 2 Row 0.8mm Pitch Solder QSE-020-01-F-D-A
Brand: Samtec
SKU: 147909
Price: 6.37 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	225V
Brand	Samtec
Orientation	Straight
Current	23A
Model	QSE-020-01-F-D-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	QSE
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	40
Connector System	Board-to-Board
Stacking Height	5mm
Row Pitch	5.73mm

Key Features

This socket supports a current rating of 23A ensuring reliable power transmission.
The housing is made from durable Liquid Crystal Polymer for enhanced stability.
Its solder termination type provides strong and secure mounting on PCB surfaces.
Suitable for operation between -55°C to 125°C temperatures.
Features gold-plated bronze contacts to assure superior conductivity and corrosion resistance.
The stacking height is 5 mm with a row pitch of 5.73 mm for compact installation.
Designed as part of Samtec's QSE series offering up to 28+ Gbps signal integrity for high-speed interfaces.
The straight orientation facilitates ease of mating and alignment in board assemblies.

Product Description

Samtec QSE-020-01-F-D-A Straight Surface PCB Socket is a premium board-to-board connector featuring 40 contacts arranged in 2 rows with a precise 0.8 mm pitch for micro-pitch applications. This product is designed to deliver excellent electrical performance with a current rating of 23A and voltage rating of 225V. Constructed with a liquid crystal polymer housing, it offers excellent mechanical stability and heat resistance, suitable for operating temperatures from -55°C to 125°C.

The bronze contacts with gold plating ensure reliable signal transmission and minimize corrosion, extending connector life. The solder termination type provides robust mechanical and electrical connection to PCBs, while the straight orientation support simplifies assembly and alignment during manufacturing. The QSE series supports ultra-high speed data transmission up to 28+ Gbps, making it ideal for high-speed digital interfaces and demanding industrial and communication equipment.

With a compact stacking height of 5 mm and row pitch of 5.73 mm, this socket efficiently utilizes board space for dense electronic assemblies. The socket is engineered as an Extended Life Product™ (E.L.P.™) to deliver long term reliability in harsh operating environments.

This 0.80 mm pitch high speed socket is suitable for power or ground connections with an integral metal plane. Its blade & beam contact system provides ease of mating and alignment while maintaining signal integrity. Stack heights range from 5 mm to 25 mm, supporting various assembly requirements.

Operates reliably at temperatures from -55°C to 125°C. Ideal for industrial, telecommunications, and computing applications requiring robust and compact board-to-board connections. Connector system designed specifically for board-to-board connection architecture.

Liquid crystal polymer housing ensures low signal degradation and excellent durability. Complies with no specific standards or certifications but is built to industry-accepted quality and reliability norms.

Explore the extensive range of Samtec PCB Sockets at EnvMart for high-performance electronic components and connectors. Browse our catalog to find compatible connectors, sockets, and accessories for your industrial, manufacturing, and electronic development applications.
