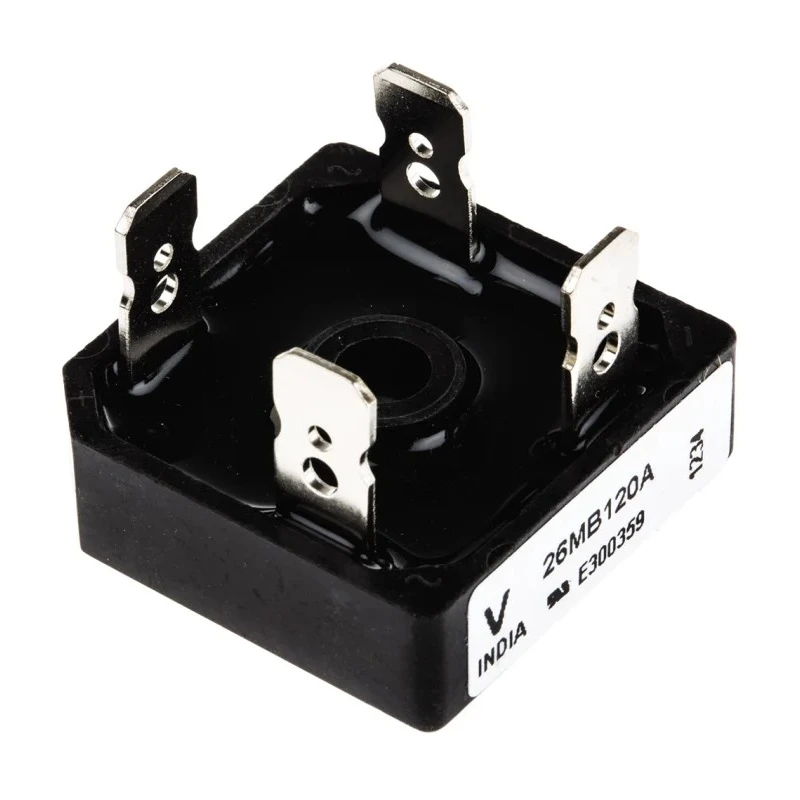

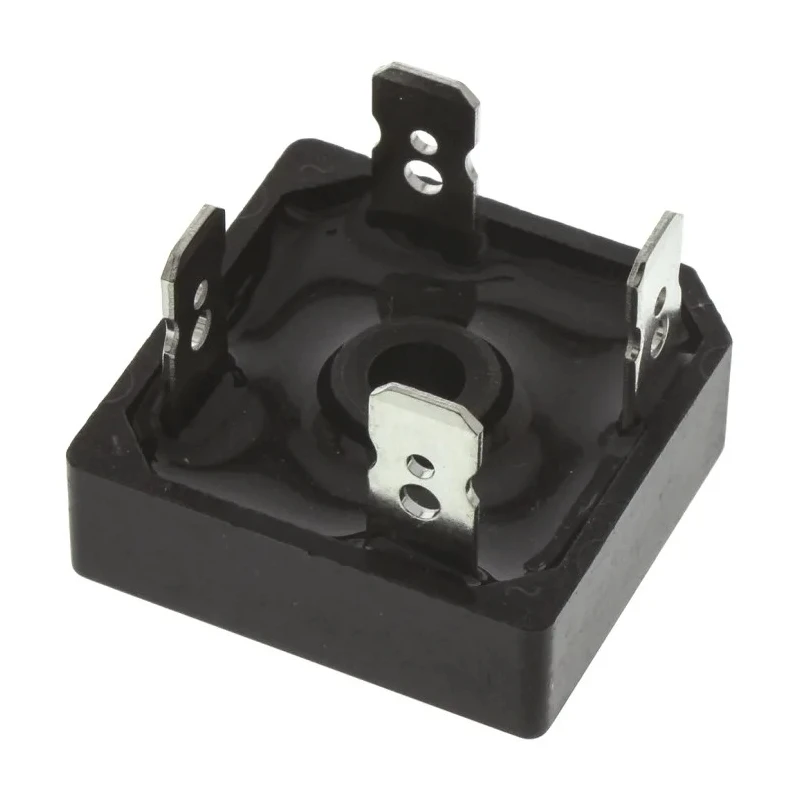

Vishay Single Phase Bridge Rectifier 1200 V 420 A Screw Mount D-34 Package 4-Pin VS-26MB120A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 9.8mm |
| Length | 28.5mm |
| Model | VS-26MB120A |
| Width | 28.5mm |
| Mount Type | Screw |
| Series | VS-26MB |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-34 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 420A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1.11V |
| Universal, 3 way terminals | push-on, wrap around, or solder |
| Vishay Bridge Rectifier, 1200 V 420 A, 4-Pin SingleBrand | Vishay |
Key Features
- Designed for high thermal conductivity with an electrically insulated case.
- Universal 3-way terminals supporting push-on, wrap around, or solder connections.
- Capable of operating at temperatures from -55°C to 150°C.
- Nickel-plated terminals compatible with lead-free soldering alloys SAC305.
- Provides excellent power-to-volume ratio ideal for instrumentation and general purpose applications.
- Approved under UL E300359 standards for industrial reliability.
- Compact encapsulated design ensures efficient full-wave rectification.
- Pin count of 4 for electrical configuration as a single bridge rectifier.
Product Description
Vishay VS-26MB120A is a compact, encapsulated single phase bridge rectifier engineered for efficient and reliable operation with a maximum peak reverse voltage of 1200 V and surge forward current of 420 A.
This device is housed in a D-34 package and features a screw mount type ensuring secure installation. Its electrically insulated high thermal conductivity package supports thermal management for industrial, instrumentation, and general-purpose electronic applications.
The 4-pin configuration facilitates single-phase full-wave rectification, converting AC to DC for various circuit requirements. Operating temperature ranges from -55°C minimum to 150°C maximum, enabling performance stability in harsh environments.
Vishay designed universal 3-way terminals enable push-on, wrap-around, or solder connections with nickel-plated terminals compatible with lead-free solder alloys (SAC305) at soldering temperatures between 260°C to 275°C.
This bridge rectifier is UL E300359 approved, confirming its adherence to industry safety and reliability standards, making it suitable for industrial, laboratory, and commercial electronic applications requiring robust rectification solutions.
Universal mounting and terminal options for flexible installation. High surge current rating for demanding electrical loads. Compact size optimized for space-constrained designs. Suitable for general instrumentation and full-wave rectification.
Nickel plating assures long-term reliability and solderability. Explore more semiconductor components and Bridge Rectifiers with Vishay quality at EnvMart for advanced electronic system designs.
