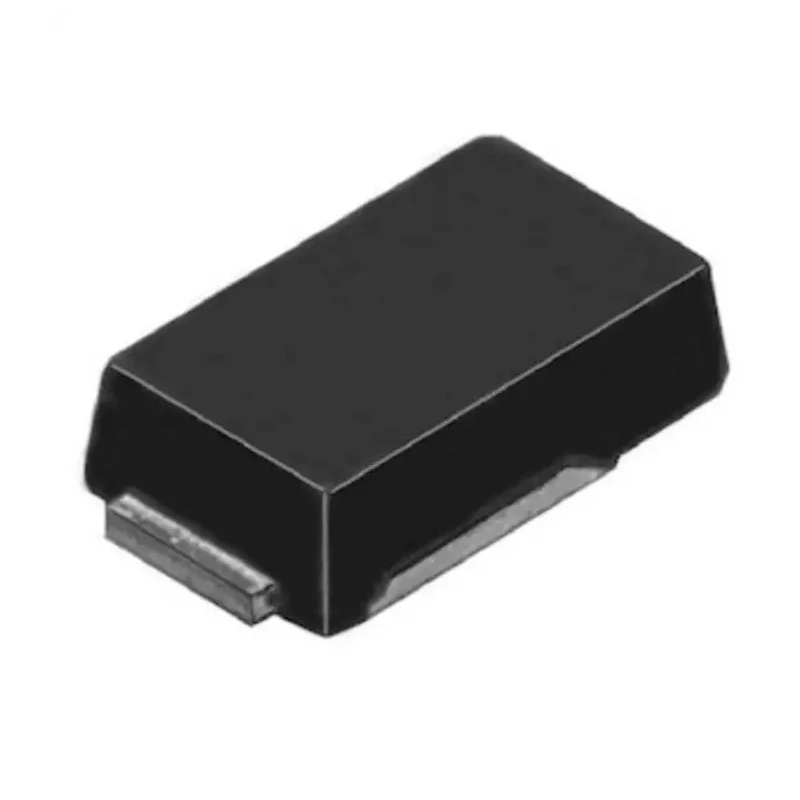

Vishay 200 V 1 A General Purpose Diode 2-Pin Surface Mount DO-220AA VS-1ENH02-M3/84A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 4mm |
| Model | VS-1ENH02-M3/84A |
| Width | 2.18mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-220AA |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 0.92V |
Key Features
- Designed for fast switching speeds with low forward voltage drop.
- Maximum continuous forward current of 1 ampere.
- Peak reverse repetitive voltage rating of 200 volts.
- Low power losses and low leakage current ensure high efficiency.
- Suitable for high frequency inverters, DC/DC converters, and polarity protection.
- Complies with RoHS standards and automotive AEC-Q101.
- Wide operating temperature range from -55°C to 175°C.
- Single diode configuration with 2-pin DO-220AA surface mount.
Product Description
Vishay VS-1ENH02-M3/84A is a high-performance general purpose diode designed for industrial and automotive semiconductor applications. It operates at a maximum continuous forward current of 1 ampere and withstands up to 200 volts peak reverse repetitive voltage. The diode features a 2-pin DO-220AA surface mount package, ensuring compatibility with automated PCB assembly processes.
This diode provides fast switching capabilities paired with a low forward voltage drop of 0.92 V, which minimizes power losses and improves overall circuit efficiency. It operates reliably across a broad temperature range from -55°C up to 175°C, making it suitable for demanding environments.
The diode is ideal for use in high-frequency inverters, freewheeling circuits, DC/DC converters, and polarity protection in commercial, industrial, and automotive electronic applications. Compliance with RoHS and AEC-Q101 automotive standards further ensures its quality and reliability.
Its compact form factor (4 mm length, 2.18 mm width, 1.15 mm height) and single diode configuration simplify design integration while supporting robust surge current capacity up to 40 amperes peak non-repetitive forward current.
Designed for fast switching speeds with low forward voltage drop. Maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage rating of 200 volts. Low power losses and low leakage current ensure high efficiency.
Suitable for high frequency inverters, DC/DC converters, and polarity protection. Complies with RoHS standards and automotive AEC-Q101. Compact package dimensions: 4 mm length, 2.18 mm width, 1.15 mm height. Wide operating temperature range from -55°C to 175°C.
Single diode configuration with 2-pin DO-220AA surface mount. High peak non-repetitive forward surge current capacity of 40 A.
This diode is a reliable component choice for semiconductor designs requiring efficient power rectification and protection under diverse electrical and environmental conditions. Explore more Vishay semiconductors and related electronic components at EnvMart to meet your industrial and commercial needs.
Explore more products in our Schottky Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1 ampere.
This model has a peak reverse repetitive voltage rating of 200 volts.
The dimensions of the DO-220AA package are 4 mm in length, 2.18 mm in width, and 1.15 mm in height.
It operates within a temperature range from -55°C to 175°C.
The maximum forward voltage drop is 0.92 volts.
This diode is suitable for high-frequency inverters, DC/DC converters, and polarity protection.
The peak non-repetitive forward surge current capacity is 40 amperes.
It complies with the AEC-Q101 automotive standard.
This diode has a pin count of 2.
The rectifier type of this diode is general purpose.
This model complies with RoHS standards.
The peak reverse current is rated at 20 microamperes (20μA).
