| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Length | 0.194mm |
| Model | B130-E3/61T |
| Width | 0.110in |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | 65°C |
| Standards/Approvals | JESD 201 Class 1A, RoHS, UL 94 V-0 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 6mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 0.75V |

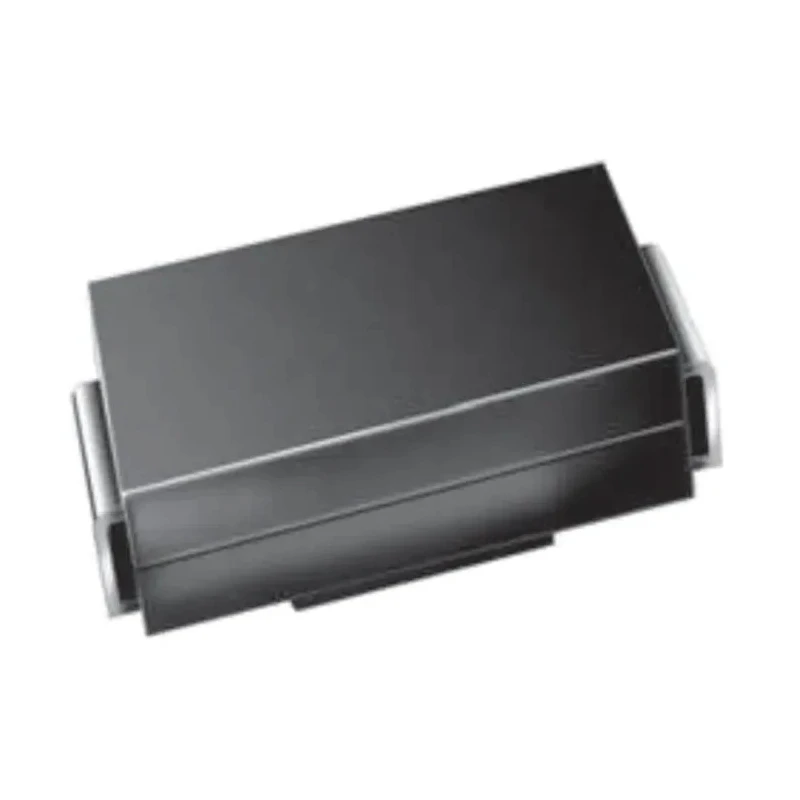

Vishay B130-E3/61T is a surface mount Schottky rectifier and diode designed for efficient low voltage, high frequency inverter and DC/DC converter applications. Packaged in a compact DO-214AC 2-pin form, this diode emphasizes low forward voltage drop and high surge current capabilities.
The maximum continuous forward current is 1 ampere with a peak reverse repetitive voltage of 30 volts, making it ideal for freewheeling circuits and polarity protection. Its peak non-repetitive forward surge current rating of 30 amperes supports transient spike tolerance.
The device operates reliably within a broad temperature range from -65°C to 125°C, suited for automotive and industrial electronics environments. The footprint dimensions of 0.194 mm length and 0.110 inch width enable compact PCB layouts optimized for automated soldering processes.
Certified to JESD 201 Class 1A, RoHS compliant, and UL 94 V-0 flame retardant, the diode ensures safety and environmental compliance. It is manufactured in China under new product condition standards.
The diode features low forward voltage of 0.75 V ensuring energy efficiency. Its pin count of 2 simplifies integration into electronic circuits. Surface mount mount type facilitates automated assembly techniques. Compliance with industrial standards guarantees quality and reliability.
Compact design supports use in densely populated electronic boards. Robust temperature range allows use in demanding operating conditions. Peak reverse current limited to 6 mA improves device stability.
This Vishay Schottky diode is widely used in industrial and electronic component manufacturing, including power supplies, DC/DC converters, automotive electronics, and semiconductor discrete device applications. Its reliable performance and efficient design make it a preferred choice for engineers and manufacturers seeking durable diode components.
Explore more semiconductor and Schottky Diode products at EnvMart for your diverse electronic design and manufacturing needs.
