| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 1.2mm |
| Length | 3.1mm |
| Model | DTC124ECAHZGT116 |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | DTC124ECAHZG |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 56 |
| Transistor Polarity | NPN |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 350mW |
| Nexperia PDTC124ET,215 Digital Transistor, 100 mA NPN, 50 V, 3-Pin SOT-23Brand | Nexperia |

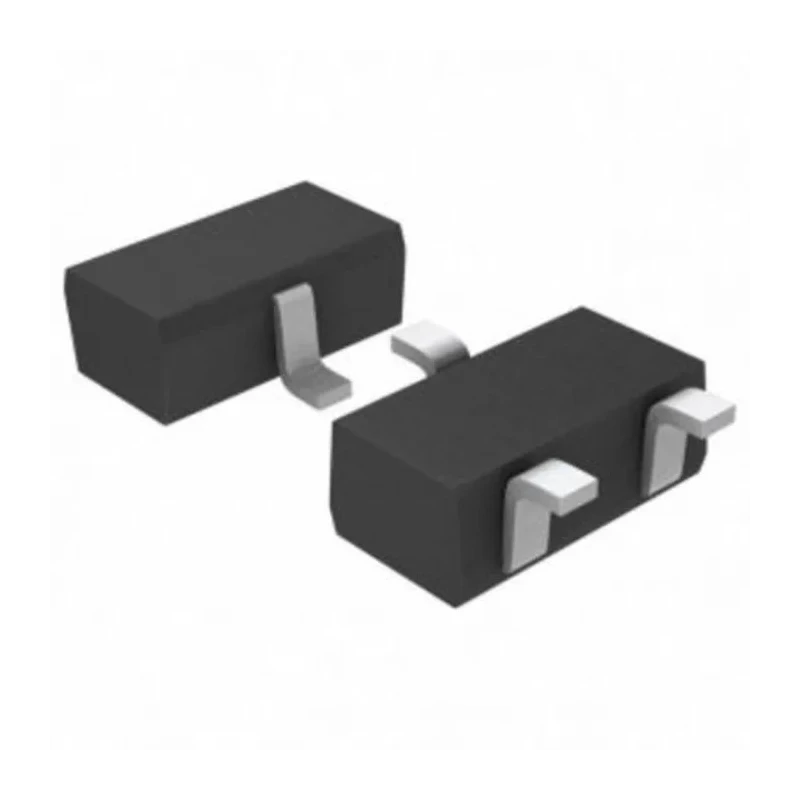

The ROHM DTC124ECAHZGT116 digital transistor is a high-quality NPN bipolar transistor designed in a compact surface mount SOT-23 package. Its integrated bias resistor simplifies inverter circuit design by eliminating the need for external input resistors. This feature streamlines circuit development in industrial electronics and embedded systems.
With a maximum collector-emitter voltage rating of 50 V and power dissipation capacity of 350 mW, this device reliably supports moderate power switching and amplification tasks. The minimum DC current gain (hFE) of 56 ensures efficient signal amplification for interface and driver circuits.
Constructed to withstand operating temperatures up to 150°C, the transistor is suitable for demanding automotive and industrial environments, complying with the AEC-Q101 standard for automotive applications. Its small SOT-23 footprint (3.1 mm length × 1.5 mm width × 1.2 mm height) enables space-saving PCB layouts.
This digital transistor is particularly useful in inverter circuits and driver signal processing, offering ease of design combined with robust electrical performance. The built-in bias resistor and transistor simplify circuit architecture, reducing component count and assembly complexity.
3-pin NPN digital transistor with built-in bias resistor. SOT-23 surface mount package for compact PCB design. Max collector-emitter voltage: 50 V. Maximum power dissipation: 350 mW. Minimum DC current gain hFE: 56. Maximum operating temperature: 150°C.
Automotive standard compliant: AEC-Q101. Dimensions: 3.1 mm (L) × 1.5 mm (W) × 1.2 mm (H).
Ideal for industrial, automotive, and embedded applications requiring reliable switching and amplification functionalities. This transistor is a high-performance choice in discrete semiconductor components for electronics manufacturing.
