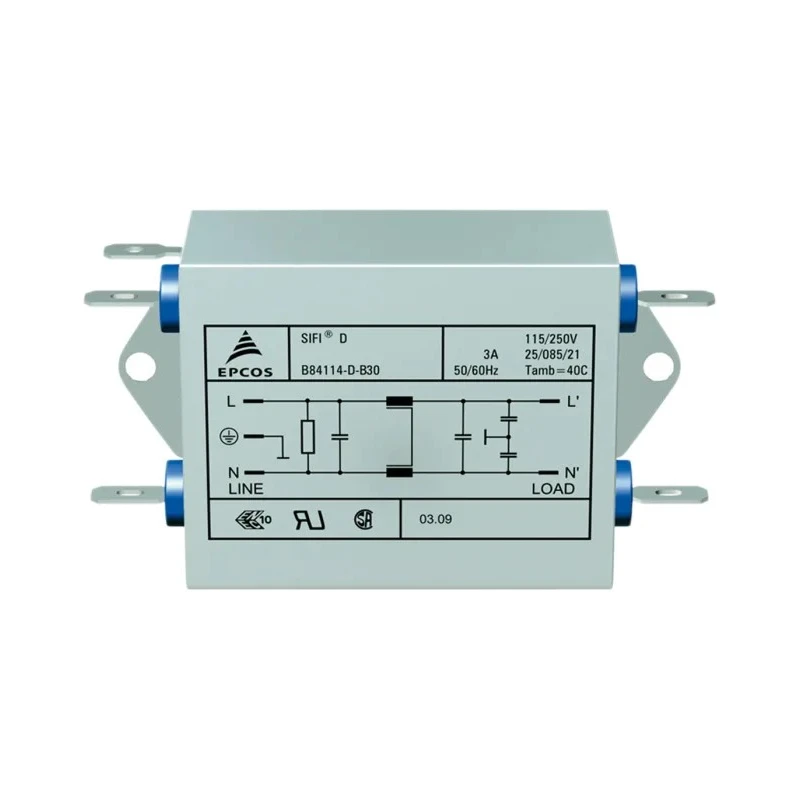

TDK Flange EMC Filter 3 A 250V AC 50Hz/60Hz Single Phase Tab Termination B84114D0000B030

Free Delivery in India | Lowest Global Shipping Charges

TDK Flange EMC Filter 3 A 250V AC 50Hz/60Hz Single Phase Tab Termination B84114D0000B030



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	28.6mm
Length	89.5mm
Model	B84114D0000B030
Depth	50.8mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	B84114D
Maximum Operating Temperature	85°C
Number Of Stages	1
Capacitance	2pF
Minimum Operating Temperature	-25°C
Maximum Current	3A
Number of Phases	1
Leakage Current	369μA
Maximum Voltage	250V ac
Inductance	2mH
Standards/Approvals	UL 1283
Termination Style	Tab
TDK, B84112G 3 A 250V ac/dc 60Hz, Chassis Mount RFI Filter, Screw 1 PhaseBrand	TDK

Key Features

High attenuation from large capacitance and inductance values.
Suitable for switch mode power supplies in electronic equipment.
Low leakage current of 369 microamperes.
Aluminium casing ensures durability and shielding.
Mounting via flange with tab termination style.
Operates reliably between -25°C to 85°C.
UL recognized and compliant with multiple safety standards.

Product Description

The TDK B84114D0000B030 flange EMC filter is engineered for effective electromagnetic interference suppression in single-phase 250V AC electrical circuits operating at 50 to 60 Hz. This filter features high attenuation capabilities achieved through designed capacitance and inductance values of 2 pF and 2 mH respectively, offering robust noise reduction for switch mode power supplies in electronic equipment.

Constructed with an aluminium case, it combines lightweight durability with shielding effectiveness. Its flange mounting and tab termination ensure straightforward installation in various industrial and commercial electrical assemblies.

The device maintains low leakage current at 369 microamperes, minimizing unwanted power loss and enhancing system safety. Designed for operation over a temperature range from -25°C to 85°C, this filter suits varied environmental conditions.

Compact dimensions measuring 89.5 mm in length, 50.8 mm in depth, and 28.6 mm in height make it space-efficient for integration in constrained enclosures. The filter complies with UL 1283 standards and is UL recognized, CSA certified, with approvals from VDE, SEV, SEMKO, and DEMKO, emphasizing its reliability and safety in industrial applications.

Typical industrial use cases include power line filtering in manufacturing equipment, laboratory devices, HVAC systems, and electronic communication apparatus. Its design supports noise reduction and EMI compliance critical to meeting quality and regulatory standards in electrical installations.

This product is made in China and supplied new, assuring consistent quality and performance for demanding industrial and electronic component needs. High attenuation from large capacitance and inductance values. Suitable for switch mode power supplies in electronic equipment.

Low leakage current of 369 microamperes. Aluminium casing ensures durability and shielding. Mounting via flange with tab termination style. Operates reliably between -25°C to 85°C. Compact dimensions: 89.5 mm length, 50.8 mm depth, and 28.6 mm height.

UL recognized and compliant with multiple safety standards. Explore more EMC Filters and industrial electronic components on EnvMart to suit your project requirements.
