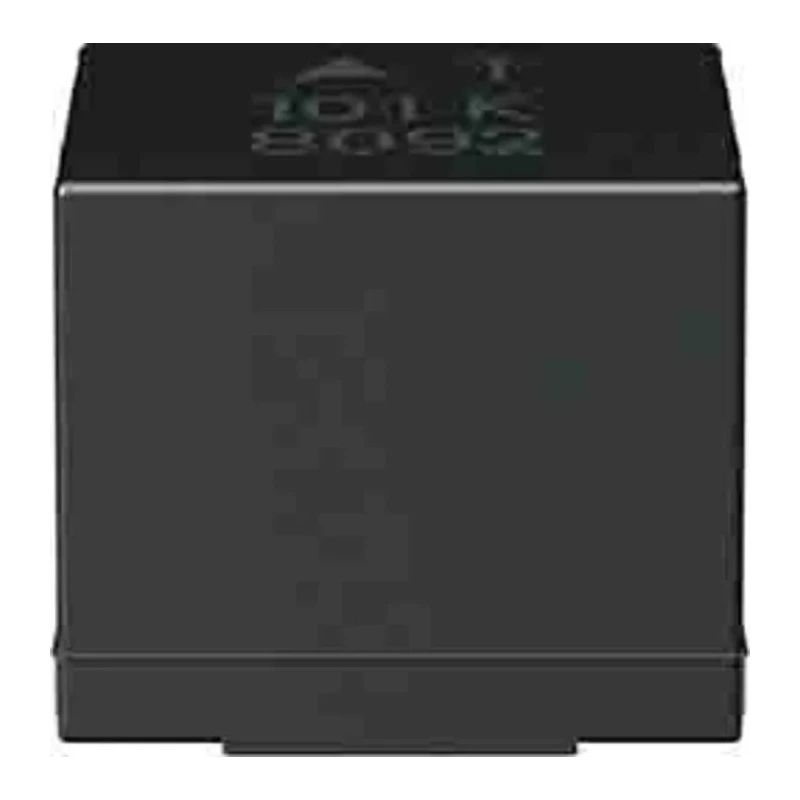

TDK SIMID 2220 Unshielded Wirewound Surface Mount Inductor, Ferrite Core, 150 μH ±10%, 410 mA IDC, Q Factor B82442T1154K000

TDK B82442T1154K000 SIMID series wirewound surface mount inductor incorporates a ferrite drum core with laser-welded windings and flame-retardant molding material. It delivers an inductance of 150 μH with a tolerance of ±10% and a current rating of 410 mA IDC, making it suitable for various electronic filtering and power supply applications.

This inductor is designed unshielded for use in high-frequency circuits, including DC to DC converters, switch-mode power supplies, automotive electronics, telecommunications, consumer, and industrial electronics. Its compact 2220 case size measures 5.6 mm in length and 5 mm in height and depth, facilitating integration into dense PCB layouts using surface mount technology.

The B82442T1154K000 inductor fulfills the AEC-Q200 automotive qualification and is compliant with RoHS directives along with JEDEC J-STD 020D lead-free soldering standards, ensuring high reliability and environmental friendliness. With a maximum DC resistance of 1.5 Ω and a quality factor of at least 20, it provides efficient energy storage and minimal power loss.

Operating reliably within the temperature range of -55°C to 150°C, this ferrite core inductor offers stable performance under varied environmental conditions. The maximum self-resonant frequency is 4.6 MHz, suitable for a broad spectrum of signal and power frequencies.

Manufactured in Hungary, these inductors are molded with flame-retardant materials and designed to meet strict quality standards for industrial and automotive electronics sectors. The solder termination style supports automated assembly and reflow soldering processes.

Unshielded wirewound construction optimizes magnetic performance. Qualified to automotive AEC-Q200 standard for enhanced durability. Compact surface mount 2220 package for space-saving designs. Temperature range from -55°C to +150°C supports harsh environments.

Suitable for telecommunications, automotive, consumer, and industrial electronics applications. RoHS-compliant and halogen-free for environmental safety. High current capability of 410 mA and low DC resistance aid efficiency.
