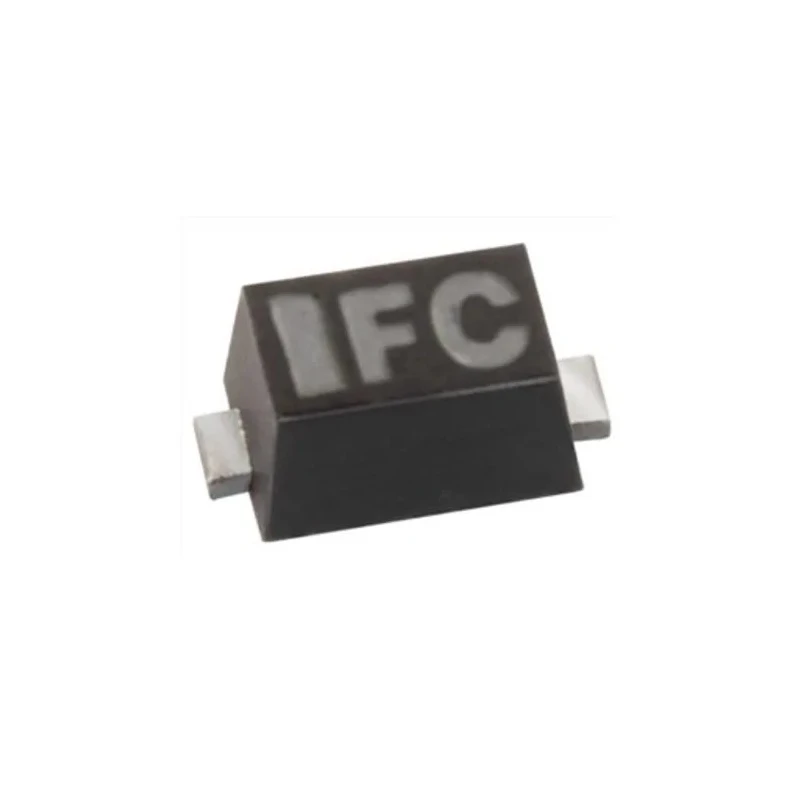

Vishay Small Signal Zener Diode 7.5 V 200 mW Surface Mount 2-Pin SOD-523 BZX584C7V5-HG3-08

Vishay BZX584C7V5-HG3-08 is a small signal zener diode designed for voltage regulation applications with a nominal zener voltage of 7.5 V and power dissipation of 200 mW. Packaged in a compact 2-pin SOD-523 surface mount plastic casing, it is ideal for space-constrained circuit designs.

The diode features a ±5% zener voltage tolerance ensuring stable voltage regulation under varying conditions. It supports a maximum operating temperature of 175°C, making it suitable for demanding industrial and automotive environments.

Its specifications include a maximum reverse leakage current of 1 μA and a test current set at 5 mA, optimizing performance consistency. The diode length measures 1.3 mm with a height of 0.9 mm, making it appropriate for miniature electronic assemblies.

Designed for industrial, automotive, and electronic manufacturing applications, this diode complies with RoHS directives and is AEC-Q101 qualified, ensuring high quality and reliability under automotive standards.

This diode has a single diode configuration with 2 pins optimized for surface mount applications. The zener voltage tolerance is ±5%, providing regulated voltage performance. Maximum operating temperature is rated at 175°C for reliable use in high-temperature environments.

Length of the diode is 1.3 mm and height is 0.9 mm for space-sensitive electronics. It features a maximum reverse leakage current of 1 μA and a test current of 5 mA. The device complies with RoHS standards ensuring environmental safety.

This model is AEC-Q101 qualified for automotive applications.

This product is widely used in electronic circuits requiring stable voltage reference and protection. Suitable for laboratory, industrial, automotive, and semiconductor device manufacturing. Explore more quality zener diodes and semiconductors on EnvMart for your technical requirements.
