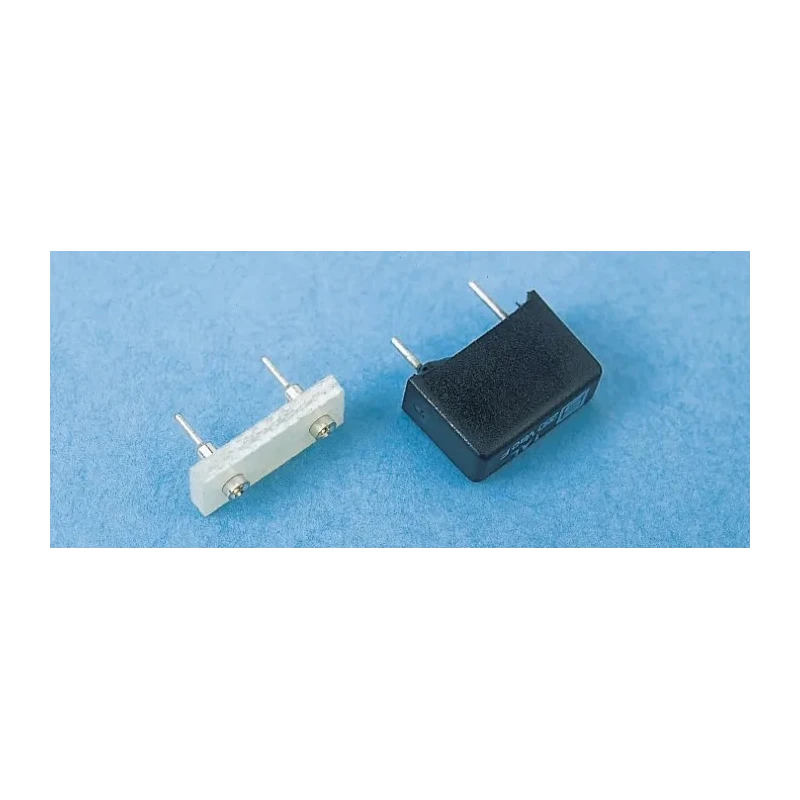

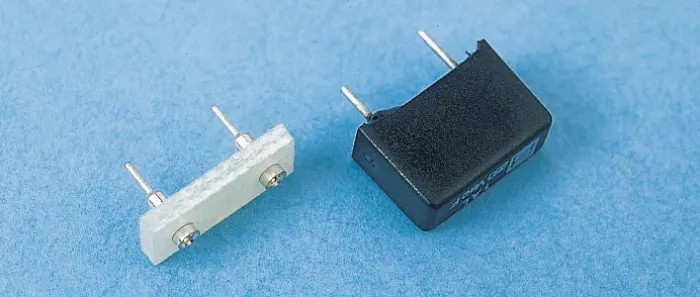

Schurter Non-Resettable Fuse Radial Lead Fast Acting 6.3A 250V AC Thermoplastic Body 7100.1073.13

Free Delivery in India | Lowest Global Shipping Charges

Schurter Non-Resettable Fuse Radial Lead Fast Acting 6.3A 250V AC Thermoplastic Body 7100.1073.13

Name: Schurter Non-Resettable Fuse Radial Lead Fast Acting 6.3A 250V AC Thermoplastic Body 7100.1073.13
Brand: Schurter
SKU: 181233
Price: 1.39 USD
Availability: InStock



Category Non Resettable Fuse Brand Schurter Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Diameter	0.6mm
Brand	Schurter
Body Material	Thermoplastic
Height	8mm
Length	11.5mm
Width	5mm
Current Rating	6.3A
Series	FRT 250 F
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Lead Length	19mm
Breaking Capacity	100A
Standards/Approvals	RoHS
Fuse Characteristics	Fast Acting
Lead Orientation	Radial

Key Features

Constructed with a black UL 94-V0 self-extinguishing thermoplastic enclosure for safety.
Features a breaking capacity of 100A ensuring reliable circuit protection.
Operating temperature range from -40°C to 85°C supports various industrial environments.
Compact dimensions with length 11.5mm, width 5mm, height 8mm, and lead length 19mm enable easy PCB integration.
Designed as part of the FRT 250 F series with adherence to RoHS standards.

Product Description

Schurter 7100.1073.13 Non-Resettable Fuse is a miniature fuse intended for soldering onto printed circuit boards (PCBs) with radial lead orientation. Rated for 6.3 amperes and 250V AC, this fast-acting fuse features a robust thermoplastic Polyamide body that is UL 94-V0 self-extinguishing, enhancing electrical safety in various applications.

The fuse is part of the FRT 250 F series, offering reliable and consistent overcurrent protection with a breaking capacity of 100 amperes. Its fast-acting characteristic makes it ideal for protecting sensitive electronic equipment in industrial, laboratory, HVAC, and manufacturing settings.

With a compact size measuring 11.5mm in length, 5mm in width, 8mm in height, and radial leads of 19mm length with 0.6mm diameter, it integrates efficiently into PCB layouts without occupying excessive space. The fuse operates effectively within a temperature range from -40°C minimum to 85°C maximum, suitable for diverse environmental conditions.

This fuse complies with RoHS requirements, indicating environmentally responsible manufacturing. It provides rapid circuit interruption to protect against short circuits and overloads in electrical and automation systems.

Constructed with a black UL 94-V0 self-extinguishing thermoplastic enclosure for safety. Features a breaking capacity of 100A ensuring reliable circuit protection. Operating temperature range from -40°C to 85°C supports various industrial environments.

Compact dimensions with length 11.5mm, width 5mm, height 8mm, and lead length 19mm enable easy PCB integration. Designed as part of the FRT 250 F series with adherence to RoHS standards.

This Schurter non-resettable fuse is widely used in electronics manufacturing, electrical automation, instrumentation, and other commercial industrial applications. It is engineered to provide dependable overcurrent protection in demanding environments.

Explore more Schurter fuses and electrical components in the Electronics & Electricals category at EnvMart for trusted circuit protection solutions.

Explore more products in our Non Resettable Fuse category.
