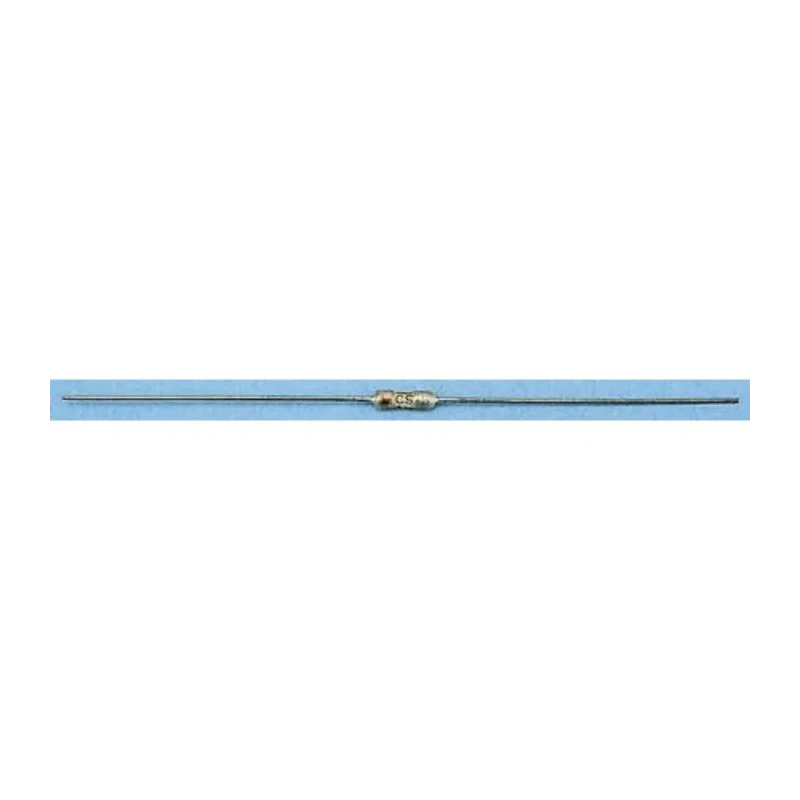

Schurter Non-Resettable Fuse Axial 10A 125 V AC/DC Ceramic Body Fast Acting 7010.7150.13

Free Delivery in India | Lowest Global Shipping Charges

Schurter Non-Resettable Fuse Axial 10A 125 V AC/DC Ceramic Body Fast Acting 7010.7150.13

Name: Schurter Non-Resettable Fuse Axial 10A 125 V AC/DC Ceramic Body Fast Acting 7010.7150.13
Brand: Schurter
SKU: 138877
Price: 1.7 USD
Availability: InStock



Category Non Resettable Fuse Brand Schurter Condition New

Specifications

Country of Origin	France
Voltage	125, 125V ac
Diameter	2.36mm
Brand	Schurter
Body Material	Ceramic
Height	8mm
Length	8mm
Current Rating	10A
Series	172322
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Lead Length	86mm
Breaking Capacity	50A
Standards/Approvals	RoHS
Lead Diameter	0.82mm
Fuse Characteristics	Fast Acting
Lead Orientation	Axial
SchurterPC Board Non Resettable Fuse, Axial 10A, 125V ac/dcBrand	Schurter
Littelfuse Non-Resettable Fuse, Axial 10A, 125 V ac, 125V dcBrand	Littelfuse

Key Features

Axial fuse with ceramic body construction providing durability.
Rated current of 10 amperes for precise circuit protection.
Operates at 125 volts AC and DC with a breaking capacity of 50 amperes.
Complies with IEC 172322 series standards and RoHS certification for safety and environmental compliance.
Compact size of 2.36 mm diameter and 8 mm length for space-saving applications.
Fast-acting fuse characteristics to protect sensitive electronic components.
Operating temperature range from -55°C minimum to 85°C maximum for versatile environmental use.
Leads oriented axially with length of 86 mm and lead diameter of 0.82 mm facilitating PCB soldering.

Product Description

Schurter 7010.7150.13 Non-Resettable Fuse is an axial fast acting fuse with a ceramic body designed specifically for direct solder mounting on printed circuit boards (PCBs). Operating at 10 amperes current rating and suitable for 125 volts AC and DC circuits, this fuse provides reliable overcurrent protection.

The fuse features a compact 2.36 mm diameter and 8 mm length ceramic tube with a clear insulating sleeve, enhancing durability and insulation. Its fast-acting characteristic ensures quick interruption of fault currents, protecting sensitive electronic devices and systems.

Designed to meet the IEC 172322 series minifuse standards, the Schurter non-resettable fuse displays a breaking capacity of 50 amperes, making it suitable for demanding industrial, laboratory, and automation applications. Additionally, the fuse complies with RoHS regulations, confirming its environmentally safe manufacturing process.

The operating temperature range of -55°C to 85°C enables use in various environments, including industrial equipment, electrical panels, and control systems where thermal stability is critical. Its axial lead orientation with an 86 mm lead length and 0.82 mm lead diameter facilitates easy soldering and integration into PCBs.

Axial fast acting fuse with ceramic body for high reliability. 10A current rating for precise overcurrent protection. Suitable for 125 V AC and DC applications. Breaking capacity of 50A for industrial robustness. Complies with IEC 172322 and RoHS standards.

Compact physical dimensions optimize PCB space usage. Wide operating temperature range from -55°C to 85°C. Leads designed for PCB solder mounting. Manufactured in France ensuring quality standards.

This Schurter fuse is widely used in industrial automation, electrical engineering, laboratory equipment, and commercial electronic assembly for reliable circuit protection. Its fast-acting nature safeguards sensitive components by quickly interrupting excessive current flow.
