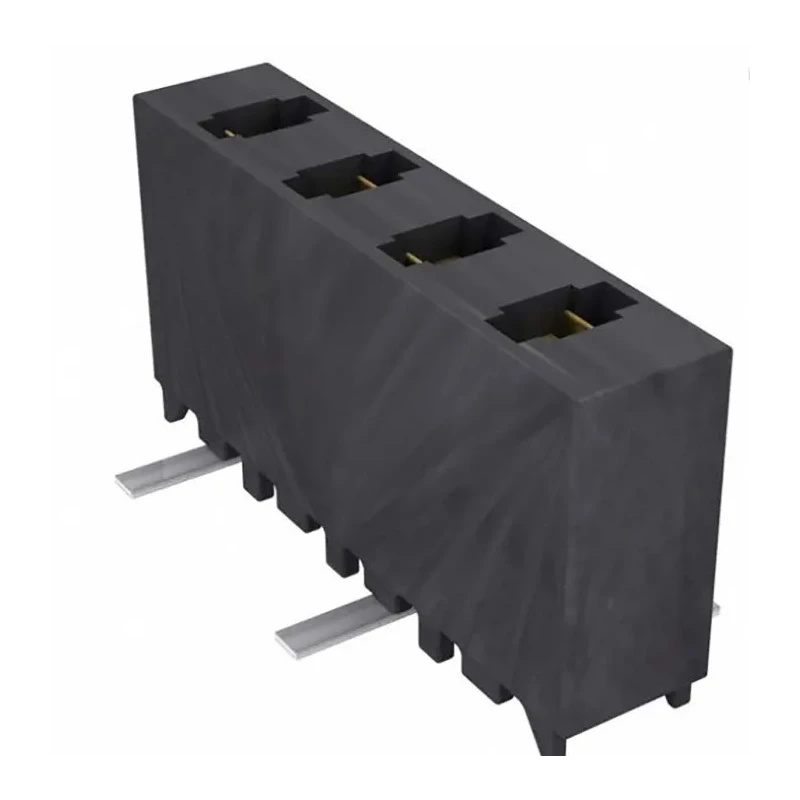

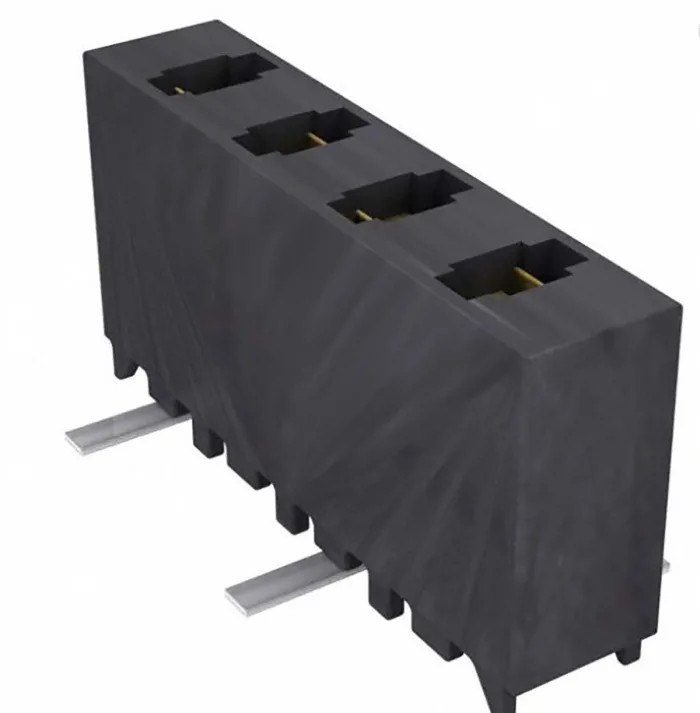

Samtec MMS Series Straight Through Hole PCB Socket, 4-Contact, 1 Row, 2 mm Pitch, Liquid Crystal Polymer MMS-104-02-F-SV
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.9A |
| Model | MMS-104-02-F-SV |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | MMS |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Tiger Claw |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Connector System | Board-to-Board |
Key Features
- Constructed with a Liquid Crystal Polymer housing for durability and high performance.
- Features gold-plated phosphor bronze contacts ensuring excellent conductivity and corrosion resistance.
- Supports a maximum current of 3.9A suitable for various electronic applications.
- Designed with tiger claw style termination for secure solder connections.
- Operates reliably within temperature ranges from -55°C to 125°C.
- Mount type is through-hole with a straight orientation for easy PCB assembly.
- Complies with RoHS standards ensuring environmental safety.
- Ideal for industrial, electronic, and manufacturing PCB connector needs.
Product Description
Samtec MMS-104-02-F-SV is a high-quality PCB socket from the MMS series, featuring a straight through hole design with 4 contacts arranged in a single row with a 2 mm pitch. This board-to-board connector uses a Liquid Crystal Polymer housing renowned for its strength, thermal stability, and durability. The contacts are made of phosphor bronze and plated with gold, providing low resistance, high conductivity, and excellent corrosion protection.
The socket supports a current of 3.9A and operates reliably in extreme environmental conditions with a temperature range from -55°C to 125°C. Its tiger claw style termination ensures a secure solder connection, important for maintaining signal integrity in electronic assemblies. The through-hole mount type allows for mechanical strength and stable integration into PCB layouts.
This PCB socket complies with RoHS directives, making it suitable for environmentally conscious designs. Its straight orientation and robust design make it ideal for diverse industrial electronics applications including manufacturing, prototyping, and maintenance of PCB assemblies.
Liquid Crystal Polymer housing enhances durability and heat resistance. Phosphor Bronze contacts with gold plating ensure reliable electrical performance. Rated for 3.9A current suitable for moderate power applications. Wide operating temperature range for harsh conditions.
Tiger Claw termination provides strong solder joints. Through-hole mount for superior mechanical stability. Meets RoHS environmental standards. Designed for board-to-board electrical connections in electronic components manufacturing.
Explore more PCB Sockets and electronic components in the Electronics Components category at EnvMart for diverse industrial, manufacturing, and electronic assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB socket is 3.9A, making it suitable for moderate power applications.
This model operates reliably within a temperature range from -55°C to 125°C.
The contacts are made of phosphor bronze and are gold-plated to ensure excellent conductivity and corrosion resistance.
It uses a tiger claw style termination, which provides secure solder connections essential for maintaining signal integrity.
This socket features a through-hole mount type, allowing for mechanical strength and stable integration into PCB layouts.
The pitch of the contacts in this PCB socket is 2 mm.
Yes, this PCB socket complies with RoHS standards, ensuring it meets environmental safety requirements.
This model has 4 contacts arranged in a single row.
The housing is constructed from Liquid Crystal Polymer, known for its strength and thermal stability.
This PCB socket is ideal for various industrial electronics applications, including manufacturing, prototyping, and maintenance of PCB assemblies.
The orientation of this PCB socket is straight, facilitating easy PCB assembly.
This PCB socket is manufactured in India.
