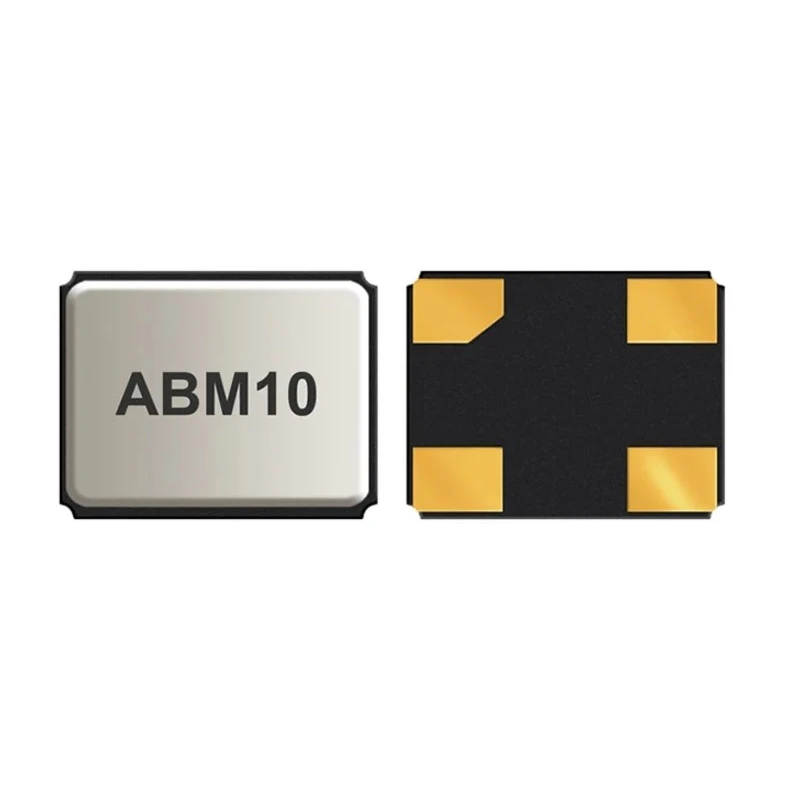

Abracon 24 MHz Crystal ±20 ppm Surface Mount 4-Pin Ultra Miniature Ceramic Package ABM10-24.000MHZ-E20-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.5mm |
| Length | 2.5mm |
| Model | ABM10-24.000MHZ-E20-T |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | ABM10 |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 24MHz |
| Load Capacitance | 10pF |
| Series Resistance | 100Ω |
Key Features
- Standard frequency of 24 MHz with a frequency tolerance of ±20 ppm.
- Compact surface mount design with dimensions 2.5 mm length, 2.0 mm width, and 0.5 mm height.
- Load capacitance specified at 10 pF for stable operation.
- Operates reliably from -10°C to 60°C with ±30 ppm frequency stability.
- Seam sealed ceramic package ensures durability and high precision.
- RoHS compliant, suitable for automated manufacturing processes with tape and reel packaging.
- Typical series resistance of 100 Ω providing excellent signal quality.
- Ideal for applications in Bluetooth, wireless communications, microprocessors, and modems.
Product Description
Abracon ABM10-24.000MHZ-E20-T is a 24 MHz crystal unit designed for surface mount applications, featuring a compact 4-pin ultra miniature ceramic package measuring 2.5 x 2.0 x 0.5 mm. This crystal offers a frequency tolerance of ±20 ppm and frequency stability of ±30 ppm between the operating temperature range of -10°C to 60°C, making it suitable for precise timing applications.
The crystal incorporates a load capacitance of 10 pF and a series resistance of 100 Ω, enabling stable and reliable oscillation. Its seam-sealed ceramic package ensures high precision and long-term reliability. This component is RoHS compliant and is supplied on tape and reel packaging, supporting modern automatic assembly processes.
This product is ideal for industrial, electronic, and communication devices, including Bluetooth modules, wireless devices, microprocessors, and modems, where accuracy and compact size are critical. The 4-pin surface mount design enables space-saving PCB layouts in complex electronic assemblies.
24 MHz standard frequency with tight ±20 ppm tolerance. Miniature footprint of 2.5 mm length, 2.0 mm width, and 0.5 mm height. Load capacitance of 10 pF tailored for stable oscillation. RoHS compliant seam sealed ceramic housing.
Operates within -10°C to 60°C with ±30 ppm stability. Typical series resistance of 100 Ω for signal integrity. Surface mount 4-pin package suitable for automated PCB assembly. Excellent choice for wireless, computing, and communication electronics.
Please explore our Electronics Components category for more high-quality crystals and oscillators designed to meet your industrial and commercial requirements.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 24 MHz.
This model has dimensions of 2.5 mm in length, 2.0 mm in width, and 0.5 mm in height.
The load capacitance specified for stable operation is 10 pF.
The frequency tolerance of this crystal is ±20 ppm.
It operates reliably within a temperature range of -10°C to 60°C.
The frequency stability of this unit is ±30 ppm within the specified operating temperature range.
The typical series resistance is 100 Ω, which provides excellent signal quality.
Yes, this crystal is RoHS compliant, making it suitable for environmentally conscious manufacturing processes.
The crystal is supplied in tape and reel packaging for automated manufacturing processes.
This model features a pin count of 4.
It is ideal for applications in Bluetooth, wireless communications, microprocessors, and modems.
This crystal uses a surface mount design, suitable for space-saving PCB layouts.
