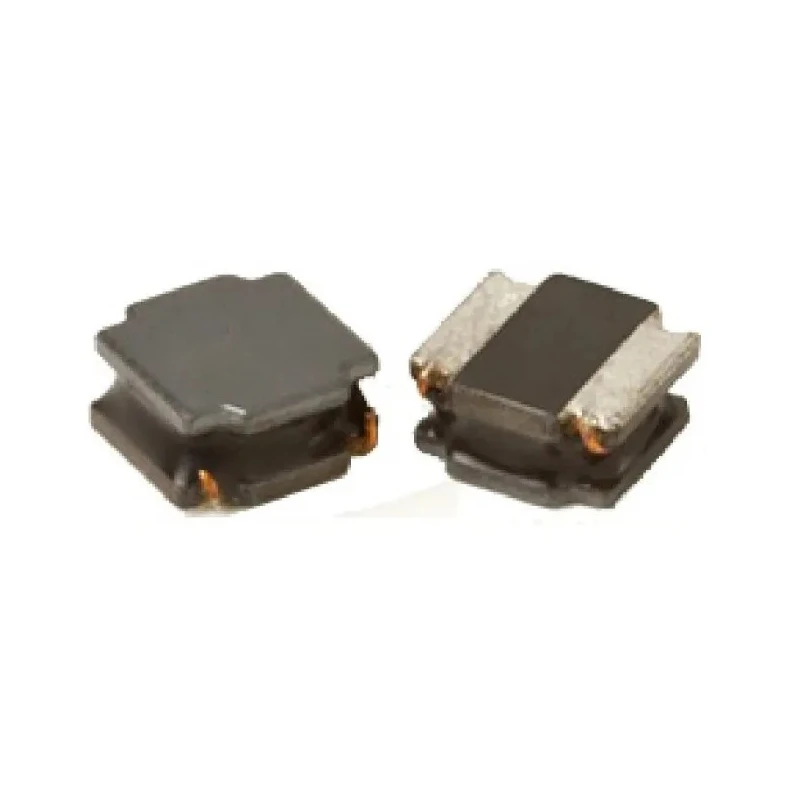

Abracon Shielded Surface Mount Inductor with Ferrite Core 10 μH Flat Wire Winding ±20 % 1.95 A Idc ASPI-4030S-100M-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3mm |
| Length | 4mm |
| Model | ASPI-4030S-100M-T |
| Depth | 3mm |
| Packaging | Tape & Reel |
| Series | ASPI-4030S |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 1.95A |
| Pin Count | 4 |
| Maximum DC Resistance | 0.1Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Flat Wire Winding |
Key Features
- Magnetically shielded construction reduces electromagnetic interference.
- Maximum DC current rating of 1.95 A supports high current applications.
- Compact dimensions with 4 mm length, 3 mm height, and 3 mm depth.
- Low maximum DC resistance of 0.1 Ω for efficient performance.
- Operating temperature range from -40°C to 125°C for robustness.
- Surface mount termination style enables easy PCB integration.
- Manufactured with ferrite core material and flat wire winding.
- Supplied in tape and reel packaging for automated assembly.
Product Description
Abracon ASPI-4030S-100M-T is a shielded surface mount inductor designed for use in a variety of electronic applications requiring inductance of 10 μH with a tolerance of ±20 %.
The inductor utilizes a ferrite core and flat wire winding construction, providing magnetically shielded operation to minimize electromagnetic interference and crosstalk in compact circuits. It supports a maximum DC current of 1.95 A and exhibits a low maximum DC resistance of 0.1 Ω, enabling efficient power handling with minimal losses.
Its compact size includes a length of 4 mm, height of 3 mm, and depth of 3 mm, suitable for space-constrained PCB layouts. The device features a surface mount termination style facilitating soldering onto PCBs using automated manufacturing processes and is provided in tape and reel packaging format.
The ASPI-4030S series components are moulded and designed to operate reliably across a wide temperature range, from -40°C to 125°C, ensuring durability in harsh environmental conditions.
Compliant with RoHS standards, this inductor meets environmental directives restricting hazardous substances usage in electronics manufacturing. Typical applications include portable communication equipment, office automation devices, LCD and DVD players, modems, set-top boxes, and DC-DC converters, where low radiation and high energy storage are required.
Magnetically shielded design reduces EMI. Supports maximum DC current of 1.95 A. Compact 4 mm x 3 mm x 3 mm dimensions. Low resistance of 0.1 Ω enhances efficiency. Wide operating temperature range of -40°C to 125°C. Flat wire winding construction on ferrite core.
Surface mount termination style for PCB assembly. RoHS compliant for environmental standards. Supplied in tape and reel packaging. Ideal choice for industrial, electronic manufacturing, communication devices, and power management systems.
Explore more Surface Mount Inductors and Abracon products on EnvMart for reliable and high-performance electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with a tolerance of ±20%.
It supports a maximum DC current of 1.95 A, suitable for high current applications.
This unit has compact dimensions of 4 mm in length, 3 mm in height, and 3 mm in depth.
The maximum DC resistance is 0.1 Ω, which enhances its efficiency in power handling.
It operates reliably within a temperature range of -40°C to 125°C.
The inductor is constructed with a ferrite core, which aids in its magnetically shielded operation.
It features a surface mount termination style, allowing for easy integration onto PCBs.
It is supplied in tape and reel packaging, which is suitable for automated assembly processes.
This model is RoHS compliant, adhering to environmental directives that restrict hazardous substances.
Typical applications include portable communication equipment, office automation devices, and DC-DC converters.
The ASPI-4030S-100M-T has a pin count of 4.
It utilizes a flat wire winding construction, which contributes to its compact design and performance.
