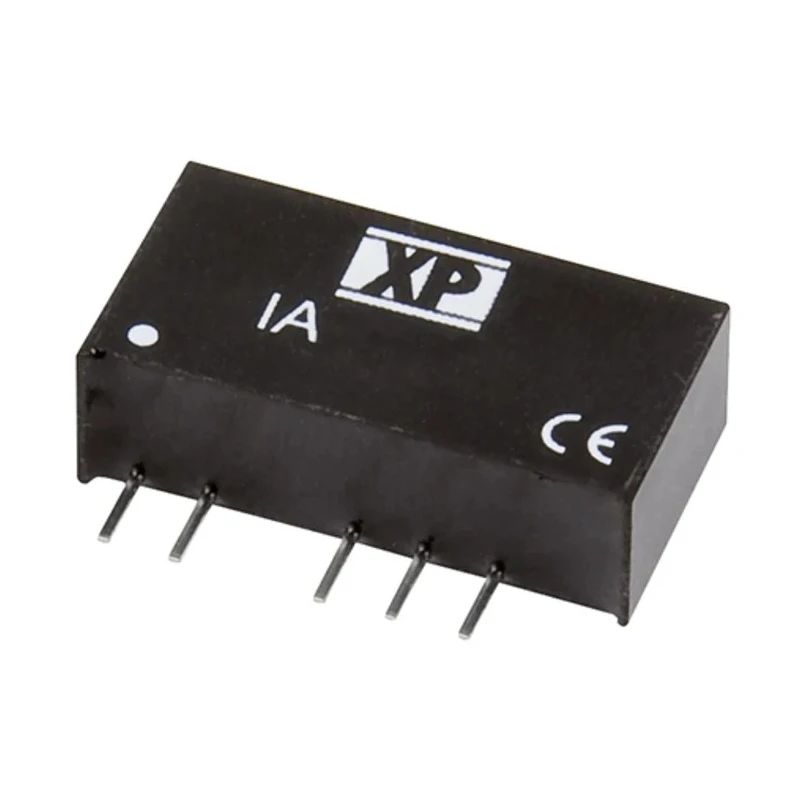

XP Power Isolated DC/DC Converter Dual Output 5V, -5V, 100 mA, 13.2V dc Input, 10.8V Input, 1W, Through Hole SIP IA1205S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IA DC/DC Converter, 5V, -5 V/ 100 mA, 13 |
| Brand | XP Power |
| Efficiency | 75% |
| Length | 19.3mm |
| Model | IA1205S |
| Depth | 10.16mm |
| Width | 6.09mm |
| Mount Type | Through Hole |
| Series | IA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1120000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 5, -5V |
| Output Current 1 | 100mA |
| Isolation Voltage | 1kV dc |
Key Features
- This converter supports a wide input voltage range from 10.8V to 13.2V DC.
- It features a high MTBF of 1,120,000 hours ensuring reliable performance.
- The product has an isolation voltage of 1000 VDC for improved safety.
- It operates efficiently with 75% efficiency and a temperature range from -40 °C to 85 °C.
- The compact SIP package measures 19.3 mm length, 10.16 mm depth, and 6.09 mm width.
- Designed with 7 pins and dual outputs suitable for industrial and electronic power supply applications.
- This DC/DC converter is suitable for applications requiring stable dual voltage outputs with isolation.
Product Description
XP Power IA1205S is a highly reliable isolated DC/DC converter designed for industrial and electronic applications requiring dual outputs of 5V and -5V. It delivers a maximum output current of 100 mA with a total output power of 1 watt. The converter is housed in a through hole SIP package with a compact form factor of 19.3 mm length, 10.16 mm depth, and 6.09 mm width.
This series offers an operating input voltage range from 10.8V up to 13.2V DC and provides an isolation voltage of 1000 VDC, ensuring enhanced electrical safety in circuit designs. Its high Mean Time Between Failures (MTBF) of 1,120,000 hours guarantees extended durability and reliability under standard operating conditions.
Operating efficiently with 75% energy conversion efficiency, the IA1205S supports operation in harsh environments from -40 °C to 85 °C, making it suitable for various industrial, laboratory, and commercial electronics systems.
Designed to meet industry standards with an industry standard pinout and dual output capability, it effectively supports applications like isolated power supplies, signal isolation, and instrumentation where stable dual voltage supplies are critical.
This converter features dual isolated outputs of +5V and -5V for complex circuitry requirements. Wide operating temperature range ensures performance stability in extreme conditions. 1000 VDC isolation voltage protects sensitive components from voltage spikes.
Compact through hole SIP package facilitates easy PCB mounting and integration. High MTBF demonstrates robust and dependable operation for long-term use. Input voltage range accommodates slightly varying power sources without loss of performance.
Optimal 75% efficiency balances power consumption and heat generation.
XP Power IA1205S is manufactured in Taiwan, Province Of China, adhering to quality manufacturing standards making it a dependable component for power conversion needs. This product is ideal for use in industrial controls, communication equipment, and measurement instruments.
Explore EnvMart’s wide selection of DC/DC Converters for reliable power solutions tailored to your industrial and electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 10.8V to 13.2V DC.
This converter provides dual outputs of +5V and -5V.
The maximum output current for this model is 100 mA.
It operates with an efficiency of 75%.
The isolation voltage for this converter is 1000 VDC.
The SIP package measures 19.3 mm in length, 10.16 mm in depth, and 6.09 mm in width.
It can operate in a temperature range from -40 °C to 85 °C.
This DC/DC converter is designed with 7 pins.
The MTBF for this model is 1,120,000 hours.
It supports through hole mounting.
This converter is manufactured in Taiwan.
It is suitable for industrial controls, communication equipment, and measurement instruments.
