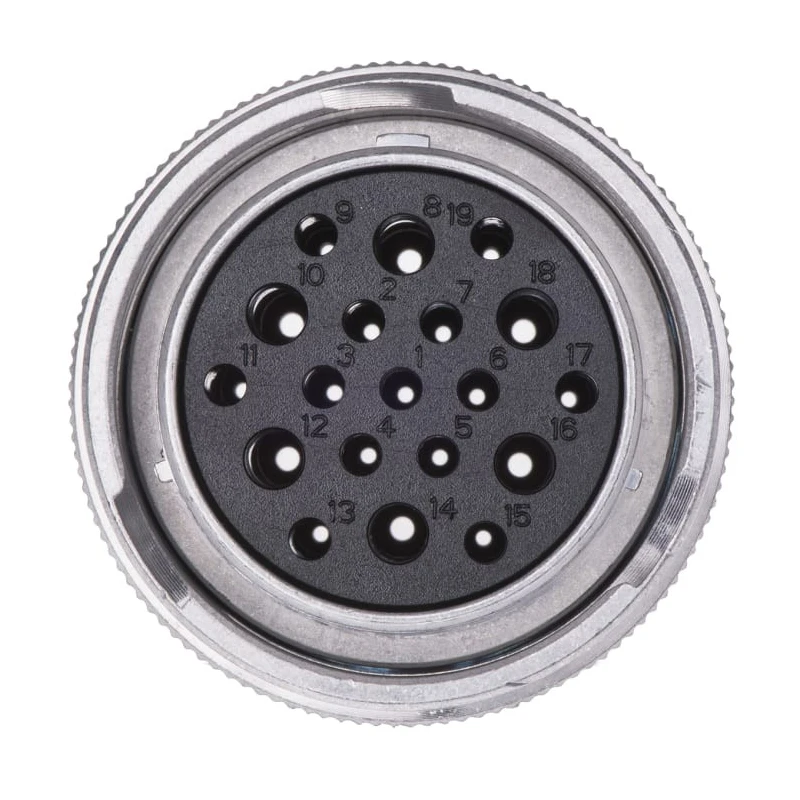

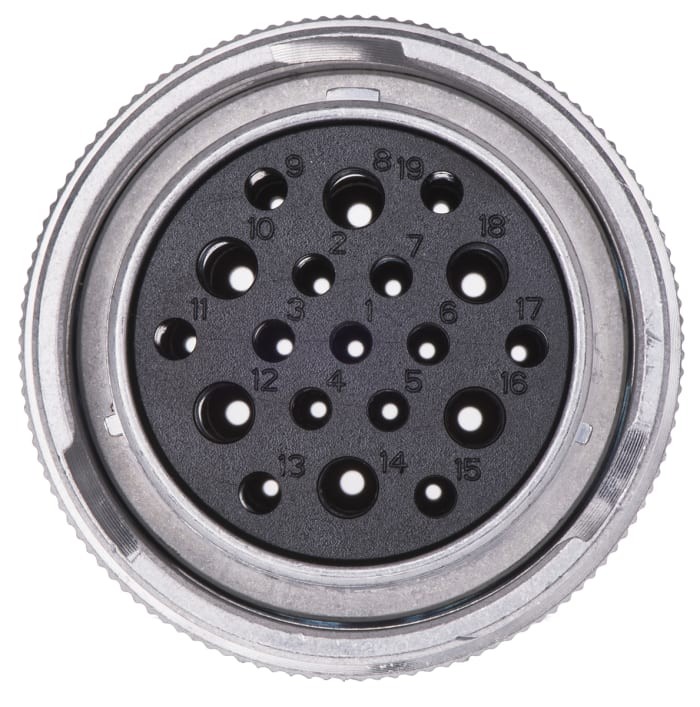

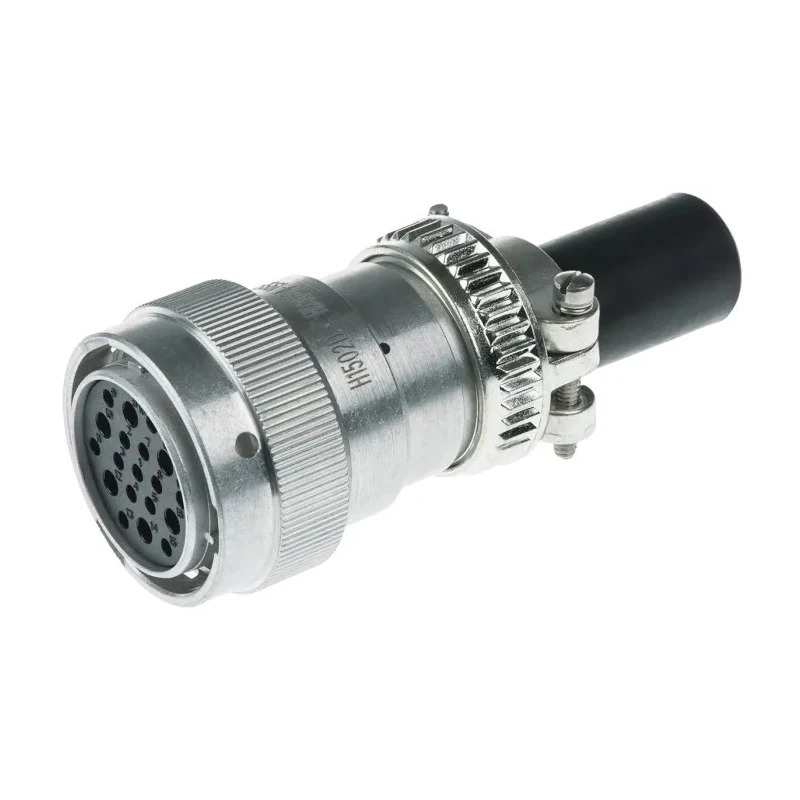

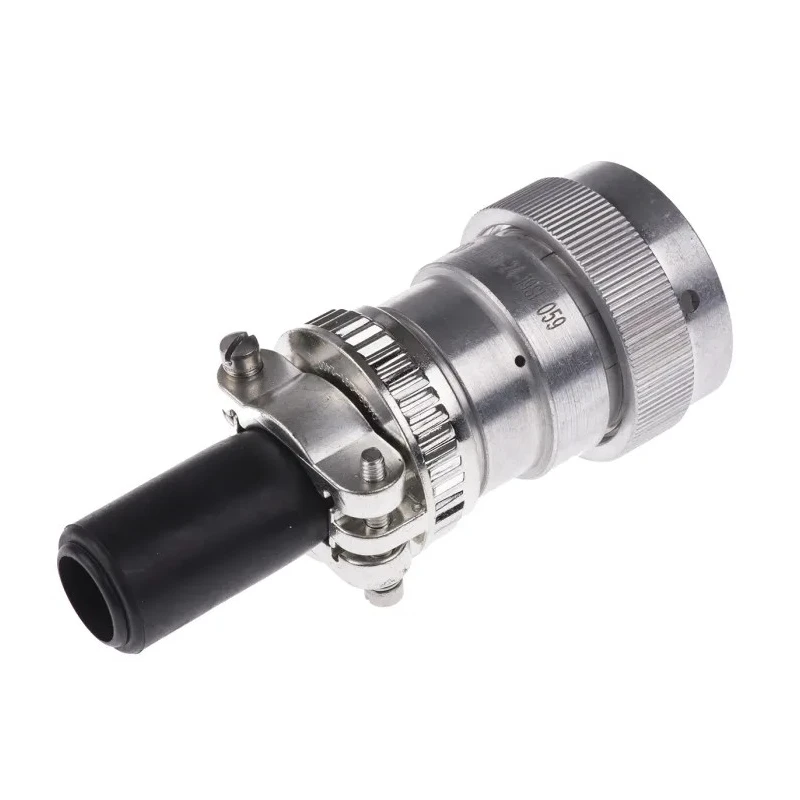

Deutsch Industrial Circular Connector 19 Contacts Cable Plug Female 2.39 mm IP67 250V HD30 Series HD36-24-19SE-059
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Deutsch |
| Orientation | Straight |
| Current | 25A |
| Model | HD36-24-19SE-059 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper |
| Series | HD30 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 19 |
| Contact Plating | Nickel |
| Number of Contacts | 19 |
| Contact Gender | Female |
| Shell Size | 24 |
| Mating Type | Bayonet |
| Connector Size | 2.39 mm |
| Plug/Socket | Plug |
Key Features
- Features a 2.39 mm connector size suitable for high-reliability applications.
- Rated for 25A current and 250V voltage operation.
- Provides IP67 ingress protection ensuring resistance to dust and water.
- Constructed with aluminium housing and nickel-plated copper contacts for corrosion resistance.
- Designed for a straight orientation with bayonet mating type for secure connections.
- Operates reliably within -55°C to 125°C temperature range.
- Termination is by crimp method, facilitating robust cable connections.
- Durable for at least 100 mating cycles and vibration-proof to 20g at 10-2000Hz.
Product Description
Deutsch HD36-24-19SE-059 is an industrial-grade circular connector designed for demanding applications requiring robust and reliable cable connections. This connector features 19 female contacts enclosed within a heavy-duty aluminium shell that offers excellent mechanical strength and corrosion resistance.
With a connector size of 2.39 mm and a current rating of 25A at 250V, it handles high power transmission efficiently.
The IP67 rated protection ensures complete sealing against dust ingress and immersion in water, making it ideal for industrial environments, manufacturing plants, and outdoor installations.
The connector employs a bayonet mating system with straight orientation for easy engagement and secure locking. Its wide operating temperature range from -55°C up to 125°C suits harsh environmental conditions encountered in industrial, automotive, and aerospace sectors.
The termination via crimp technology provides a reliable electrical and mechanical connection suitable for field installation.
The HD30 series, to which this model belongs, has undergone extensive durability testing including 100 mating cycles minimum and resistance to vibration up to 20g at 10-2000 Hz, meeting industrial performance standards.
Features a 2.39 mm connector size suitable for high-reliability applications. Rated for 25A current and 250V voltage operation. Provides IP67 ingress protection ensuring resistance to dust and water. Constructed with aluminium housing and nickel-plated copper contacts for corrosion resistance.
Designed for a straight orientation with bayonet mating type for secure connections. Operates reliably within -55°C to 125°C temperature range. Termination is by crimp method, facilitating robust cable connections. Durable for at least 100 mating cycles and vibration-proof to 20g at 10-2000Hz.
Sealed circular connector from the HD30 series widely used in industrial and electronic component applications.
This Deutsch connector is extensively used in aerospace, industrial machinery, water treatment systems, automotive applications, and other sectors requiring dependable power and signal transmission under challenging environmental conditions.
Explore a wide range of industrial connectors and related components to find suitable solutions for your electrical connection needs at EnvMart.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for 25A current and operates at 250V.
This connector has an IP67 rating, ensuring complete protection against dust ingress and immersion in water.
The housing is made of aluminium, and the contacts are nickel-plated copper, providing corrosion resistance.
It operates reliably within a temperature range of -55°C to 125°C.
This model features 19 female contacts.
The connector utilizes a crimp termination method for robust cable connections.
It employs a bayonet mating type for secure connections.
The connector size is 2.39 mm.
The shell size is 24.
It is durable for at least 100 mating cycles.
It is widely used in aerospace, industrial machinery, water treatment systems, and automotive applications.
The connector is designed for a straight orientation.
