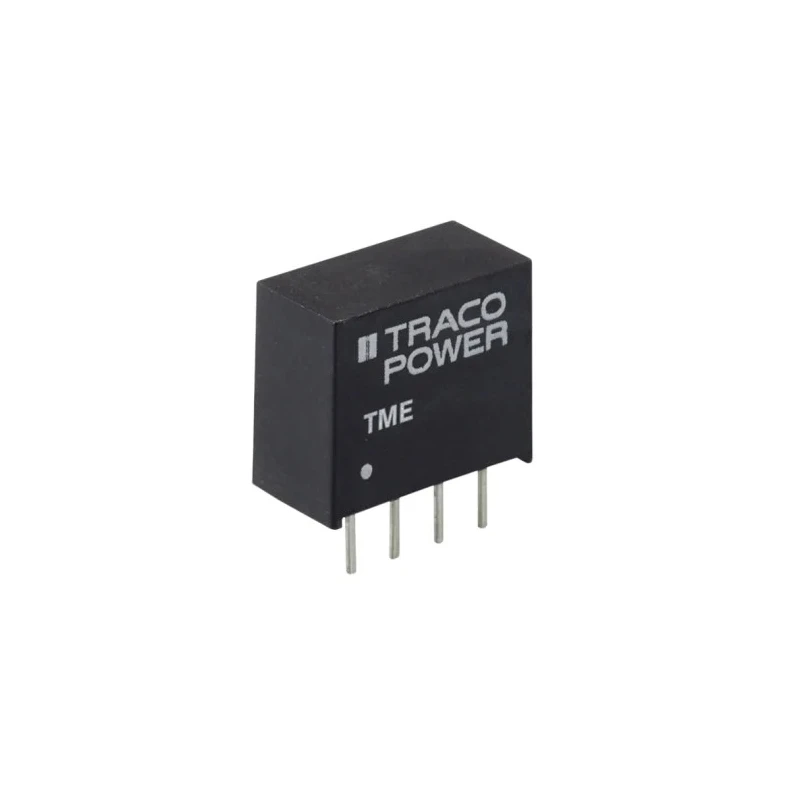

TRACOPOWER 1W SIP Single Output Isolated DC/DC Converter 9V DC 110mA 21.6V-26.4V Input Through Hole DIP Package TME 2409S

TRACOPOWER TME 2409S is a specialized 1W SIP single output isolated DC/DC converter delivering 9V DC output at 110mA. Designed for industrial and board level power distribution, it supports input voltages between 21.6V and 26.4V DC and is mounted via through hole DIP package.

Its compact 11.5mm by 6.1mm by 10.2mm package occupies minimal board space (0.7 cm²), ideal for space-constrained power supply designs. The converter features a high isolation voltage of 1kV DC between input and output, ensuring safety and noise immunity in industrial environments.

The device operates reliably across a wide temperature range of -40°C to +85°C, suitable for demanding industrial and HVAC applications. Efficiency rating of 79% reduces heat dissipation and energy losses in continuous operation.

The robust design with a mean time between failures (MTBF) of 2,000,000 hours guarantees long service life. The black plastic casing is UL 94-V0 rated, ensuring flame retardancy, and the product conforms to RoHS directives with a lead-free construction.

Additional features include internal capacitors for input filtering, short circuit protection limiting output current duration, temperature coefficient control for output voltage stability, and ripple/noise performance under 150mVp-p, suitable for sensitive electronic applications.

This converter is widely applicable in industrial automation, manufacturing equipment, water treatment control systems, and commercial electronics requiring isolated low power DC/DC conversion.

Operates efficiently up to 79% efficiency for minimal power loss. High isolation of 1kV DC between input and output ensures safety. Wide operating temperature range from -40°C to +85°C for industrial reliability. Compact SIP DIP package with dimensions 11.5mm length, 6.1mm width, and 10.2mm depth.

Single output channel suitable for board level power distribution in space-critical applications. Robust design with MTBF of 2,000,000 hours ensuring long operational life. RoHS compliant and lead-free construction with UL 94-V0 rated non-conductive black plastic casing.

Provides short circuit protection limiting duration to 0.5s to protect the device and circuit. Explore the variety of DC/DC Converters and power solutions at EnvMart for your industrial and electronic component needs.
