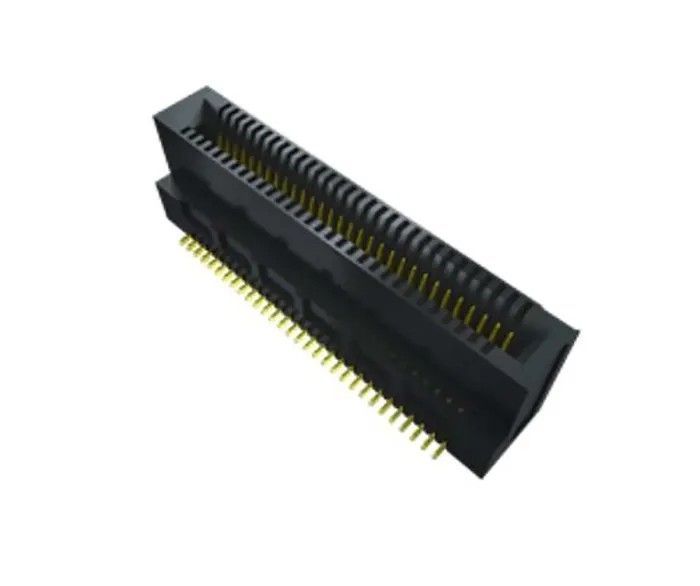

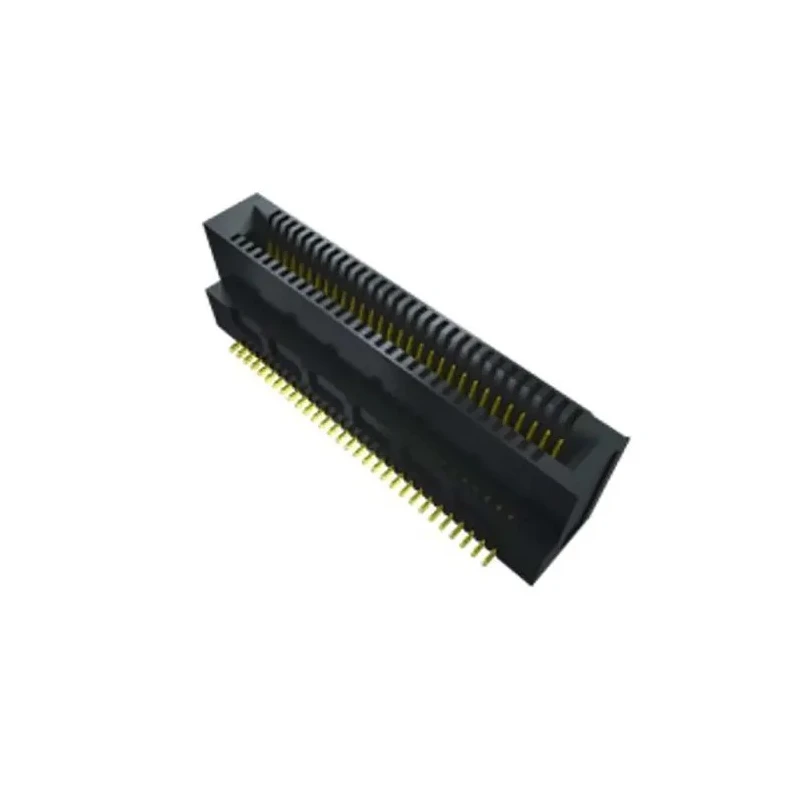

Samtec MEC8-RA1 Series Right Angle Edge Connector Female, Surface Mount, 25 Contacts, 1 Row, Gold Plated MEC8-RA1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 185V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 2.4A |
| Model | MEC8-RA1 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | MEC8-RA1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Edge |
| Card Thickness | 1.6mm |
Key Features
- Designed for mini edge card applications with right angle orientation.
- Features gold plated phosphor bronze contacts for superior conductivity.
- Supports card thickness of 1.6mm with edge card type design.
- Operates reliably within temperature range of -55°C to 125°C.
- Rated for current carrying capacity of 2.4 amperes at 185 volts.
- Termination type is solder for durable connections.
- Housing made from liquid crystal polymer ensuring high durability.
- Suitable for electronic, power, and computing connector applications.
Product Description
Samtec MEC8-RA1 series right angle edge connector female, model MEC8-RA1, is a 25-contact, single-row surface mount connector designed for edge card applications with a 1.6mm card thickness. It features gold plated phosphor bronze contacts to provide excellent electrical conductivity and corrosion resistance. The connector operates effectively within a temperature range of -55°C to 125°C and supports a maximum current rating of 2.4 amperes at 185 volts.
This connector is designed to provide reliable solder termination and uses a housing made from liquid crystal polymer, ensuring high mechanical strength and durability in demanding electronic environments. Its right angle orientation allows for compact PCB layout and optimal space utilization.
Ideal for usage in various electronic components, power connectors, and computing connectors systems, this edge connector fits seamlessly in industrial, laboratory, and commercial electronic manufacturing applications.
Mini edge card right angle connector with 25 contacts. Surface mount design suitable for solder termination. Gold plated phosphor bronze contacts for quality performance. Housing constructed from durable liquid crystal polymer.
Supports operating voltage of 185 volts and current of 2.4 amperes. Temperature range ensures operation in harsh environments. Compatible with 1.6mm thick edge cards. Used widely in electronic, power, and computing connectivity.
Explore more Edge Connectors and electronic components at EnvMart for your industrial and commercial projects.
