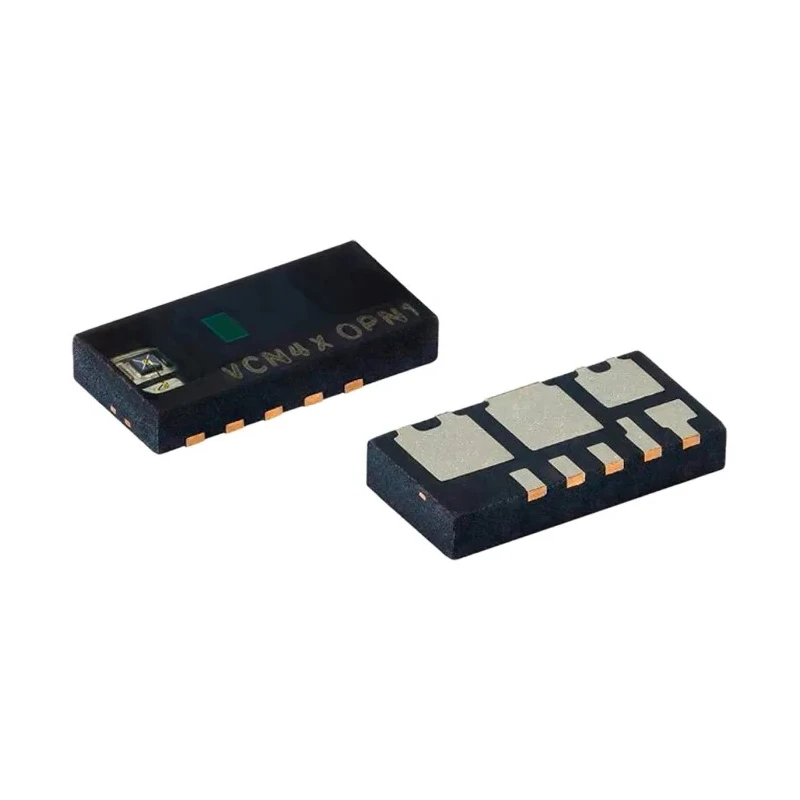

Vishay Proximity Light Sensor 200 mm 2.5 V to 3.6 V Surface Mount 10 Pin VCNL4020X01-GS08

Free Delivery in India | Lowest Global Shipping Charges

Vishay Proximity Light Sensor 200 mm 2.5 V to 3.6 V Surface Mount 10 Pin VCNL4020X01-GS08

Name: Vishay Proximity Light Sensor 200 mm 2.5 V to 3.6 V Surface Mount 10 Pin VCNL4020X01-GS08
Brand: Vishay
SKU: 189462
Price: 3.62 USD
Availability: InStock



Category Proximity Sensor IC Brand Vishay Condition New

Specifications

Country of Origin	Philippines
Brand	Vishay
Height	830μm
Length	4.9mm
Model	VCNL4020X01-GS08
Width	2.4mm
Mount Type	Surface
Output type	Open Drain, Digital
Sensing Distance	200mm
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Maximum Switching Frequency	3.4MHz
Pin Count	10
Automotive Standard	AEC-Q101
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2.5V

Key Features

Features 10 pins and surface mount package type.
Maximum switching frequency is 3.4 MHz for rapid sensing.
Compliant with automotive standard AEC-Q101 for quality and reliability.
Operating temperature range from -40°C to 105°C for wide environment use.
Equipped with open drain digital output for signal interfacing.
Includes a built-in infrared emitter for proximity detection.
Proximity sensing distance up to 200 mm suitable for vehicle occupant detection.
I²C serial communication interface with 16-bit resolution for precise measurements.

Product Description

Vishay VCNL4020X01-GS08 is a high-performance Proximity and Ambient Light Sensor with integrated infrared emitter designed for precise proximity detection up to 200 mm and ambient light sensing with human eye sensitivity. It is packaged in a compact 10-pin surface mount form factor measuring 4.9 mm in length, 2.4 mm width, and 830 μm height.

This sensor operates within a voltage range from 2.5 V to 3.6 V and supports a maximum switching frequency of 3.4 MHz, making it suitable for fast and accurate sensing applications. It features an open drain digital output and I²C serial interface with 16-bit effective resolution to facilitate digital communication with host devices.

Certified for automotive use with AEC-Q101 qualification, the VCNL4020X01-GS08 is ideal for vehicle occupant presence detection as well as industrial, commercial, and consumer electronic applications requiring reliable proximity sensing performance over a broad ambient temperature range of -40°C to 105°C.

The integrated programmable LED driver allows current adjustment from 10 mA up to 200 mA, enabling tailored infrared illumination intensity for varying sensing environments. Its compact surface mount package eases PCB integration in space-constrained designs.

Features 10-pin surface mount design with integrated infrared LED. Operates between 2.5 V and 3.6 V supply voltages. Supports proximity sensing distance up to 200 mm. Maximum switching frequency of 3.4 MHz for quick response.

Automotive AEC-Q101 qualified for enhanced reliability. Temperature range from -40°C to 105°C for harsh environments. I²C interface with 16-bit resolution for precise sensing. Programmable LED drive current from 10 mA to 200 mA.

Compact dimensions enable flexible mounting options.

This product is engineered for industrial, automotive, laboratory, and commercial electronic applications requiring precise and reliable proximity sensing combined with ambient light detection capability. Choose Vishay VCNL4020X01-GS08 Proximity Light Sensor for efficient and accurate occupancy monitoring, object detection, and lighting control solutions.
