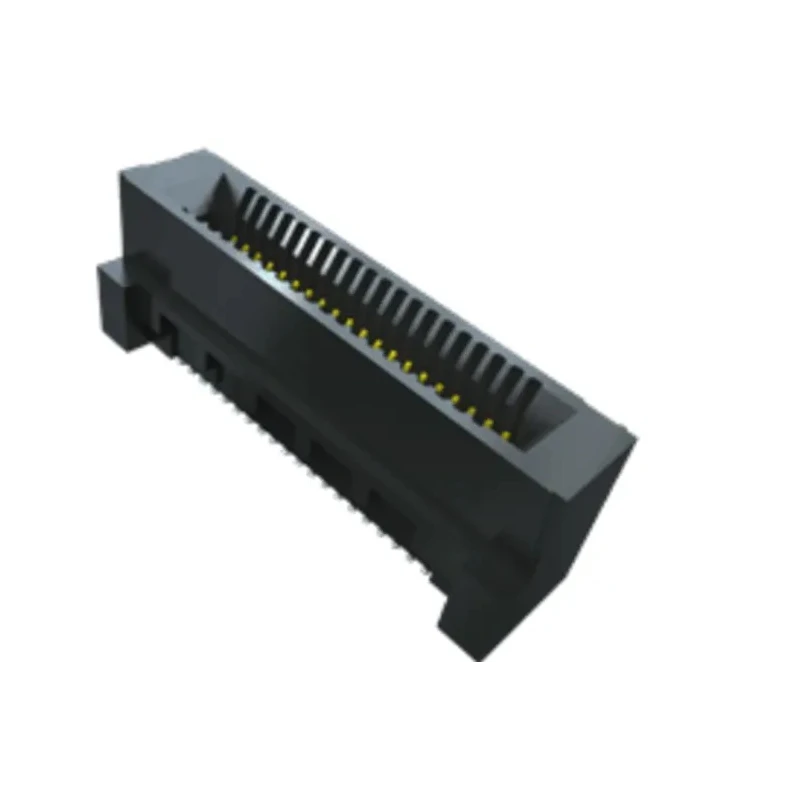

Samtec HSEC8 Series Vertical Edge Connector Female, Surface Mount, 120 Contacts, 0.8 mm Pitch, 2 Row HSEC8

Samtec HSEC8 Series Vertical Edge Connector Female, model HSEC8, offers a high-performance 120-contact edge card connector designed for demanding electronic and industrial applications. This surface mount, vertical orientation connector utilizes a 0.8 mm pitch with two rows, providing a compact and reliable solution for high density PCB interconnections.

The connector's contacts are gold plated to ensure excellent electrical conductivity and resistance to corrosion, supporting a per pin current rating of 2.8A. Its insulation is made from black liquid crystal polymer material, which adds robustness and stability even under harsh operating conditions.

Operating temperature ranges from -55°C to +125°C enable usage in a wide variety of environments including industrial, manufacturing, and electronic assembly sectors. The card thickness compatibility of 1.60 mm allows seamless interface with compatible edge cards.

This RoHS-compliant connector series is optimized for speed and signal integrity, making it suitable for applications in electronic manufacturing, telecommunications, and instrumentation where reliable edge card connections are critical.

Supports 2.8A per pin current rating for reliable power delivery. Features gold plating on contacts for enhanced conductivity and corrosion resistance. Surface mount type with vertical orientation suitable for PCB assembly.

Designed with 2 rows and 120 contacts to accommodate high density connections. Operates reliably in temperature ranges from -55°C to +125°C. Constructed with black liquid crystal polymer insulation for durability. Compatible with card thickness of 1.60 mm for edge card applications.

Meets RoHS standards ensuring environmental compliance. Explore more high quality Edge Connectors and electronic components at EnvMart for your industrial and electronic assembly needs.
