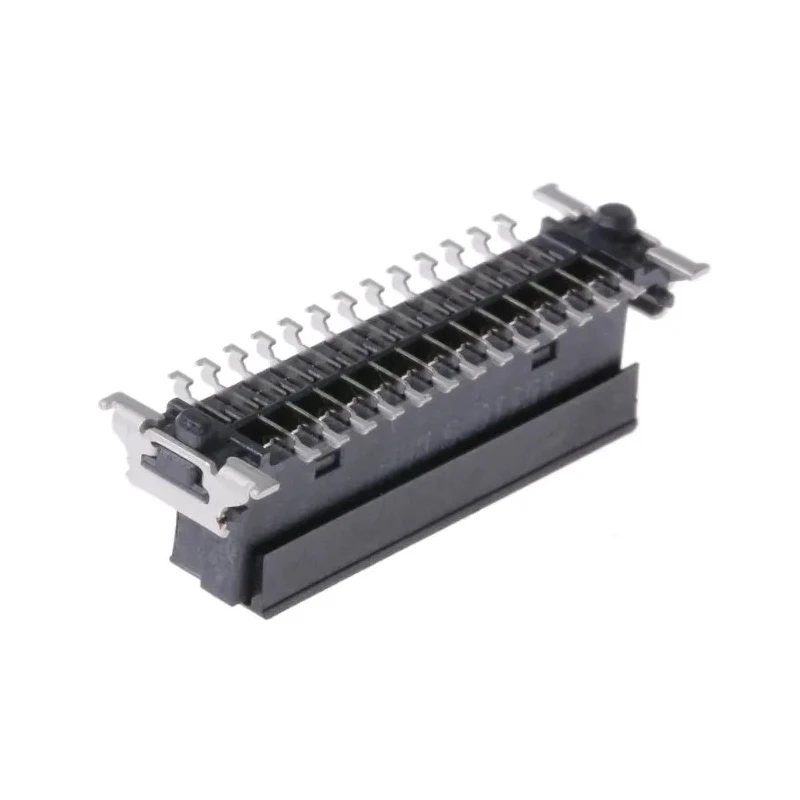

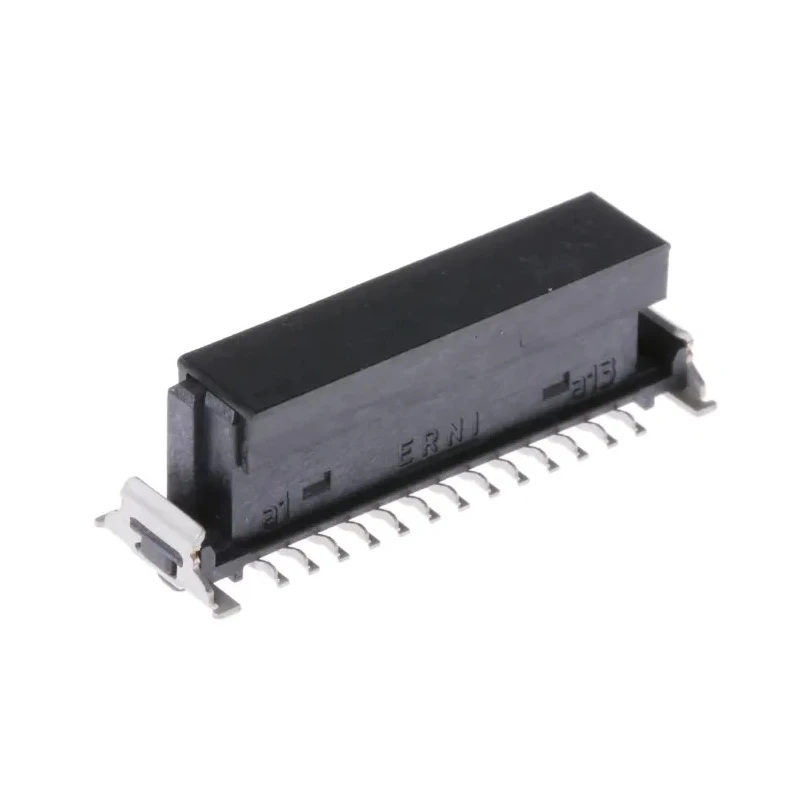

ERNI SMC Series Straight Surface PCB Socket 26-Contact 2 Row 1.27 mm Pitch Solder 154806 / 154806-E

ERNI 154806 / 154806-E series is a straight surface mount PCB socket connector with 26 female contacts arranged in 2 rows using a 1.27 mm pitch. This high-density SMC series connector is designed for board-to-board applications and provides reliable electrical performance with ultra-reliable dual beam copper alloy contacts plated in gold, ensuring low contact resistance and longevity for up to 500 mating cycles.

The connector features a liquid crystal polymer housing with polarization to ensure accurate mating and prevent misalignment during installation. Its surface mount configuration with straight orientation and solder termination makes it suitable for SMT assembly lines, supported by locating pegs and soldering brackets that secure the connector firmly on the PCB and absorb mechanical stress caused by vibration or shock.

This SMC series PCB socket supports a continuous data transmission speed of up to 3 Gbit/s and carries a current rating of 1.7 A. The operating temperature range from -55°C to 125°C accommodates diverse industrial and commercial environments, including electronics manufacturing, telecommunications, and instrumentation systems.

The design includes a stacking height of 3.85 mm and a row pitch of 1.5 mm, providing spacing options for complex PCB layouts. This connector series is suitable for fully automated board assembly processes, enhancing production efficiency and reliability.

Compact high-density design with 26 contacts. Dual beam contact design offers high reliability and low resistance. Supports data rates up to 3 Gbit/s for high-speed signal transmission. Locating pegs and soldering brackets ensure precise placement and strong PCB retention.

Wide operating temperature range from -55°C to 125°C for harsh environments. Surface mount, straight orientation, and solder termination optimized for SMT processes. Durable liquid crystal polymer housing material. Stacking height of 3.85 mm and 1.5 mm row pitch enable flexible PCB design.

Suitable for automated assembly and high-volume manufacturing.

This ERNI SMC series PCB Socket is an excellent choice for industrial, laboratory, and commercial electronic assembly applications requiring reliable board-to-board connectivity and high signal integrity. Discover more PCB connectors in the Electronics Components category at EnvMart.
