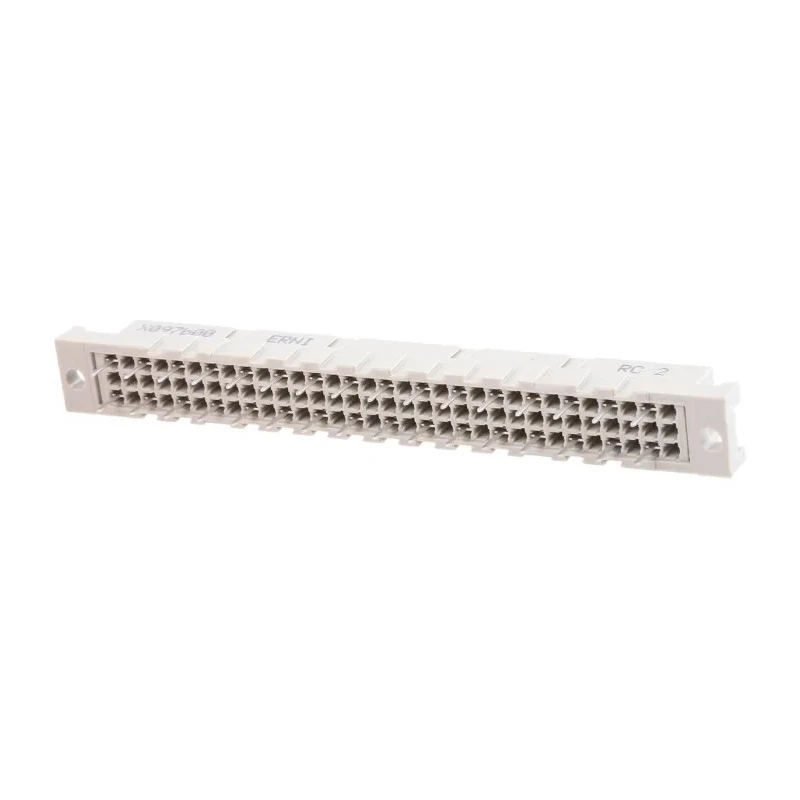

ERNI DIN 41612 32 Way 5.08 mm Pitch Type Through Hole Type C/2 Solder Class C2 2 Row Female Straight 244265 / 244265-E

Free Delivery in India | Lowest Global Shipping Charges

ERNI DIN 41612 32 Way 5.08 mm Pitch Type Through Hole Type C/2 Solder Class C2 2 Row Female Straight 244265 / 244265-E

Name: ERNI DIN 41612 32 Way 5.08 mm Pitch Type Through Hole Type C/2 Solder Class C2 2 Row Female Straight 244265 / 244265-E
Brand: ERNI
SKU: 138019
Price: 6.92 USD
Availability: InStock



Category DIN 41612 Connector Brand ERNI Condition New

Specifications

Country of Origin	Germany
Brand	ERNI
Orientation	Straight
Current	2A
Model	244265 / 244265-E
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	5.08mm
Contact Plating	Gold
Number of Contacts	32
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/C

Key Features

This connector has 32 contacts arranged in 2 rows.
Features a 5.08 mm pitch with Class C2 solder termination.
Designed for through hole mounting with a straight orientation.
Contact plating is gold for reliable conductivity.
Operates reliably from -55°C to 125°C temperature range.
Uses copper alloy contacts enclosed in polybutylene terephthalate housing.
Supports currents up to 2 A with maximum contact resistance of 20 milliohm.
Compatible with DIN 41612 standards and suitable for industrial backplane and rack connector applications.

Product Description

ERNI 244265 DIN 41612 32 Way 5.08 mm Pitch female connector is designed for robust electronic applications requiring reliable backplane and rack connections.

This connector features 32 gold-plated copper alloy contacts arranged in two rows with a 5.08 mm pitch spacing, ensuring precise alignment and excellent electrical performance. The solder termination type and through-hole mounting provide secure mechanical fixation in circuit boards.

Constructed with a polybutylene terephthalate housing, this connector withstands a wide operating temperature range from -55°C to 125°C, making it suitable for demanding industrial environments including communications equipment, automation systems, and instrumentation.

The Class C2 solder contact class ensures consistent electrical contact quality and durability, while the connector complies with DIN 41612 standards, facilitating integration into DIN backplane systems.

Typical uses include connecting plug-in cards to backplane wiring, linking stacked PCBs, and interfacing with peripheral devices via cable harnesses. Its straight orientation female connector and two-row design optimize space and installation flexibility.

This connector has 32 contacts arranged in 2 rows. Features a 5.08 mm pitch with Class C2 solder termination. Designed for through hole mounting with a straight orientation. Contact plating is gold for reliable conductivity.

Operates reliably from -55°C to 125°C temperature range. Uses copper alloy contacts enclosed in polybutylene terephthalate housing. Supports currents up to 2 A with maximum contact resistance of 20 milliohm. Compatible with DIN 41612 standards and suitable for industrial backplane and rack connector applications.

This product is manufactured in Germany and conforms to recognized industrial standards, ensuring high quality and long-term reliability. Explore more DIN 41612 Connectors and related electronic components in the EnvMart catalog for your industrial and commercial electronic design needs.
