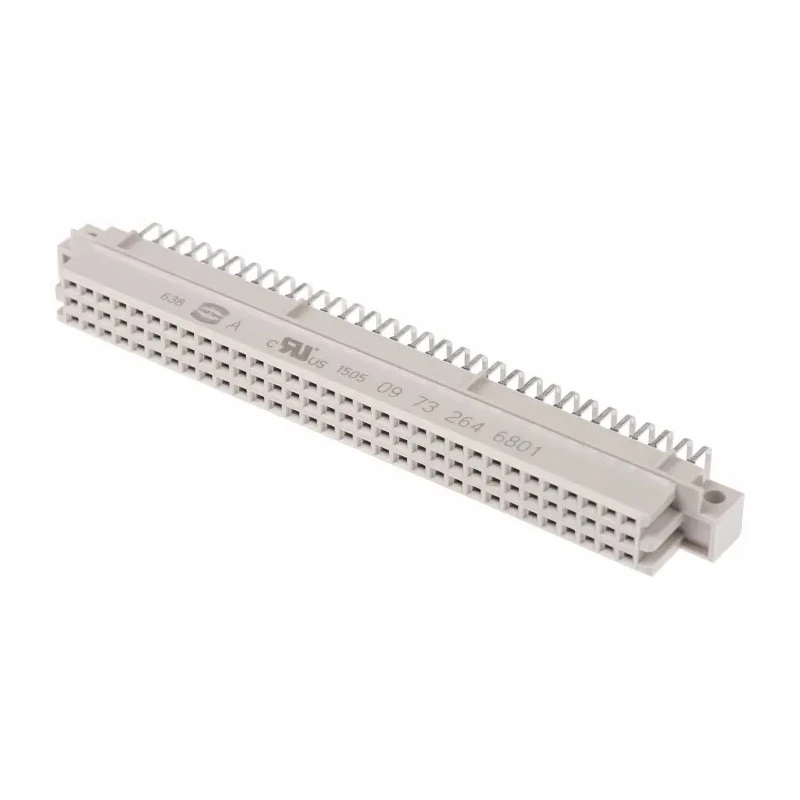

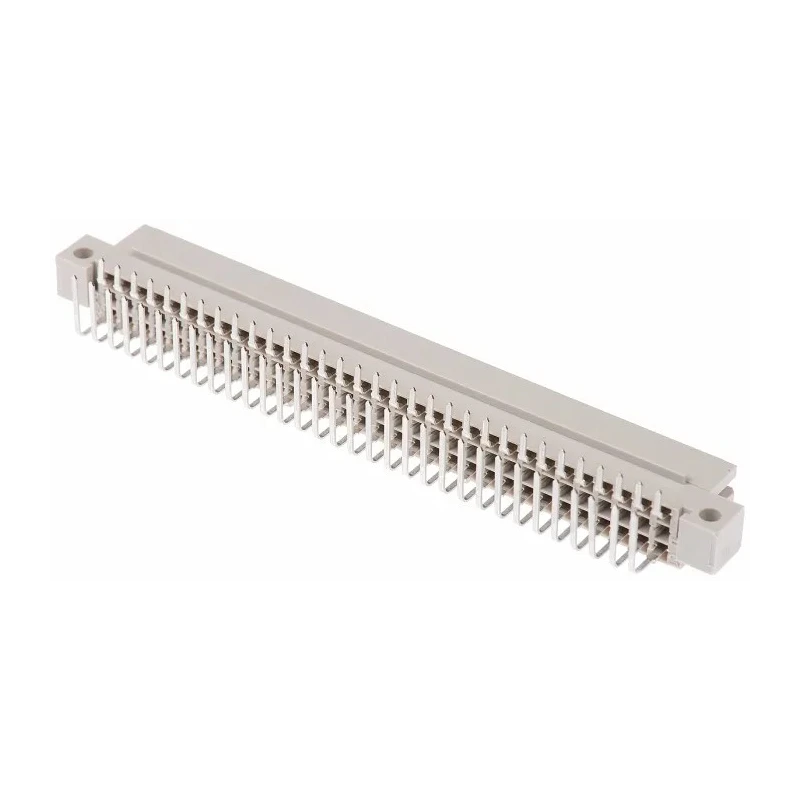

HARTING DIN 41612 64 Way Female Connector, Through Hole, C/2, 2.54mm, Right Angle, Solder Class C2 09732646801

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 64 Way Female Connector, Through Hole, C/2, 2.54mm, Right Angle, Solder Class C2 09732646801

Name: HARTING DIN 41612 64 Way Female Connector, Through Hole, C/2, 2.54mm, Right Angle, Solder Class C2 09732646801
Brand: HARTING
SKU: 86078
Price: 8.05 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Right Angle
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	64
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/C

Key Features

Features 64 contacts arranged in a 3-row C/2 configuration for high-density backplane applications.
Supports through-hole mounting on PCBs with a standard 2.54 mm pitch.
Right angle orientation and solder termination enhance assembly flexibility and secure integration.
Contact material is copper alloy with gold over nickel plating, providing reliable signal integrity.
Rated for 2A current and operates in class C2 with enhanced insulation resistance.
Operates over a wide temperature range from -55°C to 125°C for demanding environments.
Reversed type system ensures compatibility with B and C versions in 19-inch Eurocard racking.
Housing made from polybutylene terephthalate offering mechanical strength and durability.

Product Description

The HARTING 09732646801 is a DIN 41612 64-way female connector designed to provide reliable interconnections in industrial backplane and rack systems. Engineered to deliver excellent electrical contact performance, this right angle connector employs a 3-row, C/2 configuration for high-density PCB mounting.

This connector is tailored for through-hole PCB installation, utilizing a standard 2.54 mm pitch to ensure compatibility in modular Eurocard systems. Solder terminations contribute to robust, vibration-resistant mounting, making it ideal for demanding environments in electronics manufacturing and process automation.

The HARTING connector features 64 gold-over-nickel plated copper alloy contacts, providing both low contact resistance and a long contact life. Rated for a 2A current, it supports high signal integrity and reliability in complex electronic assemblies. The Class C2 insulation delivers additional protection, ensuring the connector withstands harsh environmental demands and extends service life.

The polybutylene terephthalate (PBT) housing material ensures excellent mechanical strength, electrical insulation, and temperature stability, allowing safe operation in temperatures ranging from -55°C to 125°C. The reversed type system enhances compatibility with other B and C version connectors, making this a versatile solution for expansion or replacement within established 19-inch Eurocard racking infrastructures.

Typical applications for the 09732646801 include use in industrial controls, telecommunication equipment, laboratory electronics, automation systems, and anywhere dense, multi-channel connection systems are required. The connector's right angle orientation allows for horizontal PCB mounting and efficient design in confined cabinet spaces.

With dependable build quality and adherence to DIN 41612 standards, HARTING's connector offers engineers and designers a trusted solution for interconnecting critical system components. For more options and accessories within this connector family, browse the DIN 41612 Connector category from HARTING and leading industrial brands on EnvMart.
