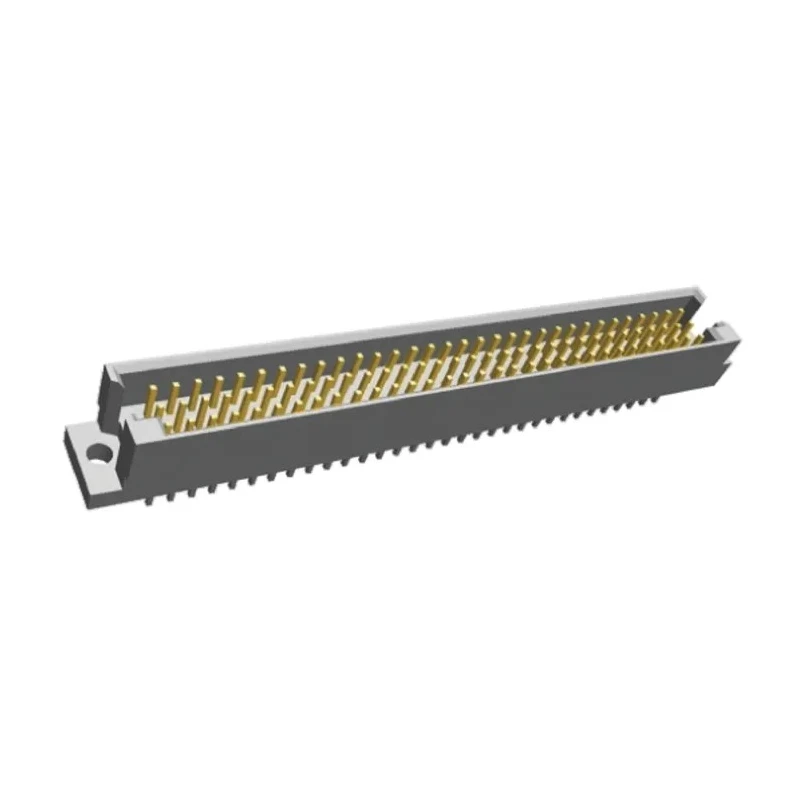

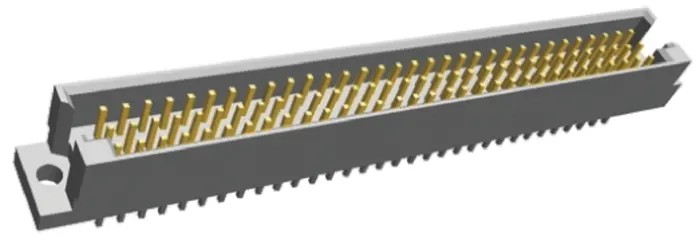

TE Connectivity Eurocard 96 Way 2.54 mm Pitch DIN 41612 Connector, Through Hole, Type C/2, Solder Class C2, 3 Row 650470-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Model | 650470-5 |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | Eurocard |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 96 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | A/B/C |
Key Features
- Meets DIN 41612 and IEC 60603-2 standards for quality and performance.
- Features a 2.54 mm pitch with 96 contacts arranged in 3 rows.
- Constructed with gold over nickel plating and brass contacts for durability.
- Through hole mount type with solder termination for secure PCB connection.
- Operates reliably between -55°C and 125°C in industrial environments.
- Designed for use in common bus systems including STE Bus, CIMBUS, and VME 64X.
- Housing made of flame retardant polyethylene terephthalate material.
- Polarization features prevent mismating to ensure connector safety.
Product Description
TE Connectivity 650470-5 Eurocard DIN 41612 Connector is a 96-way, 3-row male connector designed for backplane and rack connection applications. It complies with DIN 41612 and IEC 60603-2 standards, ensuring high signal integrity and electrical performance for demanding industrial environments.
The connector features a 2.54 mm contact pitch and gold over nickel plated brass contacts that provide robust electrical conductivity and corrosion resistance. The polyethylene terephthalate housing is flame retardant and includes polarization features that prevent incorrect mating, enhancing system reliability.
Designed for through-hole mounting, this connector supports solder termination with Class C2 solder class, making it suitable for secure PCB assembly. It operates efficiently over a wide temperature range from -55°C to 125°C, suitable for use in harsh industrial settings.
This connector is ideal for use in common bus systems such as STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X. Its applications extend to industrial control DCS systems, telecommunications equipment, high-speed trains, data centres, servers, backplanes, motherboards, and modular rack systems.
Meets DIN 41612 and IEC 60603-2 standards for quality and performance. Features a 2.54 mm pitch with 96 contacts arranged in 3 rows. Constructed with gold over nickel plating and brass contacts for durability. Through hole mount type with solder termination for secure PCB connection.
Operates reliably between -55°C and 125°C in industrial environments. Designed for use in common bus systems including STE Bus, CIMBUS, and VME 64X. Housing made of flame retardant polyethylene terephthalate material. Polarization features prevent mismating to ensure connector safety.
Supports current rating of 1.5A and voltage rating up to 250V AC. Class C2 solder class with selective contact loading for versatile applications.
This TE Connectivity Eurocard connector is a reliable solution for electronic and electrical industrial applications, providing durability and high performance. Explore more connectors and electronic components at EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector features a 2.54 mm pitch and has 96 contacts arranged in 3 rows.
It has a voltage rating of up to 250V AC and a current rating of 1.5A.
This model supports through-hole mounting with solder termination for secure PCB connection.
The housing is made of flame retardant polyethylene terephthalate, and the contacts are constructed from brass with gold over nickel plating.
It operates reliably in a temperature range from -55°C to 125°C.
It meets DIN 41612 and IEC 60603-2 standards, ensuring high signal integrity and performance.
The connector is designed with a straight orientation.
The polarization features prevent mismating, enhancing connector safety and reliability.
It is designed for use in common bus systems such as STE Bus, CIMBUS, and VME 64X, as well as in telecommunications equipment and industrial control systems.
The maximum contact resistance is 15mΩ.
This connector uses Class C2 solder class with selective contact loading.
The country of origin for this connector is India.
