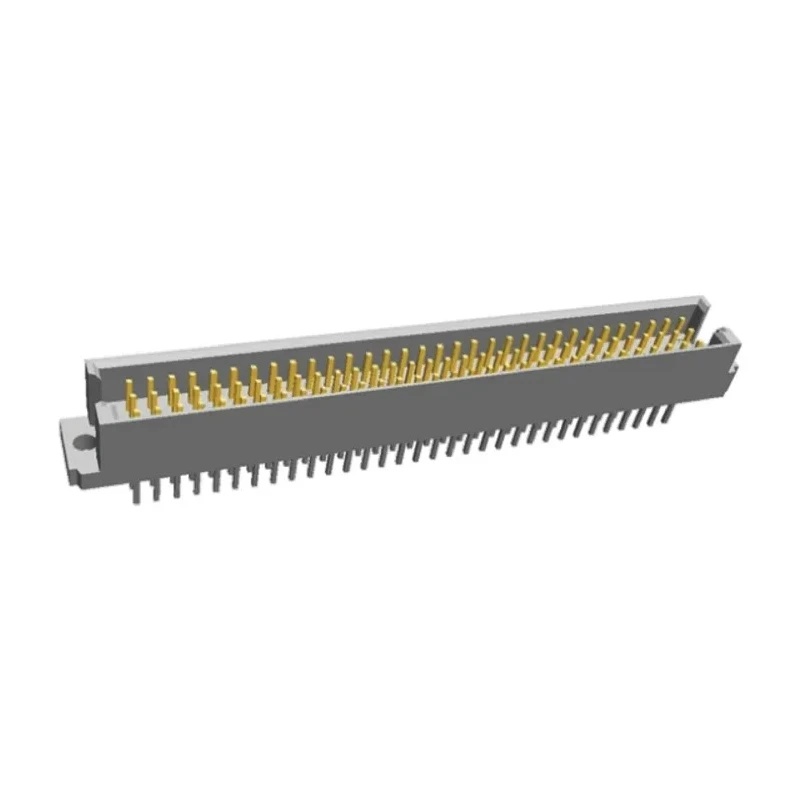

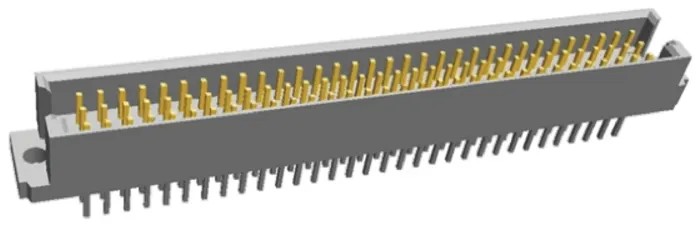

TE Connectivity Eurocard 96 Way 2.54 mm Pitch DIN 41612 Connector Through Hole Press-in Termination Class C2 3 Row 5650889-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polymer |
| Contact Material | Copper Alloy |
| Series | Eurocard |
| Termination Type | Press-in |
| Maximum Operating Temperature | 105°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 96 |
| Contact Gender | Male |
| Connector Gender | Male |
| Row Loading | A/B/C |
Key Features
- Connector meets DIN 41612 and IEC 60603-2 standards for high signal integrity.
- Features Class C2 press-in termination ensuring reliable mechanical and electrical connection.
- Constructed with copper alloy contacts plated with tin for corrosion resistance.
- Designed for use in high-speed train systems, industrial control, telecommunications, and modular rack assemblies.
- Housing made of flame retardant polymer material with polarizing features to prevent mismating.
- Supports operating temperatures from -55°C to 105°C.
- Connector orientation is straight with male contact gender in a 3-row layout.
- Suitable for Eurocard backplane and rack connectors applications requiring reliable bus connections.
Product Description
TE Connectivity 5650889-5 Eurocard DIN 41612 Connector is a high-quality 96-way, 2.54 mm pitch, three-row male connector designed for through-hole PCB mounting with press-in Class C2 termination.
This connector complies with DIN 41612 and IEC 60603-2 standards, offering excellent signal integrity and electrical performance. Its robust design features copper alloy contacts plated with tin for enhanced conductivity and corrosion resistance. The polymer housing is flame retardant and includes polarization keys to prevent incorrect mating.
Operating reliably within temperatures from -55°C to 105°C, this connector supports a voltage rating of 250V and current capacity of 3A per contact, making it suitable for demanding industrial and commercial electronic applications.
Applications include high-speed train control systems, industrial distributed control systems (DCS), telecommunications equipment, data centers, server backplanes, and modular rack assemblies. It is compatible with common bus systems such as STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
Connector meets DIN 41612 and IEC 60603-2 standards for high signal integrity. Features Class C2 press-in termination ensuring reliable mechanical and electrical connection. Constructed with copper alloy contacts plated with tin for corrosion resistance.
Designed for use in high-speed train systems, industrial control, telecommunications, and modular rack assemblies. Housing made of flame retardant polymer material with polarizing features to prevent mismating. Supports operating temperatures from -55°C to 105°C.
Rated voltage is 250V with a current carrying capacity of 3A per contact. Connector orientation is straight with male contact gender in a 3-row layout. Suitable for Eurocard backplane and rack connectors applications requiring reliable bus connections.
This product is part of the TE Connectivity Eurocard series, known for durability and precise contact systems. It is a reliable choice for engineers requiring robust backplane connectors for industrial, laboratory, and telecommunications environments.
Explore more connectors and electronic components with EnvMart's extensive catalog for your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a voltage rating of 250V.
It has a current capacity of 3A per contact.
The pitch of this connector is 2.54 mm.
This model supports operating temperatures from -55°C to 105°C.
It features a Class C2 press-in termination type for reliable connections.
The contacts are made of copper alloy and are plated with tin for corrosion resistance.
Yes, it is designed for use in high-speed train systems along with other applications like telecommunications and industrial control.
The connector orientation is straight, and it has a male contact gender.
This connector has 96 contacts arranged in a 3-row layout.
It complies with DIN 41612 and IEC 60603-2 standards, ensuring high signal integrity.
It is designed for through-hole mounting on PCBs.
The housing is made of flame retardant polymer material.
